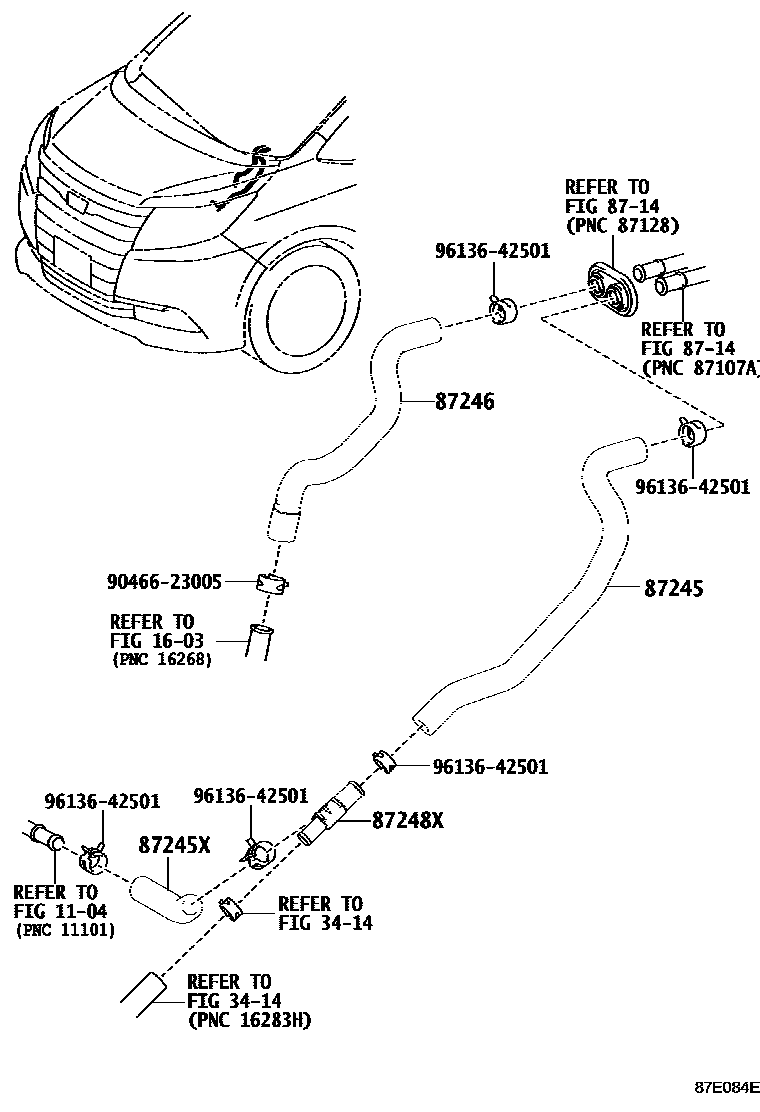

HEATING & AIR CONDITIONING - WATER PIPING

0001 1����,��(�����) 0002 1����,��(�����) 0003 1����,��(�����) 0004 1����,��(�����) 0005 1�� 0006 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-28A60supersedes 87245-28A30iZRR8#..CBU; ZRR8#..IV5201706

main87209-28A70supersedes 87245-28D90iZWR80..G,GI,V; ZWR80..SI,X,XI,ZS201402-201706

87245XHOSE, HEATER WATER

main87245-28D00iZRR8#; ZRR8#..07S..(SI,ZS)..CBU; ZRR8#..07S..(X,XI)..CBU; ZRR8#..CBU; ZRR80..07S..(SI,X,XI,ZS)..CBU; ZRR85..07S..(SI,ZS);ZRR80..07S..(SI,X,XI,ZS)..CBU201401-201706

87246HOSE, HEATER WATER, OUTLET

main87209-28A80iZWR80..SI,X,XI,ZS201402-201706

main87245-28C70iZRR8#..CBU201401-201706

87248XPIPE, HEATER WATER

main87248-33030iZRR8#201401-201706

9046623005

main90466-23005

9613642501

main96136-42501

10 parts on this diagram · 6 diagrams in section
