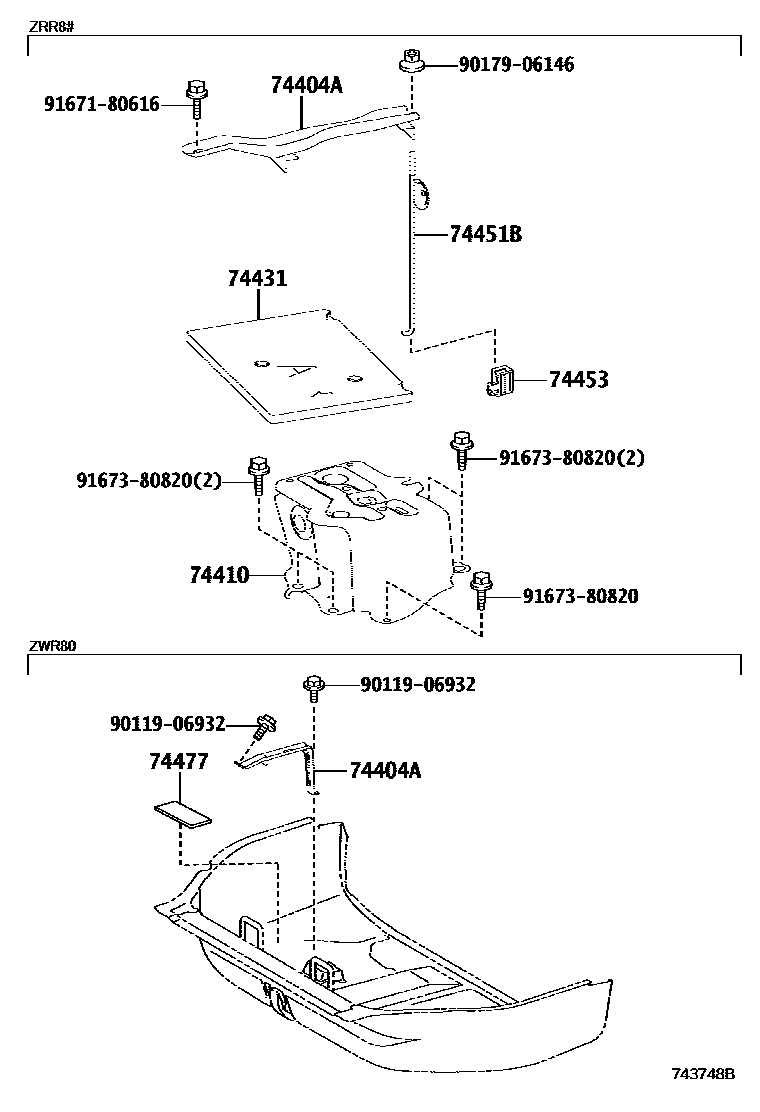

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-28230iZRR8#..NOAH..X;ZRR8#..G,GI,SI,ZS201706

main74405-28030iZWR80201402-201407

main74405-28031iZWR80201408-201608

main74405-28032iZWR80..(ESQIR,VOXY)..(V,X,XI)201706-202004

74410CARRIER ASSY, BATTERY

main74410-28020iZRR8#201401-201706

74431TRAY, BATTERY

main74431-42120iZRR8#201401-201706

74451BBOLT, BATTERY CLAMP

main74440-28010iZRR8#201401-201706

74453SUPPORT, BATTERY CARRIER

main74454-28030iZRR8#201401-201706

74477SHEET, BATTERY CARRIER

main74477-28070iZWR80..(ESQIR,VOXY)..(V,X,XI)201802-202004

9011906932

main90119-06932

9017906146

main90179-06146

9167180616

main91671-80616

9167380820

main91673-80820

10 parts on this diagram · 1 diagram in section
