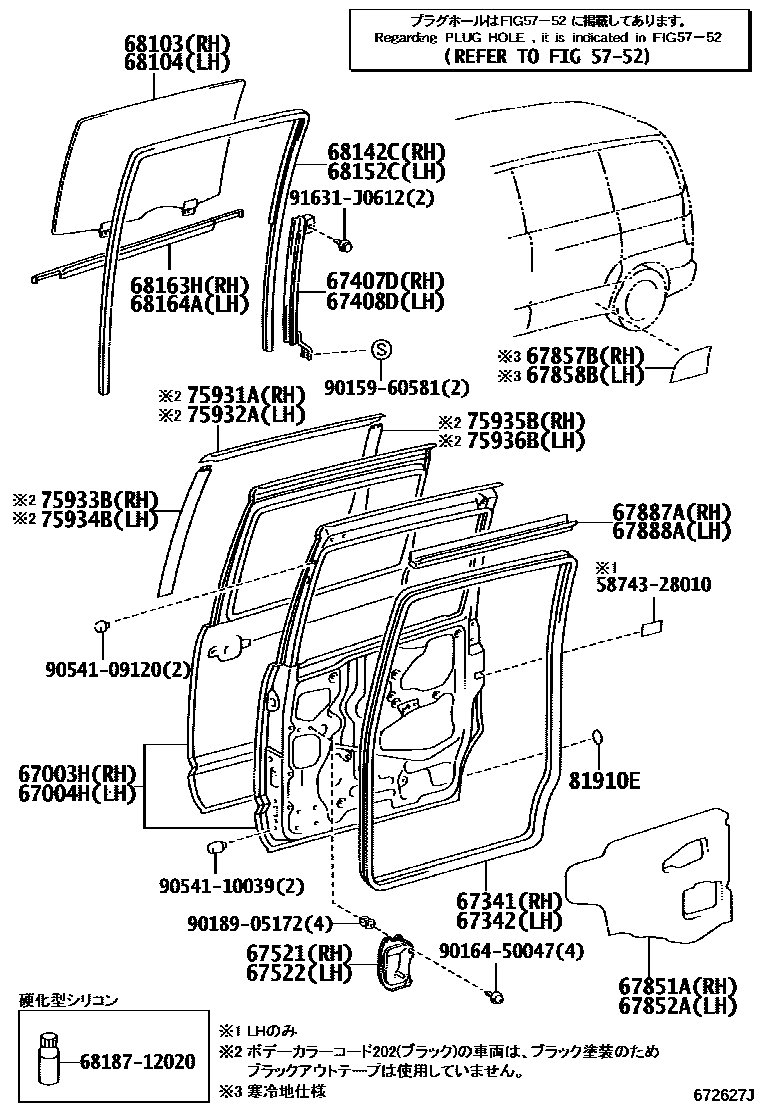

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

5752HOLE PLUG

→ Go to FIG 57-52

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-28340iAZR6#..X200111-200408

main67003-28350iAZR6#..S,Z200111-200408

main67003-28360iAZR6#..TRASX,X,YY200408

main67003-28370iAZR6#..S,Z200111-200408

main67003-28410iAZR6#..TRASX,X,YY200408

main67003-28420iAZR6#..S,Z200408

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-28360iAZR6#..X200111-200408

main67004-28370iAZR6#..S,Z200111-200408

main67004-28380iAZR6#..L,V,X200111-200408

main67004-28390iAZR6#..S,Z200408

main67004-28400iAZR6#..L,V,X200111-200408

main67004-28410iAZR6#..S,Z200408

67341WEATHERSTRIP, SLIDE DOOR, RH

main67871-28050-B0iAZR6#200111-200408

STONE,TRIM1#

main67871-28050-B1iAZR6#200408-200706

GRAY,TRIM1#

main67871-28050-E0iAZR6#..NOAH..(L,X)200111-200408

FAWN,TRIM4#

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-28100-B0iAZR6#200111-200408

STONE,TRIM1#

main67872-28100-B1iAZR6#200408-200706

GRAY,TRIM1#

main67872-28100-E0iAZR6#..NOAH..(L,X)200111-200408

FAWN,TRIM4#

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-28020iAZR6#200111-200408

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-28050iAZR6#200111-200408

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67521-28030iAZR6#200111-200408

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67522-28020iAZR6#200111-200408

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-28050iAZR6#200408

main67851-28080iAZR6#200408

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67851-28050iAZR6#200111-200408

main67852-28100iAZR6#200408

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-28020iAZR6#..L,V,X200111-200408

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-28020iAZR6#..L,V,X200111-200408

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-28060iAZR6#200111-200408

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-28070iAZR6#200111-200408

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-28140iAZR6#200408

main68103-28150iAZR6#..S,X,Z200111-200408

main68103-28180iAZR6#..08S..X200408

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-28170iAZR6#200408

main68104-28180iAZR6#..S,X,Z200111-200408

main68104-28200iAZR6#..08S..X200408

68142CRUN, REAR DOOR GLASS, RH

main68142-28070iAZR6#200111-200208

main68142-28072iAZR6#200208-200306

main68142-28073iAZR6#200408

68152CRUN, REAR DOOR GLASS, LH

main68152-28040iAZR6#200111-200208

main68152-28042iAZR6#200208-200306

main68152-28043iAZR6#200306-200408

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-28030iAZR6#200111-200408

main68163-28031iAZR6#200501

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-28030iAZR6#200111-200408

main68164-28031iAZR6#200501

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-28020iAZR6#200111-200408

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-28020iAZR6#200111-200408

75933BTAPE, BLACK OUT, OUTER FRONT RH

main75933-28020iAZR6#200111-200408

75934BTAPE, BLACK OUT, OUTER FRONT LH

main75934-28020iAZR6#200111-200408

75935BTAPE, BLACK OUT, OUTER REAR RH

main75935-28020iAZR6#200111-200408

75936BTAPE, BLACK OUT, OUTER REAR LH

main75936-28020iAZR6#200111-200408

81910EREFLECTOR ASSY, REFLEX

main81910-21030iAZR6#200111-200408

5874328010PROTECTER, SLIDE DOOR PANEL, RH

main58743-28010

6818712020WEATHERSTRIP, SIDE WINDOW GLASS

main68187-12020

9015960581

main90159-60581

9016450047

main90164-50047

9018905172

main90189-05172

9054109120

main90541-09120

9054110039

main90541-10039

91631J0612

main91631-J0612

36 parts on this diagram · 3 diagrams in section
