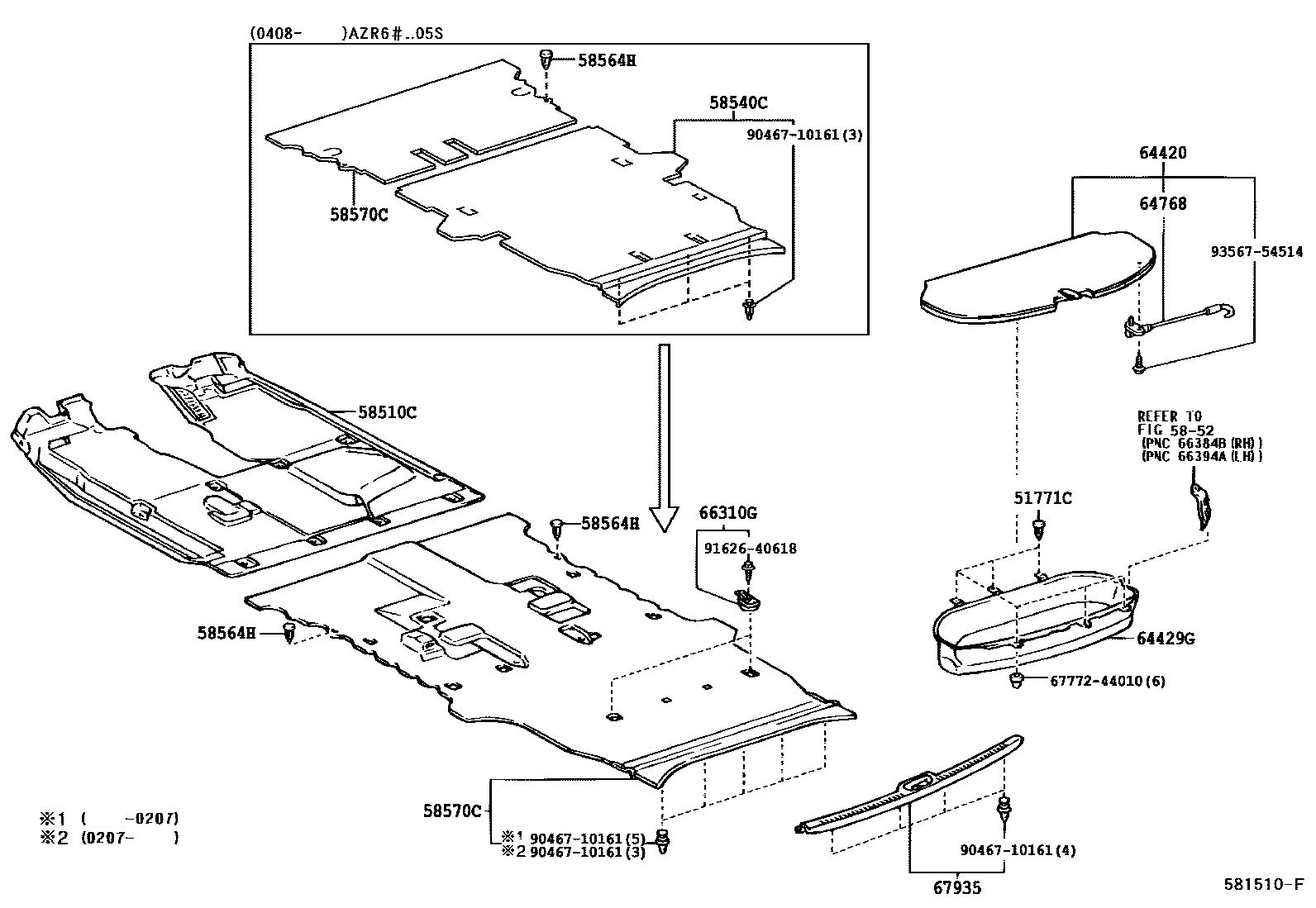

FLOOR MAT & SILENCER PAD

51771CCLIP(FOR STEP PLATE)

main90467-10034-C0×6iAZR6#..NOAH..(L,X); AZR6#..S;AZR6#..VOXY200307-200408

BLACK,TRIM19; BLACK,TRIM19,41

main90467-10034-N8×6iAZR6#..NOAH..(L,X); AZR6#..S;AZR6#..VOXY200307-200408

CREAM YELLOW,TRIM19; CREAM YELLOW,TRIM19,41

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-28C40-B0iAZR6#..L,V,X200312-200408

main58510-28C40-E0iAZR6#..NOAH..08S..X200408-200706

main58510-28C50-B0iAZR6#..08S..X200408-200706

main58510-28C50-E0iAZR6#..NOAH..X200312-200408

main58510-28C60-B0iAZR6#200508-200706

main58510-28C60-E0iAZR6#..NOAH..X200508-200706

main58510-28C70-B0iAZR6#200408-200508

main58510-28C70-E0iAZR6#..NOAH..X200408-200508

main58510-28C80-B0iAZR6#..05S,08S200508-200706

main58510-28C80-E0iAZR6#..NOAH..08S..X200508-200706

main58510-28C90-B0iAZR6#..05S,08S200408-200508

main58510-28C90-E0iAZR6#..NOAH..08S..X200408-200508

main58510-2X220-B1iAZR6#200408-200706

main58510-2X220-E1iAZR6#..NOAH..(L,X)200111-200408

main58510-2X230-B1iAZR6#200111-200408

main58510-2X230-E1iAZR6#..NOAH..(L,X)200111-200408

main58510-2X240-B1iAZR6#..S,X,Z200111-200408

DARK GRAY,TRIM1#

main58510-2X240-E1iAZR6#..NOAH..08S..X200408-200706

SANDALWOOD,TRIM4#

main58510-2X250-B1iAZR6#..S,X,Z200111-200408

main58510-2X250-E1iAZR6#..NOAH..X200111-200408

main58510-2X270-B1iAZR6#..L,V,X200111-200312

main58510-2X270-E1iAZR6#..NOAH..(L,X)200111-200312

main58510-2X280-B1iAZR6#..X200111-200312

main58510-2X280-E1iAZR6#..NOAH..X200111-200312

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

58540CMAT ASSY, FLOOR, REAR

main58540-28B00-B1iAZR6#..05S200408-200610

DK.GRAY,TRIM1#

main58540-28B01-B1iAZR6#..05S200611-200706

DK.GRAY,TRIM1#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-10034-C0×2iAZR6#..NOAH..(L,X); AZR6#..S;AZR6#..VOXY200307-200408

BLACK,TRIM19; BLACK,TRIM19,41

main90467-10034-N8×2iAZR6#..NOAH..(L,X); AZR6#..S;AZR6#..VOXY200111-200307

CREAM YELLOW,TRIM1#; CREAM YELLOW,TRIM1#,4#

58570CCARPET ASSY, REAR FLOOR

main58540-28A00-B0iAZR6#..L,V,X200312-200408

main58540-28A00-E0iAZR6#..NOAH..(L,X)200312-200408

main58540-28A10-B0iAZR6#..L,V,X200312-200408

main58540-28A10-E0iAZR6#..NOAH..(L,X)200312-200408

main58540-28A20-B0iAZR6#..X200312-200408

main58540-28A20-E0iAZR6#..NOAH..X200312-200408

main58540-28A30-B0iAZR6#..X200312-200408

main58540-28A30-E0iAZR6#..NOAH..X200312-200408

main58540-28A50-B0iAZR6#..08S200408-200610

main58540-28A50-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28A51-B0iAZR6#..08S200611-200706

main58540-28A51-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28A60-B0iAZR6#..08S200408-200610

main58540-28A60-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28A61-B0iAZR6#..08S200611-200706

main58540-28A61-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28A70-B0iAZR6#..08S200408-200610

main58540-28A70-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28A71-B0iAZR6#..08S200611-200706

main58540-28A71-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28A80-B0iAZR6#..08S200408-200610

main58540-28A80-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28A81-B0iAZR6#..08S200611-200706

main58540-28A81-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28A90-B0iAZR6#..05S200408-200706

DARK GRAY,TRIM1#

main58540-28B10-B0iAZR6#..07S; AZR6#..S,Z200408-200610

main58540-28B10-E0iAZR6#..NOAH..07S200408-200610

SANDAL.WOOD,TRIM4#

main58540-28B11-B0iAZR6#..07S; AZR6#..S,Z200611-200706

main58540-28B11-E0iAZR6#..NOAH..07S200611-200706

FAWN,TRIM4#

main58540-28B20-B0iAZR6#..08S..X200408-200610

main58540-28B20-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28B21-B0iAZR6#..08S..X200611-200706

main58540-28B21-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28B30-B0iAZR6#..08S..X200408-200610

main58540-28B30-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28B31-B0iAZR6#..08S..X200611-200706

main58540-28B31-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28B40-B0iAZR6#..08S..X200408-200610

main58540-28B40-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28B41-B0iAZR6#..08S..X200611-200706

main58540-28B41-E0iAZR6#..NOAH..08S..X200611-200706

main58540-28B50-B0iAZR6#..08S..X200408-200610

main58540-28B50-E0iAZR6#..NOAH..08S..X200408-200610

main58540-28B51-B0iAZR6#..08S..X200611-200706

main58540-28B51-E0iAZR6#..NOAH..08S..X200611-200706

main58540-2J660-B0iAZR6#200111-200408

main58540-2J660-E0iAZR6#..NOAH..(L,X)200111-200408

main58540-2J680-B0iAZR6#200111-200408

main58540-2J680-E0iAZR6#..NOAH..(L,X)200111-200408

main58540-2J690-B0iAZR6#..S,X,Z200111-200408

main58540-2J690-E0iAZR6#..NOAH..X200111-200408

main58540-2J700-B0iAZR6#..S,X,Z200111-200408

main58540-2J700-E0iAZR6#..NOAH..X200111-200408

main58540-2J720-B0iAZR6#..L,V,X200111-200312

main58540-2J720-E0iAZR6#..NOAH..(L,X)200111-200312

main58540-2J800-B0iAZR6#..L,V,X200312-200408

main58540-2J800-E0iAZR6#..NOAH..(L,X)200312-200408

main58540-2J810-B0iAZR6#..L,V,X200111-200312

main58540-2J810-E0iAZR6#..NOAH..(L,X)200111-200312

main58540-2J820-B0iAZR6#..L,V,X200111-200312

main58540-2J820-E0iAZR6#..NOAH..(L,X)200111-200312

main58540-2J830-B0iAZR6#..X200111-200312

main58540-2J830-E0iAZR6#..NOAH..X200111-200312

main58540-2J840-B0iAZR6#..X200111-200312

main58540-2J840-E0iAZR6#..NOAH..X200111-200312

64420LID, LUGGAGE ROOM BOX

main64420-28020-C0iAZR6#200111-200408

BLACK,TRIM1#

main64420-28020-E1iAZR6#..NOAH..X200408-200706

OAK,TRIM4#

main64420-28030-C0iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

64429GBOX, LUGGAGE COMPARTMENT TRIM

main64429-28010iAZR60200408

main64429-28020iAZR65200111-200408

64768STOPPER, JACK COVER

main64768-28010iAZR6#200111-200408

66310GHOOK ASSY, ROPE

main66310-28060-B0×2iAZR6#200111-200408

DK.GRAY,TRIM1#

main66310-28060-E0×2iAZR6#..NOAH..(L,X)200111-200408

SANDAL WOOD,TRIM4#

67935PLATE, BACK DOOR SCUFF

main67935-28060-B0iAZR6#200111-200408

STONE,TRIM1#

main67935-28060-B1iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

main67935-28060-B2iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main67935-28060-E0iAZR6#..NOAH..(L,X)200111-200408

FAWN,TRIM4#

6777244010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-44010

9046710161

main90467-10161

9162640618

main91626-40618

9356754514

main93567-54514

15 parts on this diagram · 1 diagram in section
