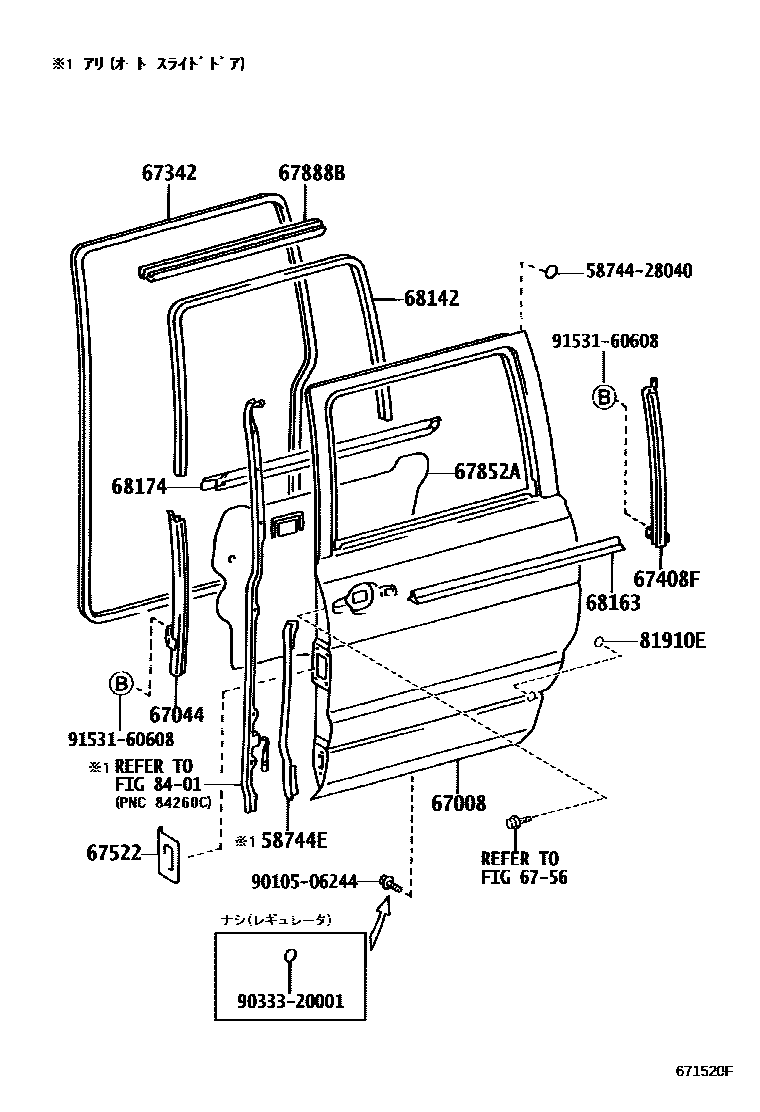

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������� 0003 1������

58744EPROTECTOR, SLIDE DOOR PANEL, LH

main58744-28020iCR40,50,SR40,50..E,Q,S,V199812-200111

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-28010iCR41,51,KR4#..(05S,06S)..CBU199611-199812

main67004-28150iCR40,50,SR40,50..B,D199812-200111

main67004-28160iCR40,50,SR40,50..E,V199812-200111

main67004-28170iCR40,50,SR40,50..E..CBU; CR40,50,SR40,50..Q199801-199812

main67004-28180iCR41,51,KR41..03S..CBU199611-199812

main67004-28190iCR42,52,KR42,52..06S..IV5199812-200708

main67004-28200iCR41,51..03S..IV5199611-199812

main67004-28210iCR40,50,SR40,50..E,Q,V199812-200111

main67004-28220iCR40,50,SR40,50..S199812-200111

main67004-28230iCR40,50,SR40,50..S199812-200111

main67004-28240iCR40,50,SR40,50..S199812-200111

main67004-28250iCR42,52,KR42,52..03S..CBU199812-200708

main67004-28260iCR42,52..03S..IV5199812-200407

67044FRAME SUB-ASSY, REAR DOOR WINDOW, LH

main67044-28040iCR40,50,SR40,50199610-199611

main67044-28050iCR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S199611-199709

main67044-28060iCR40,50,SR40,50199812-200111

main67044-28070iCR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S199709-199711

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-28050iCR4#,5#,KR42,SR40,50..B,D,N199812-200009

main67872-28060-B0iCR40,50,SR40,50..S,V199812-200009

MOON MIST,TRIM1#

main67872-28060-B1iCR40,50,SR40,50..E,Q,V199610-199702

MOON MIST,TRIM1#

main67872-28060-G0iCR40,50,SR40,50..E,Q199812-200009

SAGE,TRIM6#

main67872-28060-G1iCR40,50,SR40,50..E,Q199610-199702

SAGE,TRIM6#

main67872-28080iCR40,50,SR40,50..B,D200009-200111

main67872-28090-B0iCR40,50,SR40,50..S,V200009-200111

MOON MIST,TRIM1#

main67872-28090-G0iCR40,50,SR40,50..E,Q200009-200111

SAGE,TRIM6#

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-28010iCR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S199610-199706

main67408-28020iCR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S199706-199709

main67408-28030iCR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S199709-199812

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67521-28010iCR42,52..03S199812-200407

6756REAR DOOR LOCK & HANDLE

→ Go to FIG 67-56

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-28040iCR40,50,SR40,50..07S,08S199812-200111

main67852-28050iSR40,50..B199812-200111

main67852-28060iCR40,50,SR40,50..E,Q,S,V199812-200111

67888BWEATHERSTRIP, SLIDE DOOR, NO.2 LH

main67888-28030iCR40,50,SR40,50199812-200111

68142RUN, REAR DOOR GLASS

main68142-28050iCR41,51,KR42..CBU;CR40,50,KR41,SR40,50199610-199812

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68164-28010iCR42,52..CBU199812-200407

68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-28010iCR41,51,KR42..CBU;CR40,50,KR41,SR40,50199610-199812

main68174-28011iKR42,52..CBU200007

81910EREFLECTOR ASSY, REFLEX

main81910-21030×2iKR42,52..4D; KR42,52..5D200611

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5874428040PROTECTER, SLIDE DOOR PANEL, LH

main58744-28040

9010506244

main90105-06244

9033320001

main90333-20001

9153160608

main91531-60608

18 parts on this diagram · 3 diagrams in section
