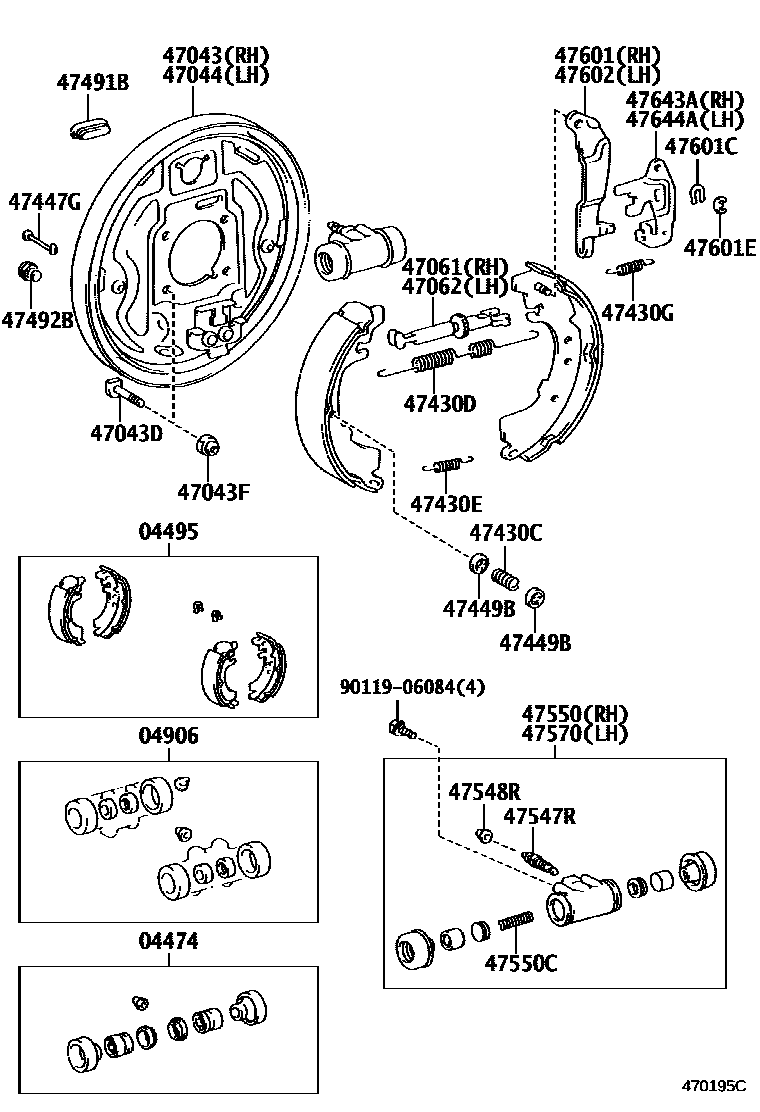

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-22030iCR4#,KR4#,SR40199610-200208

main04474-22040iCR42,KR42200208

main04474-28030iCR5#,SR50199610-200407

main04474-28040iKR52200412

04495SHOE KIT, REAR BRAKE

main04495-28100iCR4#,KR4#,SR40199610-199801

main04495-28111iCR5#,SR50199610-199707

main04495-28120iCR5#,SR50199707-199812

main04495-28120iCR5#,KR52,SR50199812

main04495-28160iCR42,KR42200111

main04495-44010iCR4#,KR4#,SR40199801-200111

04906CUP KIT, REAR WHEEL CYLINDER

main04906-22040iCR4#,KR4#,SR40199610-199812

main04906-28030iCR5#,SR50199610-200407

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28100iCR5#,SR50199610-200407

main47043-28120iCR40,SR40199610-200407

main47043-28130iCR42..CBU..SJL199611-200407

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iCR4#,5#,KR4#,SR40,50199610-200407

main42184-28030iCR42,52,KR42199812-200208

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150iKR42,52199610-200407

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28100iKR52199610-200407

main47044-28120iCR40,SR40199610-200407

main47044-28130iCR42..CBU..SJL199611-200407

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-43010iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main47062-30030iKR52199610-200407

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iKR52199610-200407

main47062-43010iKR42199610-200407

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iCR4#,KR4#,SR40199610-199712

main90501-20604iCR4#,5#,KR4#,SR40,50199712-200407

main90501-20756iCR5#,SR50199610-200407

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iCR52199610-200407

main90506-29008iCR40,SR40199610-200407

main90506-29009iCR42..06S..MTM..IV5199610-200407

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076iCR4#,5#,KR4#,SR40,50199610-200407

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iCR42..06S..MTM..IV5199610-200407

main90506-12480iCR52199610-200407

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iKR42199610-200407

main47447-30020iCR5#,SR50199610-200407

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iCR4#,5#,KR4#,SR40,50199610-200407

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011iCR4#,5#,KR4#,SR40,50199610-200407

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iCR4#,5#,KR4#,SR40,50199610-200407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iCR5#,KR52,SR50199812-200708

main47547-26010iCR40,SR40;CR42,KR42..V1;KR42..IV5..SJL199610-200708

main47547-27020iCR5#,SR50199610-199812

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iCR4#,5#,KR4#,SR40,50199610-200708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-22100iCR40,SR40199610-200407

main47550-28070iCR5#,SR50199610-200407

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60011iCR5#,SR50199610-200708

main90501-09079iCR4#,KR4#,SR40199610-200708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-22100iCR40,SR40199610-200407

main47550-28070iKR52199610-200407

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iCR5#,SR50199610-200407

main47611-43010iCR42..06S..MTM..IV5199610-200407

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iKR42,52199610-200407

main90213-07010iKR52199610-200407

47601ERING, E(FOR REAR BRAKE)

main96160-00500iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iCR52199610-200407

main47612-43010iKR42199610-200407

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iCR42..06S..MTM..IV5199610-200407

main47644-30010iCR52199610-200407

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iCR50,SR50199610-200407

main47644-33010iCR42..06S..MTM..IV5199610-200407

9011906084

main90119-06084

29 parts on this diagram · 2 diagrams in section
