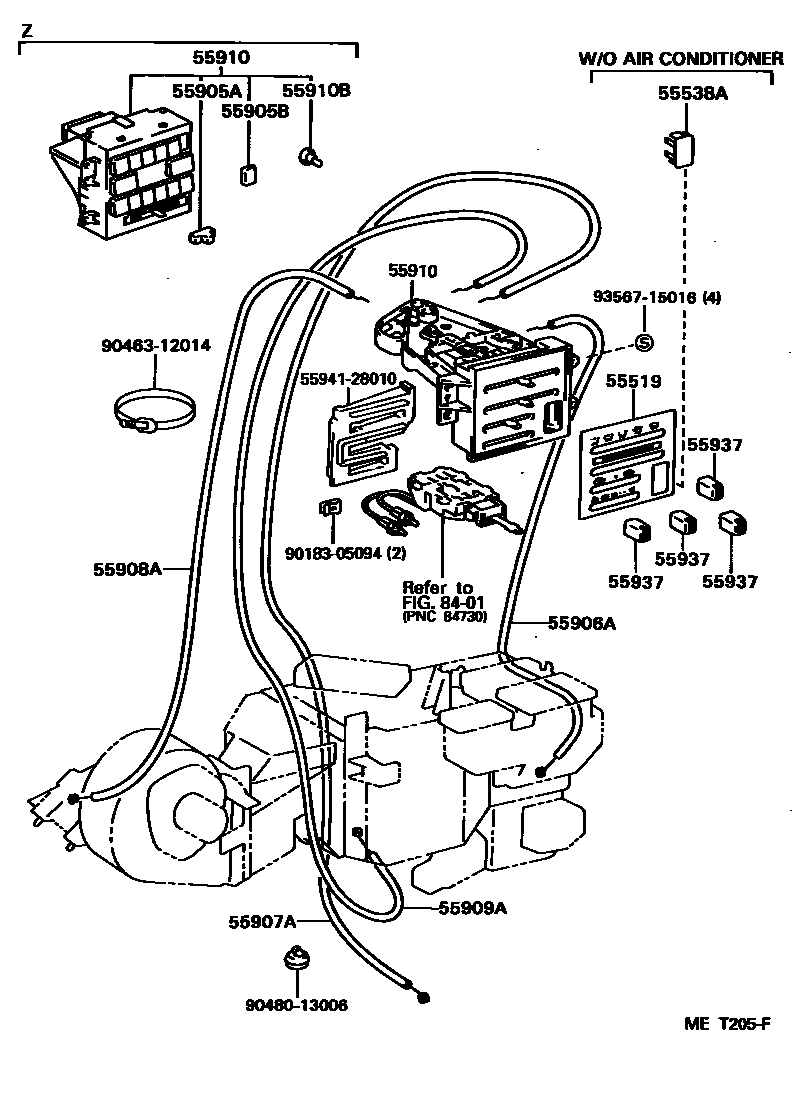

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT DUCT 0004 1REAR DUCT 0005 1REAR DUCT 0006 1REAR DUCT (W/AIR CONDITIONER)0007 1SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-28110iCR21,22,30,31,YR21,30..Z199201-199610

main55519-28180iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

55538ACOVER, COOLER SWITCH HOLE

main55538-28010iCR2#,3#,KR27,YR2#..B,D,F,G,N199201-199610

55905AKNOB, HEATER CONTROL

main55905-60140iCR21,22,30,31,YR21,30..Z199201-199610

55905BKNOB, HEATER CONTROL, NO.2

main55905-28030iCR21,22,30,31,YR21,30..Z199201-199610

main55905-60020iCR21,22,30,31,YR21,30..Z199201-199610

main55905-60030iCR21,22,30,31,YR21,30..Z199201-199610

FACE

main55905-60040iCR21,22,30,31,YR21,30..Z199201-199610

FACE & FOOT

main55905-60050iCR21,22,30,31,YR21,30..Z199201-199610

FOOT

main55905-60060iCR21,22,30,31,YR21,30..Z199201-199610

FOOT & DEF

main55905-60070iCR21,22,30,31,YR21,30..Z199201-199610

DEF

main55905-60080iCR21,22,30,31,YR21,30..Z199201-199610

main55905-60090iCR21,22,30,31,YR21,30..Z199201-199610

LO

main55905-60100iCR21,22,30,31,YR21,30..Z199201-199610

MID

main55905-60110iCR21,22,30,31,YR21,30..Z199201-199610

HI

main55905-60120iCR21,22,30,31,YR21,30..Z199201-199610

INTAKE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-28110iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199303

main55906-28150iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199303-199308

main55906-28200iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199308-199610

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-28020iCR21,22,30,31,YR21,30..Z199201-199610

main55907-28050iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-28050iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-28030iCR21,22,30,31,YR21,30..Z199201-199610

main55909-28070iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-28150iCR21,22,30,31,YR21,30..Z199201-199610

main55910-28100iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199201-199303

main55910-28180iCR2#,3#,KR27,YR2#,30..B,D,E,F,N,Q199303-199308

main55910-28270iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199308-199610

55910BBULB, HEATER CONTROL

main81930-60020×3iCR21,22,30,31,YR21,30..Z199201-199610

55937KNOB, HEATER CONTROL LEVER

main55905-89115iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

5594128010BRACKET, HEATER CONTROL

main55941-28010

9018305094

main90183-05094

9046312014

main90463-12014

9048013006

main90480-13006

9356715016

main93567-15016

17 parts on this diagram · 7 diagrams in section
