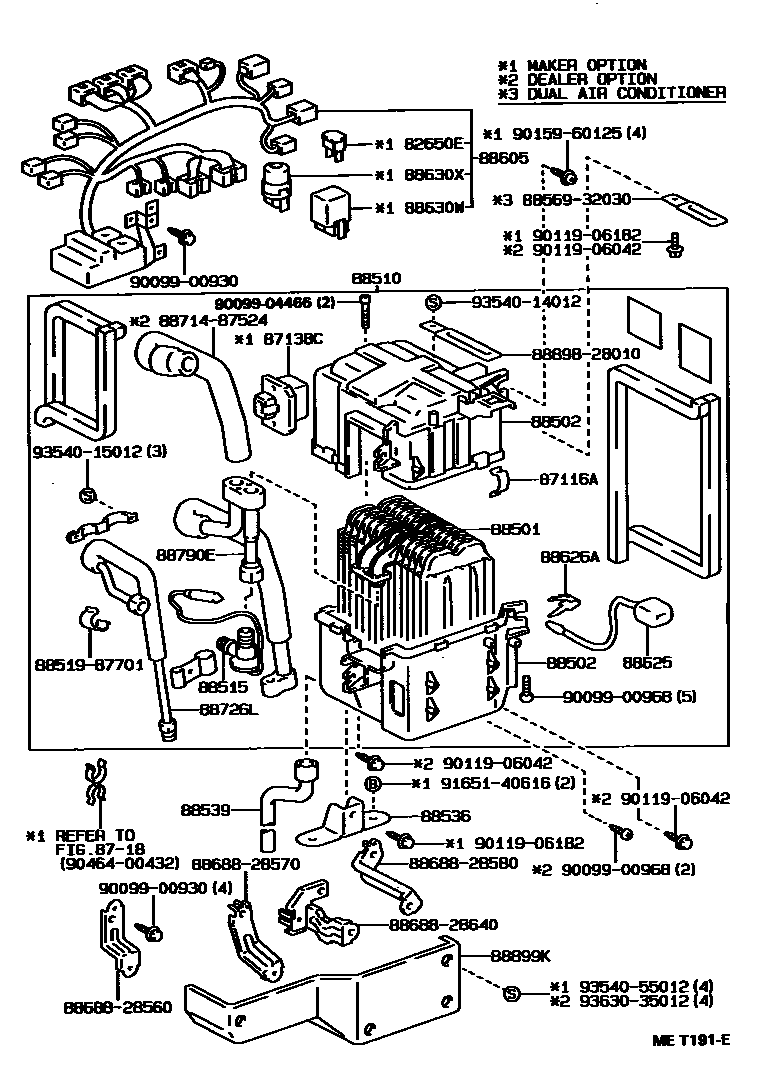

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT (UNIT);MANUAL 0002 1FRONT (UNIT);AUTO 0003 1FRONT(WIRING & RELAY);MAKER O0004 1FRONT(WIRING & RELAY);DEALER 0005 1FRONT(WIRING & RELAY);MAKER O0006 1FRONT(WIRING & RELAY);AUTO 0007 1FRONT(WIRING & RELAY);DEALER 0008 1FRONT(WIRING & RELAY);DEALER 0011 1REAR 0012 1COOL BOX 0013 1COOL BOX

82650EBREAKER ASSY, WIRING CIRCUIT

main82650-12020iCR36;CR29..MRF;CR37..MTM;CR21,22,28,31,YR21..4D; CR37..ATM;CR30,37,YR30..4D199201-199610

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×9iCR21,30,YR21..D; CR28,37..4D199201-199309

87138CRESISTOR, BLOWER

main87138-28050iCR21,22,30,31,YR21,30199201-199610

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28220iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199410

main88501-28221iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199410-199610

88502CASE SUB-ASSY, COOLING UNIT

main88502-28310iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30199201-199610

UPPER

main88502-28320iCR29,38..HRF199309-199610

LOWER

88510UNIT ASSY, COOLER

main88510-28270iCR21,30,YR21,30..Z199201-199309

main88510-28280iCR21,30,YR21,30..D,E,Q199201-199309

main88510-28350iCR21,30,YR21..D; CR27,28,36,37,KR27,YR25199201-199309

main88510-28490iCR22,31,YR21,30..Z199309-199610

main88510-28500iCR22,31,YR21,30..D,E,G,Q199309-199610

main88510-28540iCR22,31,YR21..D,G; CR29,38..HRF; CR29..MRF;CR27,36,KR27,YR25199309-199610

88515VALVE, COOLER EXPANSION

main88515-28030iCR21,28,30,37,YR21,30..4D199201-199309

main88515-28100iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199610

main88515-60030iCR22,31,YR21,30199309-199610

main88515-87002iCR2#,3#,KR27,YR2#,30199201-199309

88536BRACKET, COOLING UNIT, NO.1

main88536-28020iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30199201-199610

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-87010iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30199201-199610

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-28460iYR21..D,E,Q199201-199309

main88605-28470iYR21..Z199201-199309

main88605-28490iCR21..D,E,Q199201-199309

main88605-28520iCR21..Z199201-199309

main88605-28610iYR30..E,Q199201-199309

main88605-28620iYR30..Z199201-199309

main88605-28640iCR30..MTM199201-199309

main88605-28650iCR30..ATM..(E,Q)199201-199309

main88605-28660iCR30..Z199201-199309

main88605-28770iYR21..MRF199201-199309

main88605-28800iCR36199201-199610

main88605-28810iCR21,28..(B,D)..4D; CR28..5D199201-199309

main88605-28820iCR30,37..(B,D)..4D; CR37..MTM..5D199201-199309

main88605-28850iYR21..Z199201-199309

main88605-28860iCR21..Z199201-199309

main88605-28870iYR21..D,E,Q199201-199309

main88605-28880iCR21..D,E,Q199201-199309

main88605-28890iYR30..Z199201-199309

main88605-2J010iCR30..Z199201-199309

main88605-2J020iYR30..E,Q199201-199309

main88605-2J030iCR30..ATM..(E,Q)199201-199309

main88605-2J040iCR30..MTM199201-199309

main88605-2J100iKR27199201-199610

main88605-2J110iYR25199201-199610

main88605-2J120iCR27199201-199408

main88605-2J130iCR30,37..(B,D)..4D199201-199309

main88605-2J140iYR21..MRF199201-199309

main88605-2J150iCR21,28..(B,D)..4D199201-199309

main88605-2J160iCR37..ATM199201-199309

main88605-2J490iYR21..Z199309-199610

main88605-2J510iCR22..Z199309-199610

main88605-2J520iCR22..Z199309-199610

main88605-2J530iYR21..D,E,Q199309-199610

main88605-2J540iYR21..D,E,Q199309-199610

main88605-2J550iCR22..D,E,G,Q199309-199610

main88605-2J560iCR22..D,E,G,Q199309-199610

main88605-2J570iYR30..Z199309-199610

main88605-2J580iYR30..Z199309-199610

main88605-2J590iCR31..Z199309-199610

main88605-2J600iCR31..Z199309-199610

main88605-2J610iYR30..E,Q199309-199610

main88605-2J620iYR30..E,Q199309-199610

main88605-2J630iCR31..ATM..(E,G,Q)199309-199610

main88605-2J640iCR31..ATM..(E,G,Q)199309-199610

main88605-2J650iCR31..MTM199309-199610

main88605-2J660iCR31..MTM199309-199610

main88605-2J830iCR22..D,G; CR29..HRF; CR29..MRF199309-199610

main88605-2J840iCR31..MTM..(D,G); CR38..MTM199309-199610

main88605-2J850iCR31..ATM..G; CR38..ATM199309-199610

main88605-2J860iYR21..MRF199309-199610

main88605-2R150iCR27199408-199610

88625THERMISTOR, COOLER, NO.1

main88625-28130iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199610

main88625-90A00iCR2#,3#,KR27,YR2#,30199201-199309

88626AHOLDER, THERMISTOR

main88626-28010iCR2#,3#,KR27,YR2#,30199201-199309

FRONT

main88626-40050iCR21,28,30,37,YR21,30..4D199201-199309

REAR

88630RELAY ASSY, COOLER

main28380-44030iCR22,YR30..Z; CR22,YR30;CR31..MTM..(E,G,Q);CR31,YR21..(D,Z)..HRF; CR38..MTM199309-199610

main88630-14030×2iCR22,31..MTM; CR22,YR30..Z; CR31,YR21..Z199309-199610

main88630-28030iCR22,31,YR21,30..Z199408-199610

FAN,NO.1

88630WRELAY ASSY

main85913-30020iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30199201-199610

88630XRELAY ASSY

main90987-03001iCR29,38..HRF199309-199610

88726LPIPE, COOLER REFRIGERANT LIQUID, L

main88716-2R160iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199610

88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER

main88710-2J660iCR22,31,YR21,30199309-199312

main88790-28060iCR22,31,YR21..D,G; CR29,38..HRF; CR29..MRF;CR27,36,KR27,YR25199309-199312

88899KPLATE, COVER

main88899-28260iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30199201-199610

8851987701HOLDER, REMOTE BULB

main88519-87701

8856932030CLAMP (FOR COOLER RELAY)

main88569-32030

8868828560BRACKET, COOLER DIAPHRAGM

main88688-28560

8868828570BRACKET, COOLER DIAPHRAGM

main88688-28570

8868828580BRACKET, COOLER DIAPHRAGM

main88688-28580

8868828640BRACKET, COOLER DIAPHRAGM

main88688-28640

8871487524HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87524

8889828010TUBE SUB-ASSY, EQUALIZER

main88898-28010

9009900930

main90099-00930

9009900968

main90099-00968

9009904466

main90099-04466

9011906042

main90119-06042

9011906182

main90119-06182

9015960125

main90159-60125

9046400432

main90464-00432

9165140616

main91651-40616

9354014012

main93540-14012

9354015012

main93540-15012

9354055012

main93540-55012

9363035012

main93630-35012

39 parts on this diagram · 11 diagrams in section
