HEATING & AIR CONDITIONING - SET

0001 1 0002 1

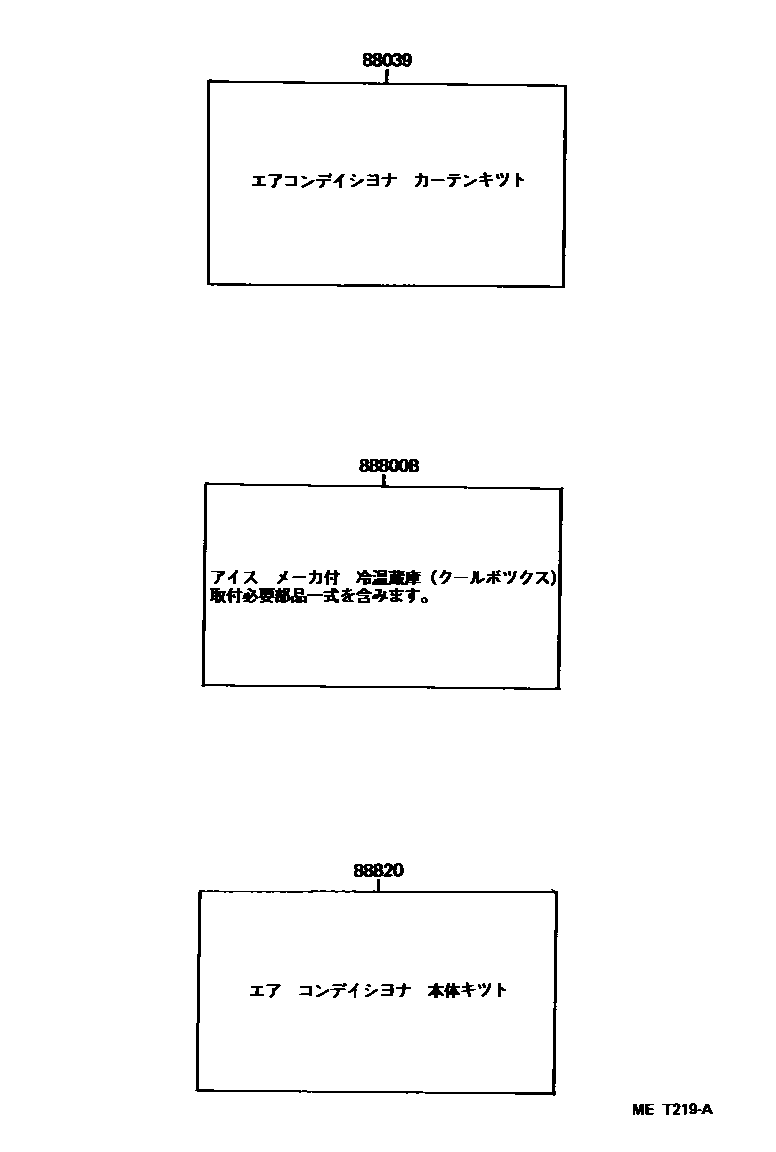

88039ADDITIONAL KIT,AIRCONDITIONER

main88870-28080iCR27,36,KR27,YR25..D..SRF199201-199610

REAR

main88870-28090iCR28,29..MRF199201-199610

REAR

main88870-28100iCR27,YR25..D..HRF; CR28,36,37,KR27..(B,D)..HRF199201-199309

REAR; REAR(STD FLOOR)

main88870-28110iCR27,KR27,YR25..N..SRF199201-199610

REAR

main88870-28130iCR27,36,YR25..N..HRF;CR21,22,28,30,31,37..(D,F,G)..HRF199201-199610

REAR(STD FLOOR)

main88870-28140iCR27,KR27,YR25..D..HRF199201-199610

REAR(JUST LOW)

main88870-28150iCR27,KR27,YR25..N..HRF199201-199610

REAR(JUST LOW)

main88870-28160iCR27,36,KR27,YR25..D..SRF199201-199610

FRONT

main88870-28170iCR29,38..HRF199309-199610

main88870-28180iCR21,28,30,37..(D,F)..HRF;CR27,36,KR27,YR25..N..HRF199201-199305

FRONT

main88870-28190iCR27,KR27,YR25..N..SRF199201-199610

FRONT

main88870-28200iCR28,29..MRF199201-199610

FRONT

main88870-28230iCR29,38..HRF199309-199610

88800BCOOL BOX AND ACCESSORY ASSY, NO.1

main88800-28040-B0iCR21,28,30,37,YR21..(B,D)..4D199201-199309

LIGHT GRAY,TRIM1#

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-28100iCR21,28,YR21..(B,D)..4D; CR28..5D;CR27,KR27,YR25199201-199309

main88820-28110iCR30,37..(B,D)..4D; CR36;CR37..5D199201-199309

main88820-28120iCR21,28,YR21..(B,D)..4D199201-199309

main88820-28130iCR30,37..(B,D)..4D199201-199309

main88820-28160iCR27,KR27,YR2#..D,N199309-199610

main88820-28170iCR29..HRF;CR38..MTM; CR29..MRF;CR22,36..D,G,N;CR31..MTM..(D,G)199309-199610

main88820-28190iCR31..ATM..G; CR38..ATM199309-199610

3 parts on this diagram · 2 diagrams in section
