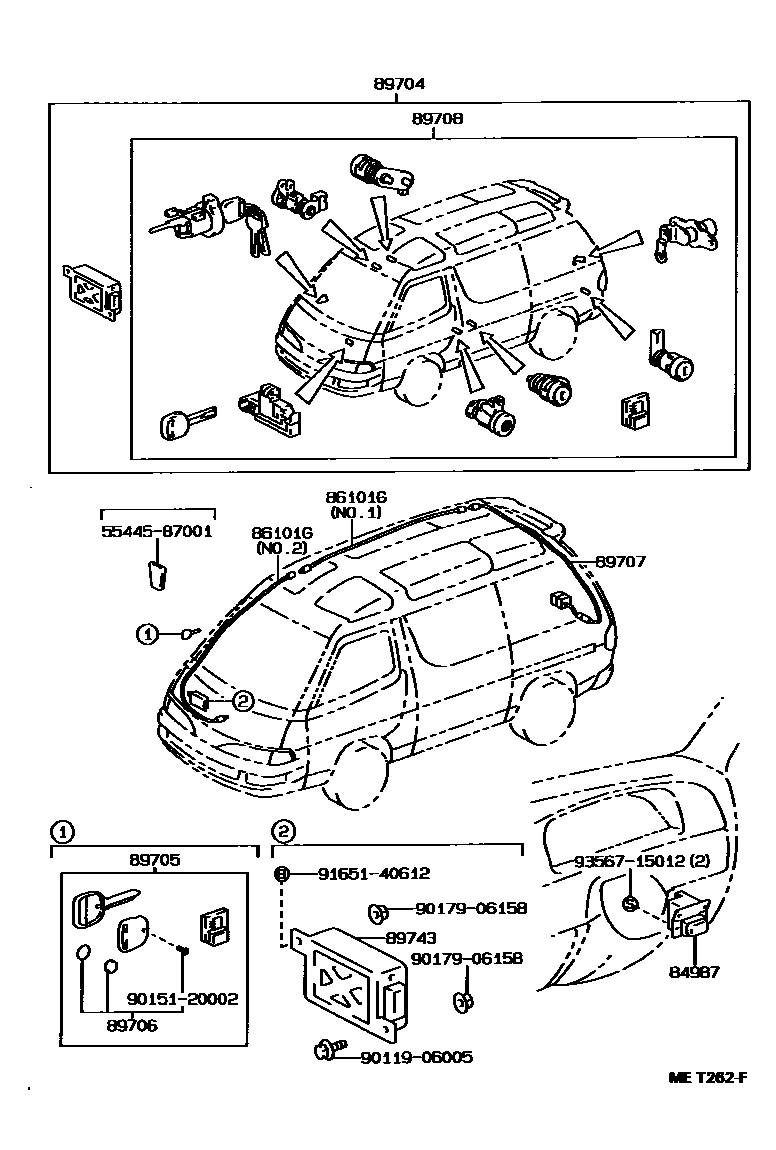

WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-28010iCR21,30,YR21,30..07S199201-199309

86101GCORD SUB-ASSY, ANTENNA

main86101-28170iCR21,22,30,31,YR21,30..07S199201-199610

main86101-28180iCR21,22,30,31,YR21,30..07S199201-199610

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-28020iCR21,22,30,31,YR21,30..07S199201-199503

89705TRANSMITTER, DOOR CONTROL

main89705-28020iCR21,22,30,31,YR21,30..07S199201-199610

89706BATTERY SET, TRANSMITTER

main89706-50010iCR21,22,30,31,YR21,30..07S199201-199610

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-28020iCR21,22,30,31,YR21,30..07S199201-199610

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-28010iCR22,31,YR21,30..07S199503-199610

89743RECEIVER, DOOR CONTROL

main89743-28020iCR21,22,30,31,YR21,30..07S199201-199610

5544587001GARNISH, INSTRUMENT PANEL OUTSIDE, RH

main55445-87001

9011906005

main90119-06005

9015120002

main90151-20002

9017906158

main90179-06158

9165140612

main91651-40612

9356715012

main93567-15012

14 parts on this diagram · 1 diagram in section
