ELECTRONIC MODULATED SUSPENSION

89191ASENSOR, ACCELERATION

main89191-28010iCR21,30,YR21,30..07S199201-199208

main89191-28020iCR21,22,30,31,YR21,30..07S199208-199610

89241BACTUATOR, ABSORBER CONTROL

main89241-28010×2iCR21,22,30,31,YR21,30..07S199201-199610

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-28010×2iCR21,22,30,31,YR21,30..07S199201-199610

89243COMPUTER, ABSORBER CONTROL

main89243-28020iCR21,30,YR21,30..07S199201-199212

main89243-28021iCR21,22,30,31,YR21,30..07S199212-199610

89249SWITCH, ABSORBER CONTROL

main89249-28010iCR22,31,YR21,30..07S199309-199610

main89249-32030iCR21,30,YR21,30..07S199201-199309

9011906005

main90119-06005

9017906158

main90179-06158

9165140620

main91651-40620

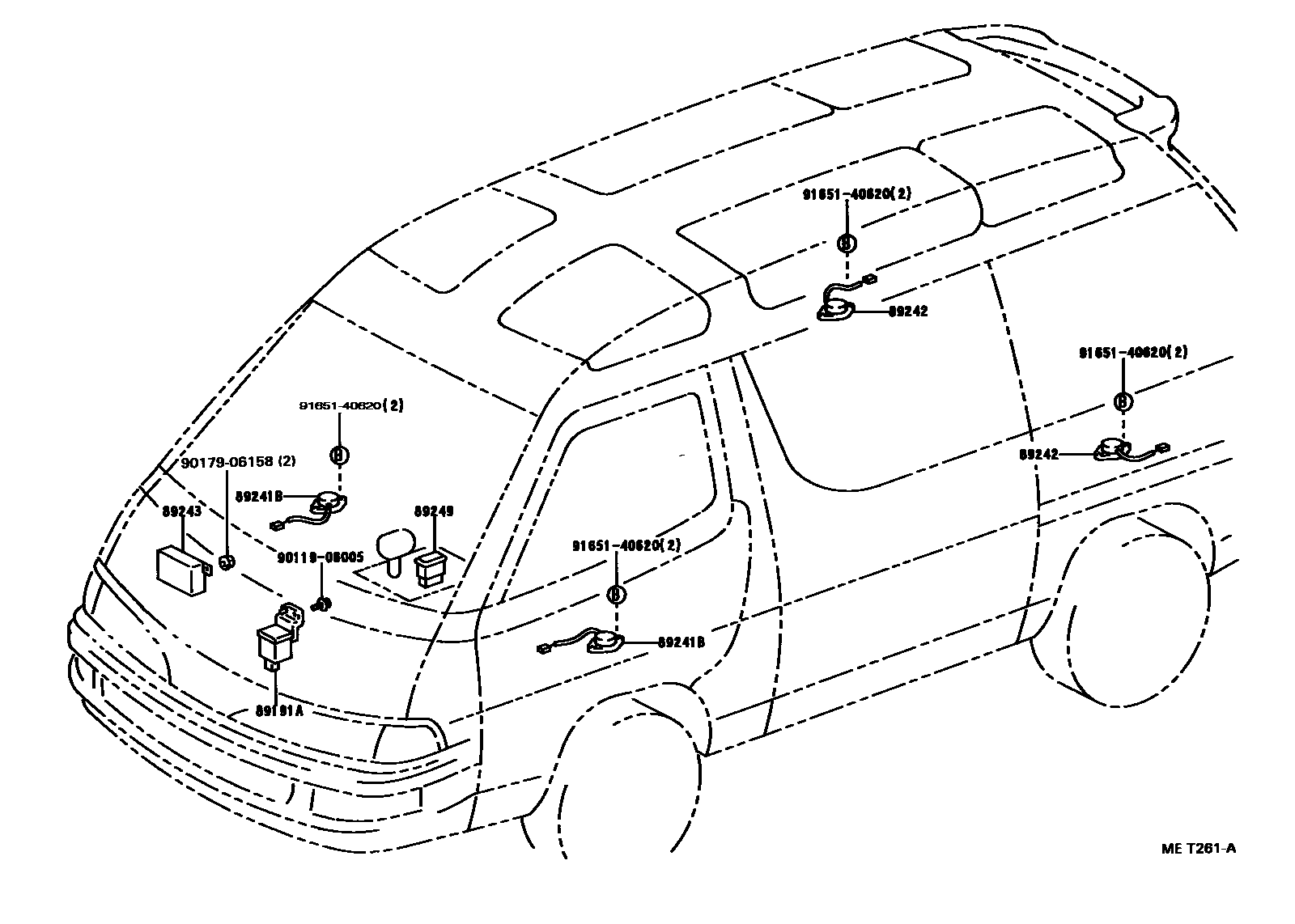

8 parts on this diagram · 1 diagram in section
