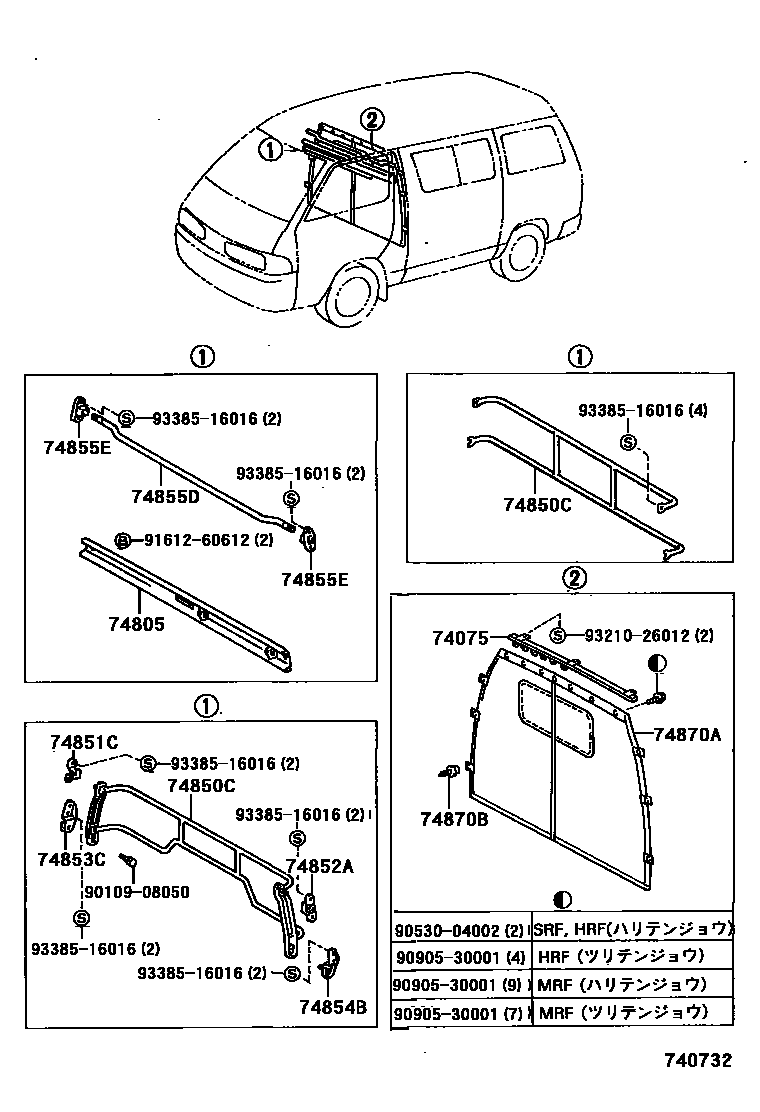

SEPARATOR & SEPARATOR CURTAIN

74075RAIL SET, SEPARATOR CURTAIN

main74075-28010iCR27,28,36,37,KR27,YR25..(F,N)..HRF199212-199610

74805SEPARATOR SUB-ASSY

main74805-28010iKR27,YR25..MTM..D199201-199610

74850CBAR ASSY, SEPARATOR

main74850-28010-B0iCR27,36,KR27,YR25..N199201-199610

GRAY,TRIM1#

main74850-28020-B0iCR27,36,KR27,YR25..D..(02S,05S)199201-199610

GRAY,TRIM1#

74851CBRACKET, SEPARATOR, UPPER RH

main74851-87003iCR27,36,KR27,YR25..N199201-199610

74852ABRACKET, SEPARATOR, UPPER LH

main74852-87002iCR27,36,KR27,YR25..N199201-199610

74853CBRACKET, SEPARATOR, LOWER RH

main74853-87001iCR27,36,KR27,YR25..N199201-199610

74854BBRACKET, SEPARATOR, LOWER LH

main74854-87002iCR27,36,KR27,YR25..N199201-199610

74855DBAR, SEPARATOR, UPPER

main74855-28020-B0iKR27,YR25..MTM..D199201-199309

GRAY,TRIM1#

74855EBRACKET, SEPARATOR BAR

main74855-28030-B0×2iKR27,YR25..MTM..D199201-199309

GRAY,TRIM1#

74870ACURTAIN ASSY, SEPARATOR

main74870-28010iCR27,36,KR27,YR25..D..SRF199201-199204

main74870-28020iCR27,29,36,38,YR25..(B,D)..HRF; KR27..D..HRF199309-199610

main74870-28030iCR29,38..HRF..4D; CR29,38..HRF..5D199309-199610

main74870-28040iCR27,KR27,YR25..N..SRF199204-199610

main74870-28050iCR28..MRF199201-199204

main74870-28130iCR27..D..HRF199408-199610

main74870-28140iCR27..D..HRF199408-199610

main74870-28150iCR22,31..(D,G)..HRF; CR29,38..HRF199309-199610

main74870-28160iCR27..N..HRF199408-199610

main74870-28180iCR27..D..SRF199408-199610

main74870-28190iCR27..N..SRF199408-199610

main74870-28210iCR21,YR21..MRF199201-199309

main74870-28220iCR27,28,36,37,KR27,YR25..(F,N)..HRF199304-199610

main74870-87009iCR27,28,36,37,KR27,YR25..(F,N)..HRF199212-199304

74870BHOOK, MALE(FOR SEPARATOR CURTAIN SET)

main58521-87202×9iCR27,28,36,37,KR27,YR25..(F,N)..HRF; CR27,KR27,YR25..N..SRF;CR27,28,29,36,37,38,KR27,YR25..(B,D)..(HRF,SRF)199206-199610

9010908050

main90109-08050

9053004002

main90530-04002

9090530001

main90905-30001

9161260612

main91612-60612

9321026012

main93210-26012

9338516016

main93385-16016

17 parts on this diagram · 1 diagram in section
