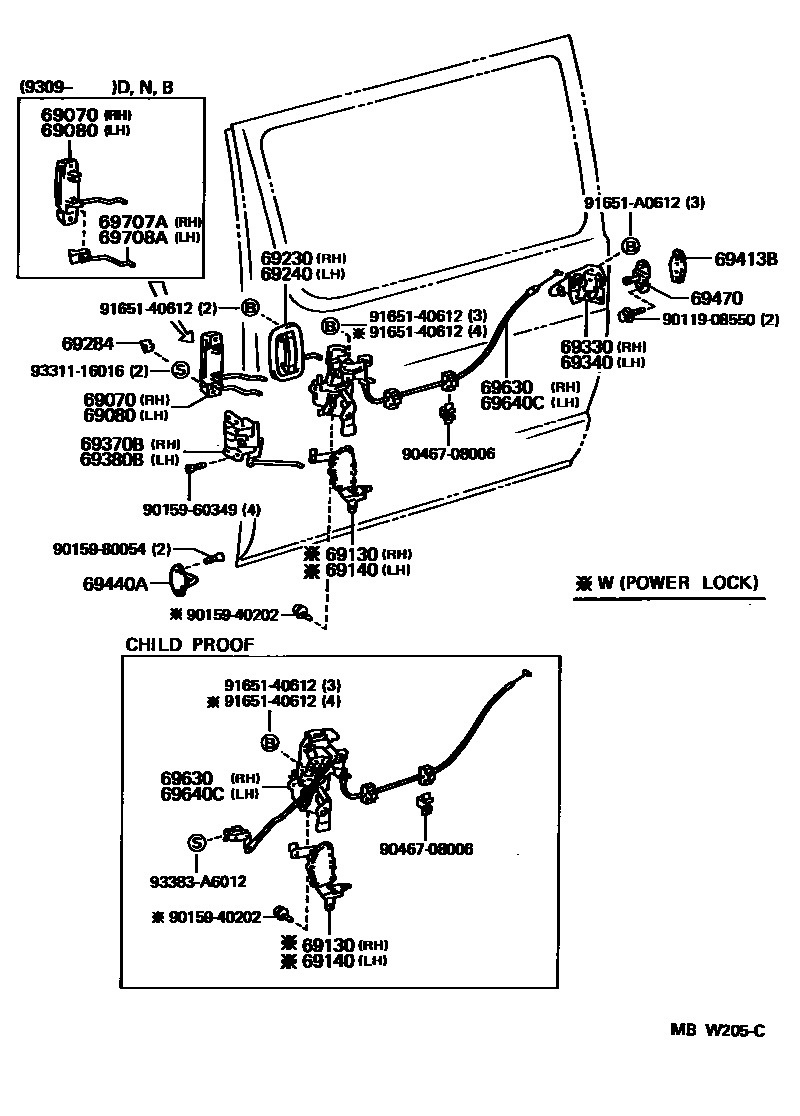

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-28030-B0iCR27,28,36,37,KR27,YR25..5D199201-199309

GRAY,TRIM1#

main69070-28040-B0iCR27,29,36,38,KR27,YR25..5D199309-199610

GRAY,TRIM1#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-28010-B0iCR21,30,YR21,30..E,Q;CR27,28,36,37,KR27,YR25..5D; CR28..4D199201-199210

GRAY,GRAY,TRIM1#; GRAY,TRIM1#

main69080-28010-E0iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

main69080-28020-B0iCR2#,3#,KR27,YR2#..B,D,N199309-199610

GRAY,TRIM1#

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-28010iCR29..MRF..5D;CR27,28,36,37,KR27,YR25..5D199201-199610

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28010iCR29..MRF;CR21,22,27,28,30,31,36,37,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

main69140-28020iCR21,22,30,31,YR21,30..Z199201-199610

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69220-28040-B1iCR22,31,YR21,30..E199512-199610

main69230-28030iCR27,28,29,36,37,38,KR27,YR25..5D199201-199610

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28010iCR2#,3#,KR27,YR2#,30..B,D,E,F,G,N,Q199201-199610

main69240-28020-B0iCR21,30,YR21,30..E199304-199308

main69240-28020-B1iCR22,31,YR21,30..Z199408-199610

WARM GRAY OP,25Y

main69240-28020-B2iCR22,31,YR21,30..E199512-199610

main69240-28020-D0iCR22,31,YR21,30..E199401-199404

main69240-28020-E1iCR22,31,YR21,30..E199401-199408

main69240-28020-G0iCR22,31,YR21,30..E199512-199610

main69240-28020-H0iCR22,31,YR21,30..E199412-199508

main69240-28020-J0iCR21,30,YR21,30..E199305-199307

main69240-28020-J1iCR22,31,YR21,30..E199412-199508

main69240-28030iCR21,30,YR21,30..E199210-199302

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-03×2iCR21,30,YR21,30..E,Q199201-199210

GRAY,TRIM1#

main69284-95J00-B0×2iCR2#,3#,KR27,YR2#,30..(B,D,E,G,N,Q)..4D; CR27,28,29,36,37,38,KR27,YR25..5D199308-199610

BLUISH GRAY,TRIM1#

main69284-95J00-E0×2iCR21,22,30,31,YR21,30..E,Q,Z199201-199610

GREIGE,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iCR27,28,29,36,37,38,KR27,YR25..5D199201-199610

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iCR2#,3#,KR27,YR2#,30199201-199610

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28030iCR27,28,29,36,37,38,KR27,YR25..5D..(05S,06S)199201-199610

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28030iCR2#,3#,KR27,YR2#,30..05S,06S,07S,08S199201-199610

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iCR2#,3#,KR27,YR2#,30199201-199610

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010×2iCR2#,3#,KR27,YR2#,30..4D..(05S,06S,07S,08S); CR27,29,36,38,KR27,YR25..5D..(05S,06S)199408-199610

main69440-28020iCR2#,3#,KR27,YR2#,30..4D..(05S,06S,07S,08S); CR27,28,29,36,37,38,KR27,YR25..5D..(05S,06S)199201-199408

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28030×2iCR2#,3#,KR27,YR2#,30..4D; CR27,28,29,36,37,38,KR27,YR25..5D199201-199610

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28040iCR27,36,KR27,YR25..D..5D199201-199610

main69630-28060iCR28,29,37,38..B..5D199201-199610

main69650-28020iCR27,36,KR27,YR25..D..5D; CR27,36,KR27,YR25..N..5D199201-199610

main69650-28030iCR28,37..F199201-199309

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28040iCR27,36,KR27,YR25..D199201-199610

main69640-28060iCR28,29,37,38..B199201-199610

main69660-28010iCR27,36,KR27,YR25..D; CR27,36,KR27,YR25..N199201-199610

main69660-28020iCR21,22,28,30,31,37,YR21,30..D,E,F,G,Q,Z; CR28,29,37,38..B199201-199610

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-28010-B0iCR27,29,36,38,KR27,YR25..5D199309-199610

GRAY,TRIM1#

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-28010-B0iCR2#,3#,KR27,YR2#..B,D,N199309-199610

GRAY,TRIM1#

9011908550

main90119-08550

9015940202

main90159-40202

9015960349

main90159-60349

9015980054

main90159-80054

9046708006

main90467-08006

9165140612

main91651-40612

91651A0612

main91651-A0612

9331116016

main93311-16016

93383A6012

main93383-A6012

27 parts on this diagram · 1 diagram in section
