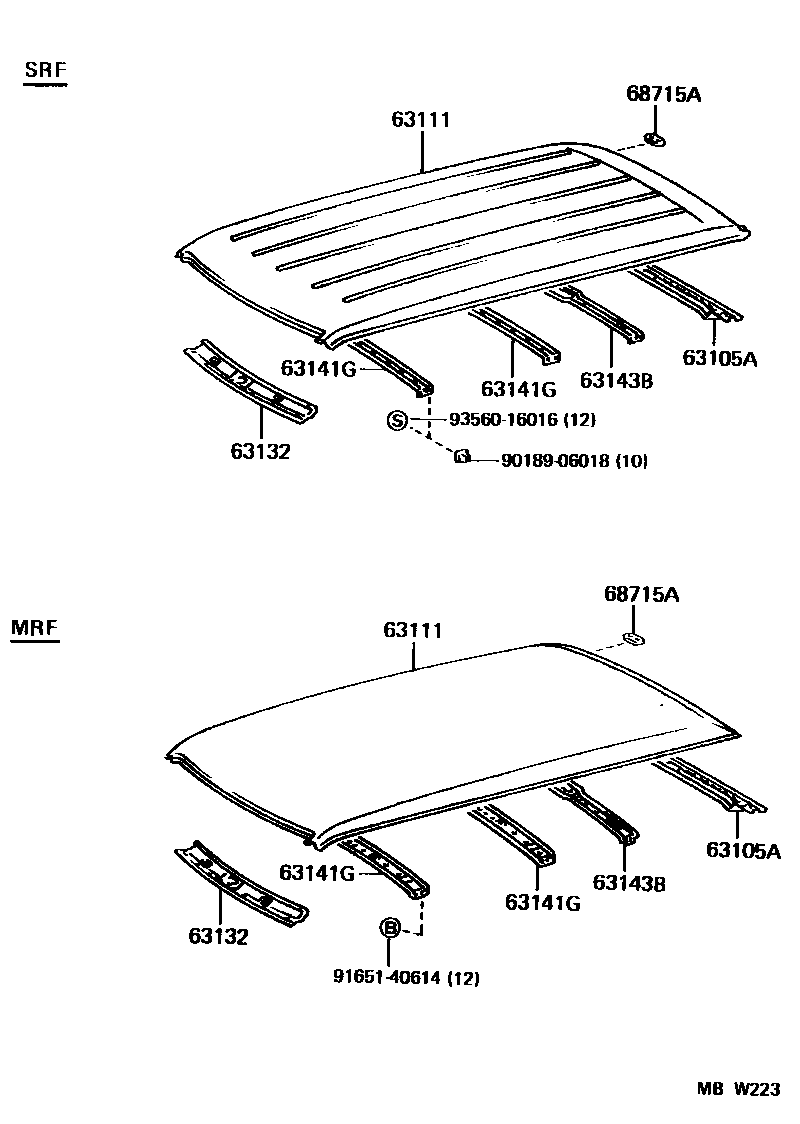

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1����-��-� 0004 1�������-� 0005 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-28030iCR21,22,30,31,YR21,30..07S199201-199610

main63105-28030iCR22,31,YR21,30..E199201-199610

main63105-28040iCR21,22,30,31,YR21,30..E199201-199610

main63105-87008iCR2#,3#,KR27,YR2#,30..HRF..(02S,03S,05S,06S,08S)199201-199610

main63105-87011iCR2#,36,KR27,YR2#..MRF,SRF199201-199610

63111PANEL, ROOF

main63111-87016iCR2#,3#,KR27,YR2#,30..HRF..(02S,03S,05S,06S,08S)199201-199610

main63111-87017iCR21,22,28,29,YR21..MRF199201-199610

main63111-87018iCR21,22,30,31,YR21,30..E199201-199610

main63111-87019iCR21,22,30,31,YR21,30..07S199201-199610

main63111-87019iCR21,30,YR21,30..E199201-199610

main63111-87020iCR27,36,KR27,YR25..SRF199201-199610

63132PANEL, WINDSHIELD HEADER, INNER

main63132-28030iCR2#,3#,KR27,YR2#,30199201-199610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-87007iCR21,22,30,31,YR21,30..E199201-199610

main63141-87008iCR27,36,KR27,YR25..SRF199201-199610

main63141-87009iCR21,22,28,29,YR21..MRF199201-199610

main63141-87010iCR2#,3#,KR27,YR2#,30..HRF..(02S,03S,05S,06S,08S)199201-199610

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-87002iCR27,36,KR27,YR25..SRF199201-199610

main63143-87003iCR21,22,28,29,YR21..MRF199201-199610

main63143-87004iCR2#,3#,KR27,YR2#,30..HRF..(02S,03S,05S,06S,08S)199201-199610

68715APLATE, DOOR HINGE, UPPER

main68715-28010iCR2#,3#,KR27,YR2#,30199201-199610

9018906018

main90189-06018

9165140614

main91651-40614

9356016016

main93560-16016

9 parts on this diagram · 5 diagrams in section
