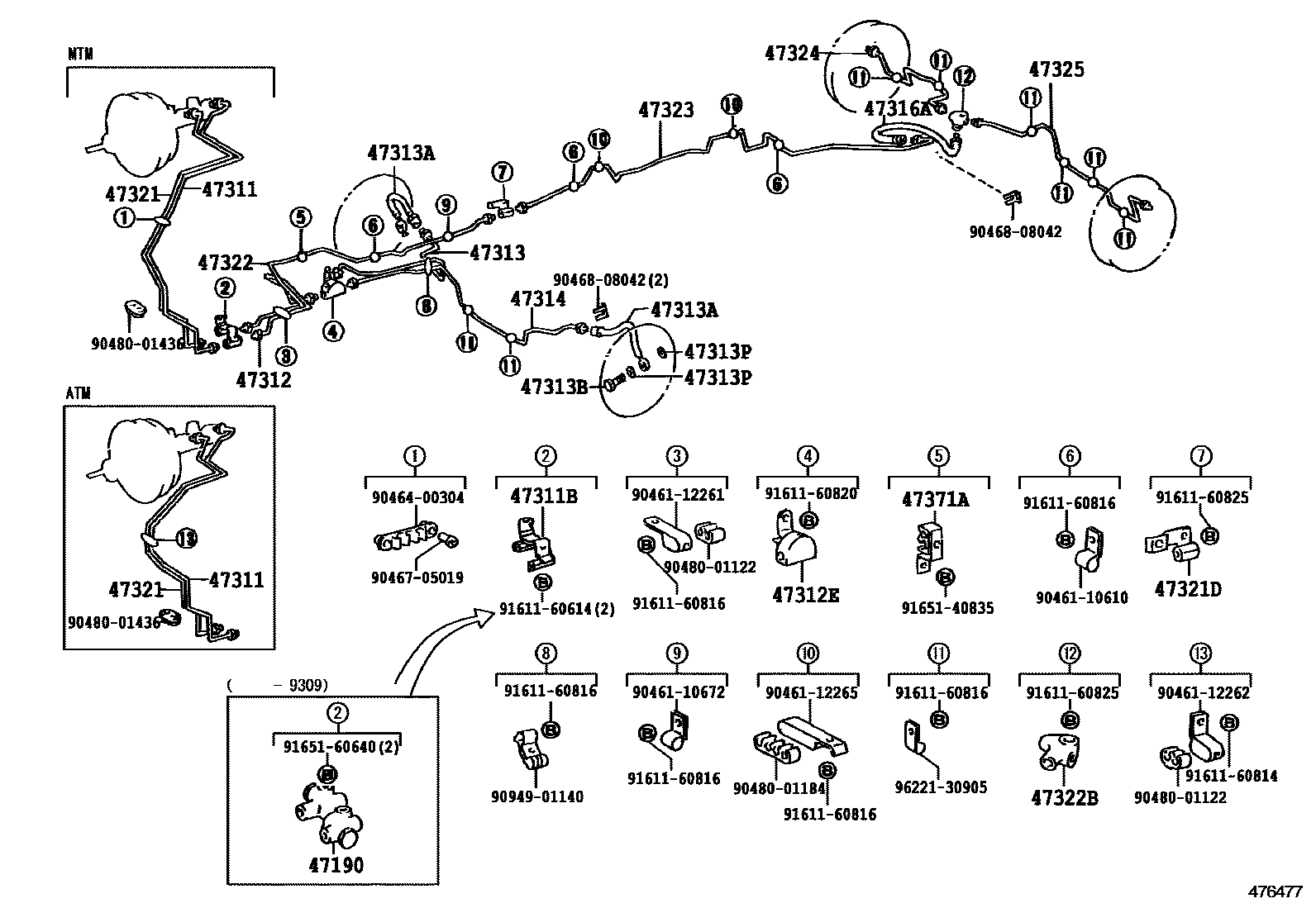

BRAKE TUBE & CLAMP

0001 1 0003 1 0005 1 0007 1 0009 1 0011 1 0012 1��(������ ���-���� ����)

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28060iCR21,YR21199201-199309

47311TUBE, FRONT BRAKE, NO.1

main47311-28310iCR21,YR21..MTM199201-199309

main47311-28320iCR21,22,YR21..MTM..(E,G,Q)199201-199610

main47311-28330iCR21,YR21..ATM199201-199309

main47311-28340iCR21,22,YR21..ATM199201-199610

main47311-28360iCR2#,3#,KR27,YR2#..MTM199309-199610

main47311-28370iCR2#,3#,KR27,YR2#,30..ATM199309-199610

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10097iCR27,28,3#,KR27,YR25,30199201-199309

47312TUBE, FRONT BRAKE, NO.2

main47312-28190iCR2#,3#,KR27,YR2#,30199201-199610

main47312-28200iCR21,22,YR21..E,G,Q,Z199201-199610

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10183iCR21,YR21199201-199309

main90414-10014iCR27,28,3#,KR27,YR25,30199201-199309

47313TUBE, FRONT BRAKE, NO.3

main47313-28110iCR2#,KR27,YR2#199201-199610

main47313-28190iCR21,22,YR21..E,G,Q,Z199201-199610

main47313-28200iCR3#,YR30199201-199610

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02505×2iCR2#,KR27,YR2#199201-199610

main90947-02722×2iCR3#,YR30199201-199610

main90947-02723×2iCR21,YR21..E,Q,Z199201-199203

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCR2#,3#,KR27,YR2#,30199201-199610

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iCR2#,3#,KR27,YR2#,30199201-199610

47314TUBE, FRONT BRAKE, NO.4

main47314-28120iCR2#,KR27,YR2#199201-199610

main47314-28200iCR21,22,YR21..E,G,Q,Z199201-199610

main47314-28210iCR3#,YR30199201-199610

47316TUBE, FRONT BRAKE, NO.6

main47316-28040iCR21,22,YR21..E,G,Q,Z199201-199610

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02442iCR28,29;CR27,KR27,YR25..V1199201-199610

main90947-02492iCR30,31,YR30199201-199610

main90947-02721iCR36,37,38;CR27,KR27,YR25..V2199201-199610

main90947-02724iCR21,YR21..E,Q,Z199201-199203

main96940-33105iCR21,22,YR21199201-199610

47321TUBE, REAR BRAKE, NO.1

main47321-28310iCR21,YR21..MTM199201-199309

main47321-28320iCR21,22,YR21..MTM..(E,G,Q)199201-199610

main47321-28330iCR21,YR21..ATM199201-199309

main47321-28340iCR21,22,YR21..ATM199201-199610

main47321-28360iCR27,28,3#,KR27,YR25..MTM199201-199309

main47321-28370iCR2#,3#,KR27,YR2#,30..ATM199309-199610

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iKR27..N;KR27..4D..05S;CR27,36,YR2#,30..02S,05S,07S,08S199304-199610

main90412-10133iCR2#,3#,KR27,YR2#,30199201-199304

main90412-12041iCR21,22,YR21..E,G,Q,Z199201-199610

47322TUBE, REAR BRAKE, NO.2

main47322-28180iCR2#,KR27,YR2#199201-199610

main47322-28190iCR21,22,YR21..E,G,Q,Z199201-199610

main47322-28200iCR3#,YR30199201-199610

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iCR27,28,29,36,37,38,KR27,YR25199201-199610

main90413-10130iCR21,22,30,31,YR21,30199201-199610

47323TUBE, REAR BRAKE, NO.3

main47323-28250iCR30,YR30199201-199309

main47323-28260iCR21,YR21199201-199309

main47323-28270iCR21,22,YR21..E,G,Q,Z199201-199610

main47323-28280iCR27,KR27,YR25..V2199201-199610

main47323-28290iCR28,29,36,37,38;CR27,KR27,YR25..V1199201-199610

47324TUBE, REAR BRAKE, NO.4

main47324-28032iCR21,YR21;CR22..ATM199201-199610

main47324-28051iCR28;CR29..ATM;CR27,KR27,YR25..V1199201-199610

main47324-28072iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main47324-28081iCR29..MTM;CR36,37,38199201-199610

main47324-28110iCR30,31,YR30199201-199610

main47324-28180iCR27,KR27,YR25..V2199201-199610

47325TUBE, REAR BRAKE, NO.5

main47325-28051iCR21,YR21;CR22..ATM199201-199610

main47325-28071iCR28;CR29..ATM;CR27,KR27,YR25..V1199201-199610

main47325-28091iCR22..MTM199309-199610

main47325-28101iCR29..MTM;CR36,37,38199201-199610

main47325-28110iCR30,31,YR30199201-199610

main47325-28180iCR27,KR27,YR25..V2199201-199610

47371ACLAMP, BRAKE TUBE, NO.1

main47371-28030iCR2#,3#,KR27,YR2#,30199201-199610

9046110610

main90461-10610

9046110672

main90461-10672

9046112261

main90461-12261

9046112262

main90461-12262

9046112265

main90461-12265

9046400304

main90464-00304

9046705019

main90467-05019

9046808042

main90468-08042

9048001122

main90480-01122

9048001184

main90480-01184

9048001436

main90480-01436

9094901140

main90949-01140

9161160614

main91611-60614

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9165140835

main91651-40835

9165160640

main91651-60640

9622130905

main96221-30905

40 parts on this diagram · 7 diagrams in section
