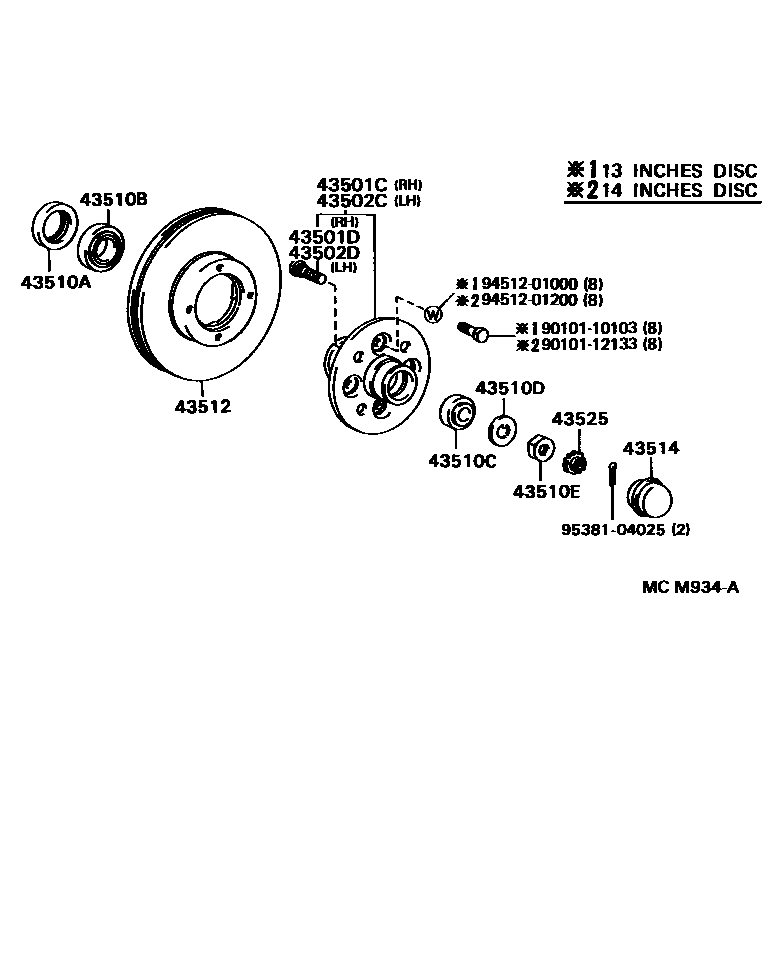

FRONT AXLE HUB

0001 1 0002 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-20010iCR27,KR27,YR25199201-199610

main43502-28020iCR3#,YR30199201-199610

main43502-28030iCR21,22,28,29,YR21199201-199610

main43503-28010iCR21,22,YR21..E,G,Q,Z199201-199610

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047×5iCR3#,YR30199201-199610

main90942-02048×4iCR2#,KR27,YR2#199201-199610

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-20010iCR27,KR27,YR25199201-199610

main43502-28020iCR3#,YR30199201-199610

main43502-28030iCR21,22,28,29,YR21199201-199610

main43503-28010iCR21,22,YR21..E,G,Q,Z199201-199610

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iCR3#,YR30199201-199610

main90942-02048×4iCR2#,KR27,YR2#199201-199610

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iCR2#,KR27,YR2#199201-199610

main90311-66002×2iCR3#,YR30199201-199610

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-50011×2iCR3#,YR30199201-199610

main90368-31067×2iCR2#,KR27,YR2#199201-199610

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2iCR2#,KR27,YR2#199201-199610

main90368-45087×2iCR3#,YR30199201-199610

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iCR2#,KR27,YR2#199201-199610

main90214-42030×2iCR3#,YR30199201-199610

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iCR2#,KR27,YR2#199201-199610

43512DISC, FRONT

main43512-28130×2iCR21,22,28,29,YR21199201-199610

main43512-28140×2iCR3#,YR30199201-199610

main43512-28150×2iCR27,KR27,YR25199201-199610

43514CAP, FRONT HUB GREASE

main43514-22020×2iCR2#,KR27,YR2#199309-199610

main43514-27010×2iCR2#,KR27,YR2#199201-199309

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iCR2#,KR27,YR2#199201-199610

9010110103

main90101-10103

9010112133

main90101-12133

9451201000

main94512-01000

9451201200

main94512-01200

9538104025

main95381-04025

17 parts on this diagram · 2 diagrams in section
