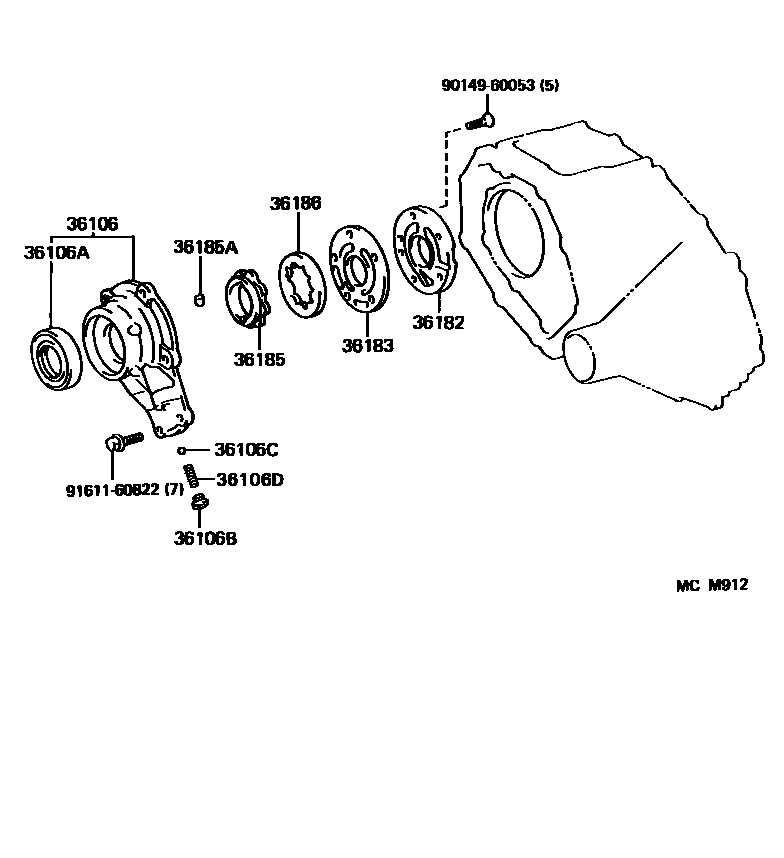

TRANSFER OIL PUMP

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-25010iCR3#,YR30..ATM199508-199610

main36106-28030iCR3#..MTM199201-199508

main36106-28040iCR3#,YR30..ATM199201-199508

main36106-28050iCR3#..MTM199508-199610

36106ASEAL, OIL (FOR TRANSFER OIL PUMP BODY)

main90310-40002iCR3#,YR30..ATM199201-199610

main90316-40004iCR3#..MTM199201-199610

36106BPLUG (FOR TRANSFER OIL PUMP BODY)

main90341-12014iCR3#,YR30199201-199610

36106CBALL (FOR TRANSFER OIL PUMP BODY)

main90360-10003iCR3#,YR30199201-199610

36106DSPRING, COMPRESSION (FOR TRANSFER OIL PUMP BODY)

main90501-09068iCR3#,YR30199201-199610

36182COVER, TRANSFER OIL PUMP

main36182-28010iCR3#,YR30199201-199610

36183PLATE, TRANSFER OIL PUMP

main36183-28010iCR3#,YR30199201-199610

36185ROTOR, TRANSFER OIL PUMP DRIVE

main36185-25010iCR3#,YR30199508-199610

main36185-28010iCR3#,YR30199201-199508

36185APIN, STRAIGHT(FOR TRANSFER OIL PUMP DRIVE ROTOR)

main90250-05025×2iCR3#,YR30199201-199610

36186ROTOR, TRANSFER OIL PUMP DRIVEN

main36186-25010iCR3#,YR30199508-199610

main36186-28010iCR3#,YR30199201-199508

9014960053

main90149-60053

9161160822

main91611-60822

12 parts on this diagram · 1 diagram in section
