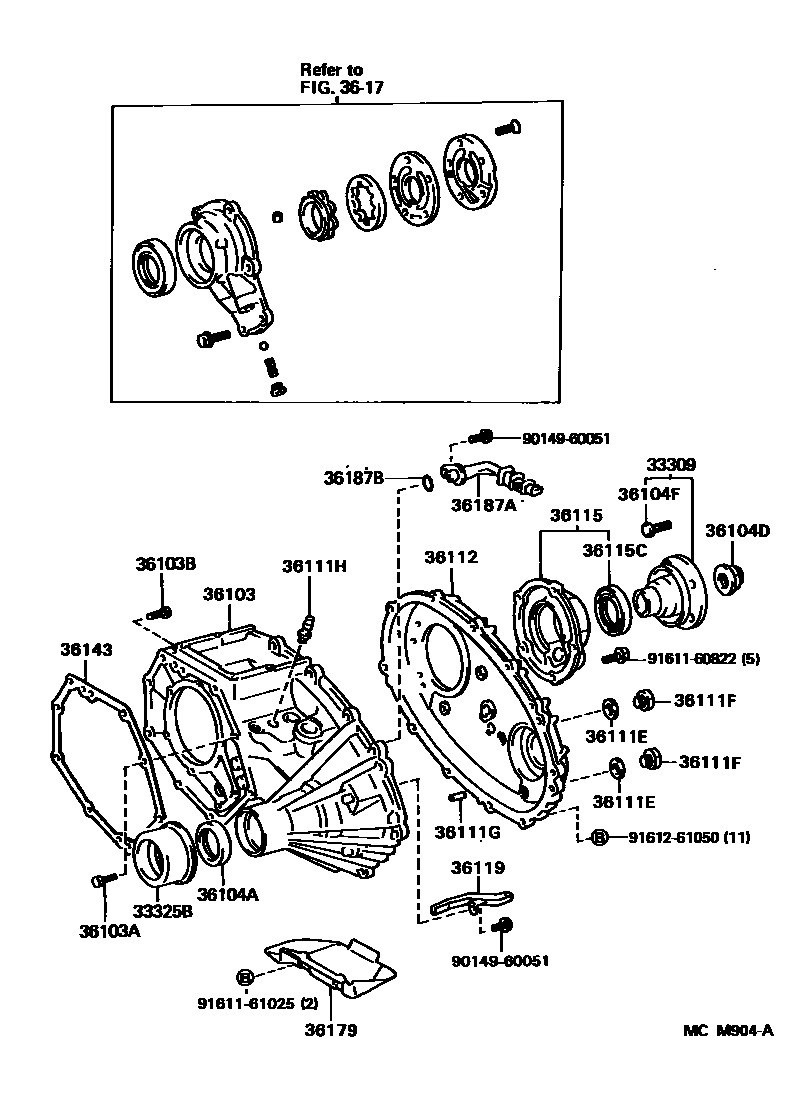

TRANSFER CASE & EXTENSION HOUSING
33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
36103CASE SUB-ASSY, TRANSFER
36103ABOLT (FOR TRANSFER CASE)
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
3617TRANSFER OIL PUMP
36179PROTECTOR, TRANSFER CASE LOWER
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9014960051
main90149-60051
9161160822
main91611-60822
9161161025
main91611-61025
9161261050
main91612-61050
25 parts on this diagram · 2 diagrams in section
