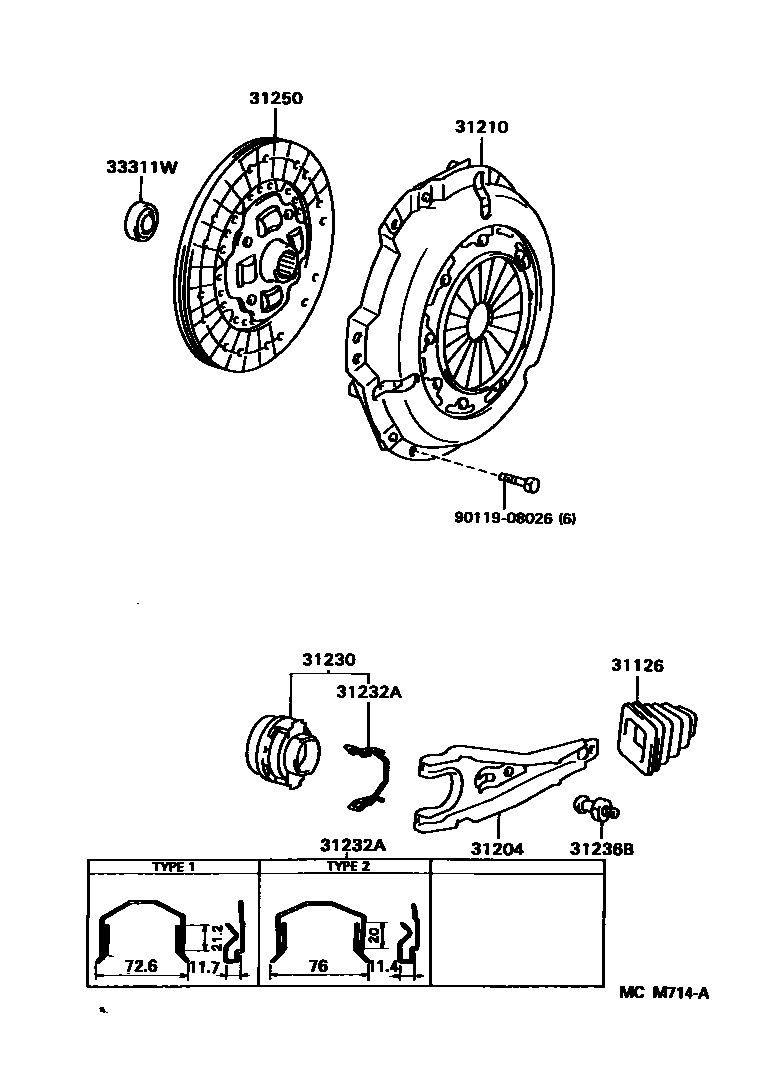

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCR2#,3#,YR2#..MTM199201-199610

main31126-20070iKR27..MTM199201-199610

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCR2#,3#,YR2#..MTM199201-199610

main31204-22040iKR27..MTM199201-199610

31210COVER ASSY, CLUTCH

main31210-12180iKR27..MTM199201-199610

main31210-22120iCR27,YR25..MTM199201-199610

main31210-26110iCR22,29,3#..MTM199309-199610

main31210-35090iYR21..MTM199309-199610

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iCR2#,3#,KR27,YR2#..MTM199201-199610

31232ACLIP, RELEASE BEARING HUB

main31232-35020iCR2#,3#,KR27,YR2#..MTM199201-199610

main31232-35040iCR2#,3#,KR27,YR2#..MTM199201-199610

31236BSUPPORT, RELEASE FORK

main31236-30060iCR2#,3#,KR27,YR2#..MTM199201-199610

31250DISC ASSY, CLUTCH

main31250-20116iCR27..MTM199201-199205

PINK PAINTED

main31250-20117iCR27..MTM199205-199610

PINK PAINTED

main31250-20121iYR21..MTM199201-199302

main31250-20240iYR21..MTM199505-199610

main31250-25122iYR21..MTM199302-199505

main31250-27061iKR27..MTM199201-199509

GREEN PAINTED

main31250-28021iCR36..MTM199201-199203

BLUE PAINTED

main31250-28022iCR36..MTM199203-199306

main31250-28023iCR36..MTM199306-199610

BLUE PAINTED

main31250-28060iCR30,37..MTM199201-199203

GREEN PAINTED

main31250-28061iCR30,37..MTM199203-199211

GREEN PAINTED

main31250-28070iCR21,28..MTM199201-199203

ORANGE PAINTED

main31250-28071iCR21,28..MTM199203-199211

ORANGE PAINTED

main31250-28090iCR31,38..MTM199309-199610

ORANGE PAINTED

main31250-28100iCR22,29..MTM199309-199610

GREEN PAINTED

main31250-28120iYR25..MTM199603-199610

main31250-28140iKR27..MTM199509-199610

main31250-35064iYR25..MTM199201-199205

AISIN

main31250-35065iYR25..MTM199205-199603

AISIN

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYR2#..MTM199201-199610

main90363-12003iKR27..MTM199201-199610

main90363-12004iCR2#,3#..MTM199201-199610

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
