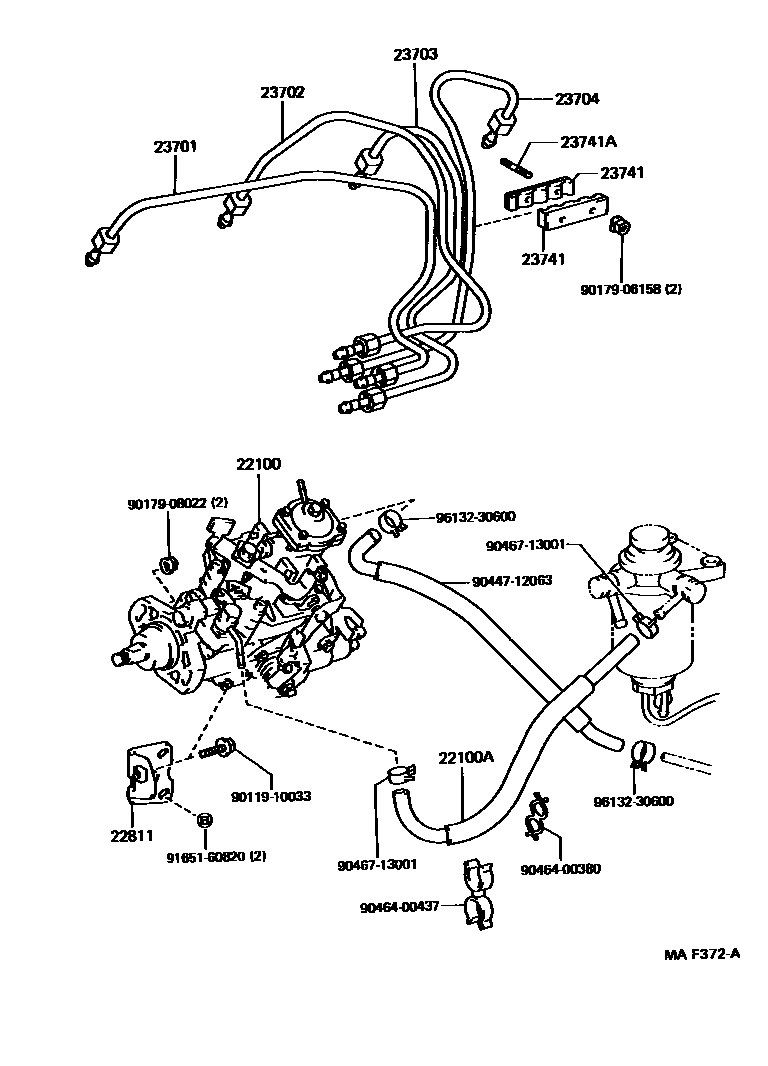

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6A650i2CT..CR21,28..MTM199201-199309

main22100-6A660i2CT..CR30,37..MTM199201-199309

main22100-6A680i2C..CR27..MTM199201-199309

main22100-6A690i2C..CR36..MTM199201-199309

main22100-6D340i2CT..CR21,28,30,37..ATM199201-199309

main22100-6D350i2C..CR27,36..ATM199201-199309

main22100-6D480i3CT..CR22,29,31,38..MTM199309-199610

main22100-6D490i3CT..CR22,29,31,38..ATM199309-199610

main22100-6D500i2C..CR27..MTM199309-199610

main22100-6D510i2C..CR36..MTM199309-199610

main22100-6D520i2C..CR36..ATM199309-199610

main22100-6D610i2C..CR27..ATM199309-199610

main22100-6D690i2C..CR27..ATM199408-199508

W(EGR)

main22100-6D691i2C..CR27..ATM199508-199610

W(EGR)

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14020i2C#,3CT..CR2#,3#199201-199610

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2CT..CR21,28,30,37..MTM199201-199309

main22811-64020i2CT..CR21,28,30,37..ATM;2C,3CT..CR22,27,29,31,36,38199201-199610

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64070i2C#..CR2#,3#199201-199309

main23701-64130i2C,3CT..CR2#,3#199309-199610

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64070i2C#..CR2#,3#199201-199309

main23702-64130i2C,3CT..CR2#,3#199309-199610

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64031i2C#..CR2#,3#199201-199309

main23703-64110i2C,3CT..CR2#,3#199309-199610

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64070i2C#..CR2#,3#199201-199309

main23704-64130i2C,3CT..CR2#,3#199309-199610

23741CLAMP, INJECTION PIPE, NO.1

main23741-64020×2i2C#,3CT..CR2#,3#199201-199610

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275×2i2C#,3CT..CR2#,3#199201-199610

9011910033

main90119-10033

9017906158

main90179-06158

9017908022

main90179-08022

9044712063

main90447-12063

9046400380

main90464-00380

9046400437

main90464-00437

9046713001

main90467-13001

9165160820

main91651-60820

9613230600

main96132-30600

18 parts on this diagram · 1 diagram in section
