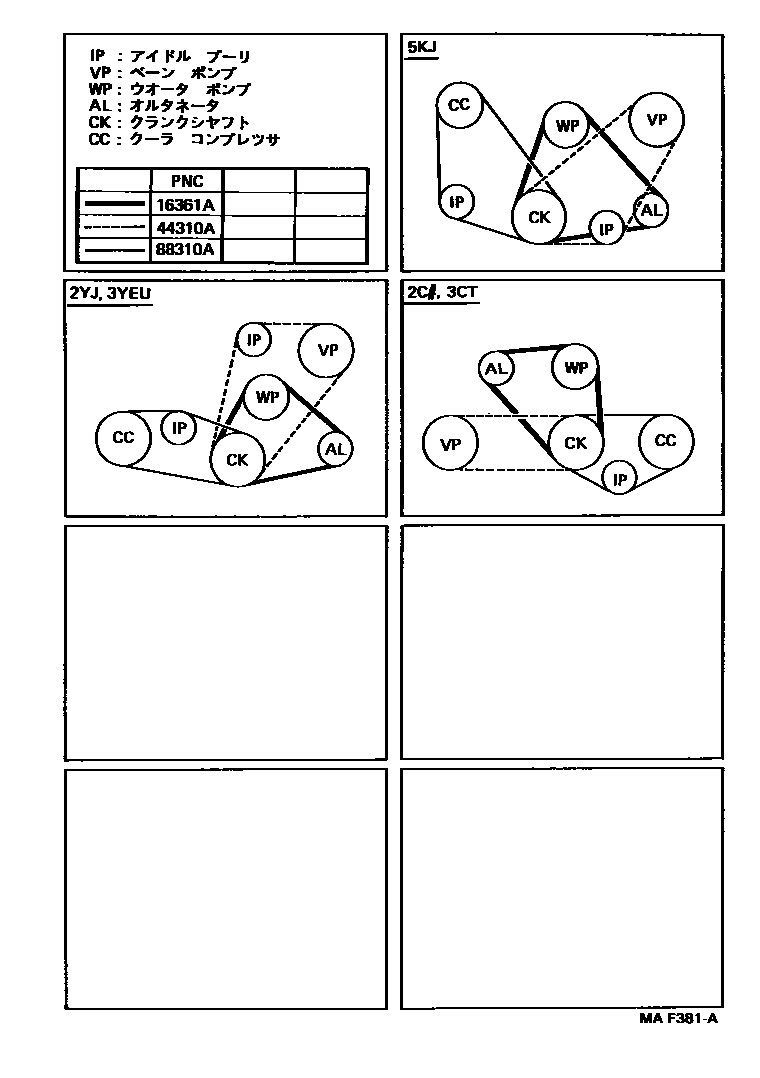

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02315i2C#..CR2#,3#199201-199202

main90916-02381i2C#..CR2#,3#199202-199309

main90916-02398i2C,3CT..CR2#,3#199309-199610

main99321-00870i5KJ..KR27199201-199610

main99321-00950i5KJ..KR27199201-199610

main99365-70820i2YJ,3YEU..YR2#,30199201-199402

main99365-80820i2YJ,3YEU..YR2#,30199402-199610

44310ABELT, V(FOR VANE PUMP)

main90916-02363iCR2#,3#199201-199309

main90916-02399iCR2#,3#199309-199610

main99332-00970iKR27199201-199610

main99332-01040iYR25199201-199610

main99332-01055iYR21,30199201-199610

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10880iYR21..MRF; YR25199201-199610

main99332-60835iCR29..MRF;CR21,22,27,28,30,31,36,37199201-199610

main99332-60910iYR21,30199201-199610

main99332-60980iKR27199201-199610

3 parts on this diagram · 1 diagram in section
