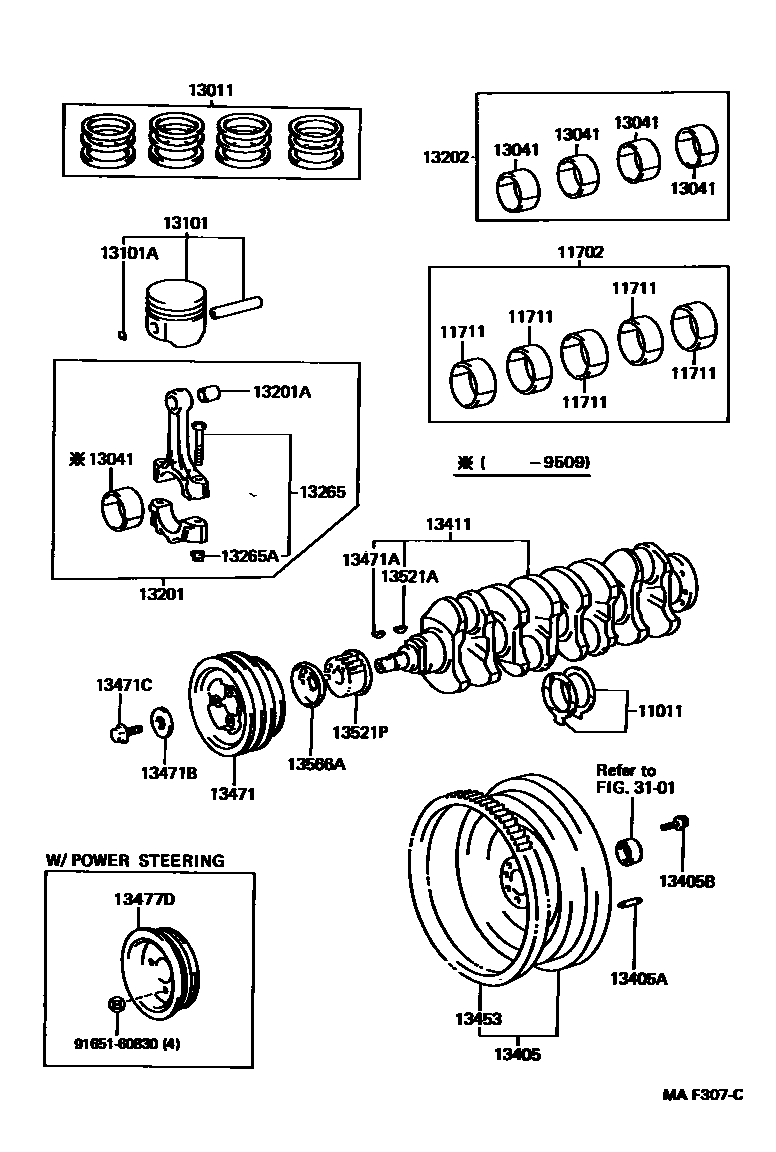

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-11010i5KJ..KR27199505-199610

main11011-22011i5KJ..KR27199201-199505

main11011-25010i2YJ,3YEU..YR2#,30199201-199610

main11011-64010i2C#,3CT..CR2#,3#199201-199610

main11012-64010i2C#,3CT..CR2#,3#199201-199610

main11013-64010i2C#,3CT..CR2#,3#199201-199610

11702BEARING SET, CRANKSHAFT

main11704-13011i5KJ..KR27199201-199610

main11704-64040i2C#..CR21,27,28,30,36,37199201-199412

main11704-64070i2C,3CT..CR2#,3#199412-199509

main11704-64071i2C,3CT..CR2#,3#199509-199610

main11704-71020i2YJ,3YEU..YR2#,30199201-199512

main11704-71030i2YJ,3YEU..YR2#,30199512-199610

main11705-13011i5KJ..KR27199201-199610

11711BEARING, CRANKSHAFT

main11071-71010-01i2YJ,3YEU..YR2#,30199512-199610

main11071-71010-02i2YJ,3YEU..YR2#,30199512-199610

main11071-71010-03i2YJ,3YEU..YR2#,30199512-199610

main11701-13011-03×5i5KJ..KR27199201-199610

MARK 3

main11701-13011-04×5i5KJ..KR27199201-199610

MARK 4

main11701-13011-05×5i5KJ..KR27199201-199610

MARK 5

main11701-13011-06×5i5KJ..KR27199201-199610

MARK 6

main11701-13011-07×5i5KJ..KR27199201-199610

MARK 7

main11701-64040-01×5i2C#,3CT..CR2#,3#199201-199412

main11701-64040-02×5i2C#,3CT..CR2#,3#199201-199412

main11701-64040-03×5i2C#,3CT..CR2#,3#199201-199412

main11701-64070-01×5i2C,3CT..CR2#,3#199412-199509

main11701-64070-02×5i2C,3CT..CR2#,3#199412-199509

main11701-64070-03×5i2C,3CT..CR2#,3#199412-199509

main11701-64071-01×5i2C,3CT..CR2#,3#199509-199610

main11701-64071-02×5i2C,3CT..CR2#,3#199509-199610

main11701-64071-03×5i2C,3CT..CR2#,3#199509-199610

main11701-64071-04×5i2C,3CT..CR2#,3#199509-199610

main11701-64071-05×5i2C,3CT..CR2#,3#199509-199610

main11701-71020-01×5i2YJ,3YEU..YR2#,30199201-199512

MARK 1

main11701-71020-02×5i2YJ,3YEU..YR2#,30199201-199512

MARK 2

main11701-71020-03×5i2YJ,3YEU..YR2#,30199201-199512

MARK 3

main11701-71030-01×4i2YJ,3YEU..YR2#,30199512-199610

main11701-71030-02×4i2YJ,3YEU..YR2#,30199512-199610

main11701-71030-03×4i2YJ,3YEU..YR2#,30199512-199610

13011RING SET, PISTON

main13011-13090i5KJ..KR27199201-199610

main13011-64190i2C..CR27,36199201-199209

main13011-64191i2C..CR27,36199209-199310

main13011-64210i2CT..CR21,28,30,37199201-199209

main13011-64211i2CT..CR21,28,30,37199209-199308

main13011-64212i2CT,3CT..CR21,22,28,29,30,31,37,38199308-199310

main13011-71012i2YJ,3YEU..YR2#,30199605-199610

main13011-71021i2YJ,3YEU..YR2#,30199201-199605

main13013-13090i5KJ..KR27199201-199610

main13013-64190i2C..CR27,36199201-199209

main13013-64191i2C..CR27,36199209-199310

main13013-64210i2CT..CR21,28,30,37199201-199209

main13013-64211i2CT..CR21,28,30,37199209-199308

main13013-64212i2CT,3CT..CR21,22,28,29,30,31,37,38199308-199310

main13013-71021i2YJ,3YEU..YR2#,30199201-199610

main13014-71021i2YJ,3YEU..YR2#,30199201-199610

main13015-71021i2YJ,3YEU..YR2#,30199201-199610

13041BEARING, CONNECTING ROD

main13041-13040-03×4i5KJ..KR27199201-199610

MARK 3

main13041-13040-04×4i5KJ..KR27199201-199610

MARK 4

main13041-13040-05×4i5KJ..KR27199201-199610

MARK 5

main13041-13040-06×4i5KJ..KR27199201-199610

MARK 6

main13041-13040-07×4i5KJ..KR27199201-199610

MARK 7

main13041-64041-01×4i2C#,3CT..CR2#,3#199201-199412

main13041-64041-02×4i2C#,3CT..CR2#,3#199201-199412

main13041-64041-03×4i2C#,3CT..CR2#,3#199201-199412

main13041-64070-01×4i2C,3CT..CR2#,3#199412-199509

main13041-64070-02×4i2C,3CT..CR2#,3#199412-199509

main13041-64070-03×4i2C,3CT..CR2#,3#199412-199509

main13041-64071-01×4i2C,3CT..CR2#,3#199509-199603

main13041-64071-02×4i2C,3CT..CR2#,3#199509-199603

main13041-64071-03×4i2C,3CT..CR2#,3#199509-199603

main13041-64071-04×4i2C,3CT..CR2#,3#199509-199603

main13041-64071-05×4i2C,3CT..CR2#,3#199509-199603

main13041-64072-01×4i2C,3CT..CR2#,3#199603-199610

main13041-64072-02×4i2C,3CT..CR2#,3#199603-199610

main13041-64072-03×4i2C,3CT..CR2#,3#199603-199610

main13041-64072-04×4i2C,3CT..CR2#,3#199603-199610

main13041-64072-05×4i2C,3CT..CR2#,3#199603-199610

main13041-71011-06×4i2YJ,3YEU..YR2#,30199201-199610

MARK 6

main13041-71011-07×4i2YJ,3YEU..YR2#,30199201-199610

MARK 7

main13041-71011-08×4i2YJ,3YEU..YR2#,30199201-199610

MARK 8

13101PISTON SUB-ASSY, W/PIN

main13101-13030-01×4i5KJ..KR27199201-199610

main13101-13030-02×4i5KJ..KR27199201-199610

main13101-13030-03×4i5KJ..KR27199201-199610

main13101-64110-01×4i2C..CR27,36199201-199209

main13101-64110-02×4i2C..CR27,36199201-199209

main13101-64110-03×4i2C..CR27,36199201-199209

main13101-64111-01×4i2C..CR27,36199209-199309

main13101-64111-02×4i2C..CR27,36199209-199309

main13101-64111-03×4i2C..CR27,36199209-199309

main13101-64121-01×4i2CT..CR21,28,30,37199201-199209

main13101-64121-02×4i2CT..CR21,28,30,37199201-199209

main13101-64121-03×4i2CT..CR21,28,30,37199201-199209

main13101-64122-01×4i2CT..CR21,28,30,37199209-199309

main13101-64122-02×4i2CT..CR21,28,30,37199209-199309

main13101-64122-03×4i2CT..CR21,28,30,37199209-199309

main13101-64141-01×4i2C..CR27,36199309-199610

main13101-64141-02×4i2C..CR27,36199309-199610

main13101-64141-03×4i2C..CR27,36199309-199610

main13101-64151-01×4i3CT..CR22,29,31,38199309-199408

main13101-64151-02×4i3CT..CR22,29,31,38199309-199408

main13101-64151-03×4i3CT..CR22,29,31,38199309-199408

main13101-64160-01×4i3CT..CR22,29,31,38199506-199610

main13101-64160-02×4i3CT..CR22,29,31,38199506-199610

main13101-64160-03×4i3CT..CR22,29,31,38199506-199610

main13101-64170-01×4i3CT..CR22,29,31,38199408-199506

main13101-64170-02×4i3CT..CR22,29,31,38199408-199506

main13101-64170-03×4i3CT..CR22,29,31,38199408-199506

main13101-72010-01×4i2YJ..YR25199201-199610

main13101-72010-02×4i2YJ..YR25199201-199610

main13101-72010-03×4i2YJ..YR25199201-199610

main13101-73010-01×4i3YEU..YR21,30199201-199610

main13101-73010-02×4i3YEU..YR21,30199201-199610

main13101-73010-03×4i3YEU..YR21,30199201-199610

main13103-13030×4i5KJ..KR27199201-199610

main13103-64110×4i2C..CR27,36199201-199209

main13103-64111×4i2C..CR27,36199209-199309

main13103-64121×4i2CT..CR21,28,30,37199201-199209

main13103-64122×4i2CT..CR21,28,30,37199209-199309

main13103-64141×4i2C..CR27,36199309-199610

main13103-64151×4i3CT..CR22,29,31,38199309-199408

main13103-64160×4i3CT..CR22,29,31,38199506-199610

main13103-64170×4i3CT..CR22,29,31,38199408-199506

main13103-72010×4i2YJ..YR25199201-199610

main13103-73010×4i3YEU..YR21,30199201-199610

main13104-72010×4i2YJ..YR25199201-199610

main13104-73010×4i3YEU..YR21,30199201-199610

main13105-72010×4i2YJ..YR25199201-199610

main13105-73010×4i3YEU..YR21,30199201-199610

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-21088×8i5KJ..KR27199201-199610

main90521-29003×8i2C#,3CT..CR2#,3#199201-199610

13201ROD SUB-ASSY, CONNECTING

main13201-13010×4i5KJ..KR27199201-199610

main13201-64031×4i2C,3CT..CR2#,3#199509-199603

main13201-64032×4i2C,3CT..CR2#,3#199603-199610

main13201-69075×4i2CT..CR21,28,30,37199201-199212

main13201-69076×4i2C#,3CT..CR2#,3#199212-199509

main13201-69115×4i2C..CR27,36199201-199212

main13201-71011×4i2YJ..YR25199201-199610

main13201-79045×4i3YEU..YR21,30199201-199610

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73070×4i5KJ..KR27199201-199610

main90999-73102×4i2CT..CR21,28,30,37199201-199212

main90999-73138×4i2C,3CT..CR2#,3#199607-199610

13202BEARING SET, CONNECTING ROD

main13204-13040i5KJ..KR27199201-199610

main13204-64041i2C#..CR21,27,28,30,36,37199201-199412

main13204-64070i2C,3CT..CR2#,3#199412-199509

main13204-64071i2C,3CT..CR2#,3#199509-199603

main13204-64072i2C,3CT..CR2#,3#199603-199610

main13204-71011i2YJ,3YEU..YR2#,30199201-199610

main13205-13040i5KJ..KR27199201-199610

main13206-13040i5KJ..KR27199201-199610

13265BOLT, CONNECTING ROD

main13265-29025×8i2YJ,3YEU..YR2#,30199201-199610

main13265-49015×8i2C#,3CT..CR2#,3#199201-199501

main13265-49045×8i2C,3CT..CR2#,3#199501-199610

main13265-70020×8i5KJ..KR27199201-199610

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i2YJ,3YEU..YR2#,30199201-199610

main90179-09006×8i5KJ..KR27199201-199610

main90179-10042×8i2C#,3CT..CR2#,3#199201-199610

13405FLYWHEEL SUB-ASSY

main13405-29125i5KJ..KR27..MTM199201-199610

main13405-64031i2C#..CR21,28,3#..MTM199201-199309

main13405-64040i2C..CR27..MTM199201-199610

main13405-64100i2C,3CT..CR22,29,3#..MTM199309-199610

main13405-72011i2YJ,3YEU..YR2#..MTM199201-199610

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2C#,3CT..CR2#,3#..MTM; 2YJ,3YEU..YR2#..MTM199201-199610

main90250-08120×3i5KJ..KR27..MTM199201-199610

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2YJ,3YEU..YR2#..MTM199201-199610

main90105-10045×8i2C#,3CT..CR2#,3#..MTM199201-199610

main90913-01005×6i5KJ..KR27..MTM199201-199610

13411CRANKSHAFT

main13411-13900i5KJ..KR27199201-199610

main13411-64901i2C#..CR21,27,28,30,36,37199201-199504

main13411-64903i3CT..CR22,29,31,38199309-199504

main13411-64904i2C..CR27,36199504-199509

main13411-64905i3CT..CR22,29,31,38199504-199509

main13411-64906i2C..CR27,36199509-199610

main13411-64907i3CT..CR22,29,31,38199509-199610

main13411-72010i2YJ..YR25199201-199610

main13411-73010i3YEU..YR21,30199201-199610

13453GEAR, FLYWHEEL RING

main13453-10010i5KJ..KR27..MTM199201-199610

main13453-20010i2YJ,3YEU..YR2#..MTM199201-199610

main13453-64011i2C#,3CT..CR2#,3#..MTM199201-199610

13471PULLEY, CRANKSHAFT

main13408-13010i5KJ..KR27199201-199610

main13408-64080i2C#..CR2#,3#199201-199309

main13408-64110i2C,3CT..CR2#,3#199309-199610

main13408-73010i2YJ,3YEU..YR2#,30199201-199610

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2YJ,3YEU..YR2#,30; 5KJ..KR27199209-199610

main90280-05010i2YJ,3YEU..YR2#,30199204-199209

main95161-20516i2C#..CR2#,3#199201-199206

main95161-30516i2C#,3CT..CR2#,3#199206-199610

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90201-14030i2C#,3CT..CR2#,3#199201-199610

main90209-13003i5KJ..KR27199201-199610

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i5KJ..KR27199201-199610

main90105-14069i2YJ,3YEU..YR2#,30199201-199610

main90105-14089i2C#,3CT..CR2#,3#199201-199610

13477PULLEY, CRANKSHAFT, NO.2

main88451-20110i2YJ..YR25; 3YEU..YR21..MRF199201-199610

main88451-27020i5KJ..KR27199201-199610

main88451-28010i3YEU..YR21,30199201-199610

13477DPULLEY, VANE PUMP DRIVE

main44319-27010i2C#..CR2#,3#199201-199309

main44319-27020i5KJ..KR27199201-199610

main44319-28013i2YJ,3YEU..YR2#,30199201-199610

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-13020i5KJ..KR27199201-199610

main13521-33010i2YJ,3YEU..YR2#,30199201-199610

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i2YJ,3YEU..YR2#,30; 5KJ..KR27199209-199610

main90280-05010i2YJ,3YEU..YR2#,30; 5KJ..KR27199201-199204

main95161-20622i2C#..CR2#,3#199201-199206

main95161-30622i2C#,3CT..CR2#,3#199206-199610

13521PPULLEY, CRANKSHAFT TIMING

main13521-64011i2C#,3CT..CR2#,3#199201-199610

13566AGUIDE, TIMING BELT

main13566-64011i2C#,3CT..CR2#,3#199201-199610

3101CLUTCH & RELEASE FORK

→ Go to FIG 31-01

9165160830

main91651-60830

29 parts on this diagram · 3 diagrams in section
