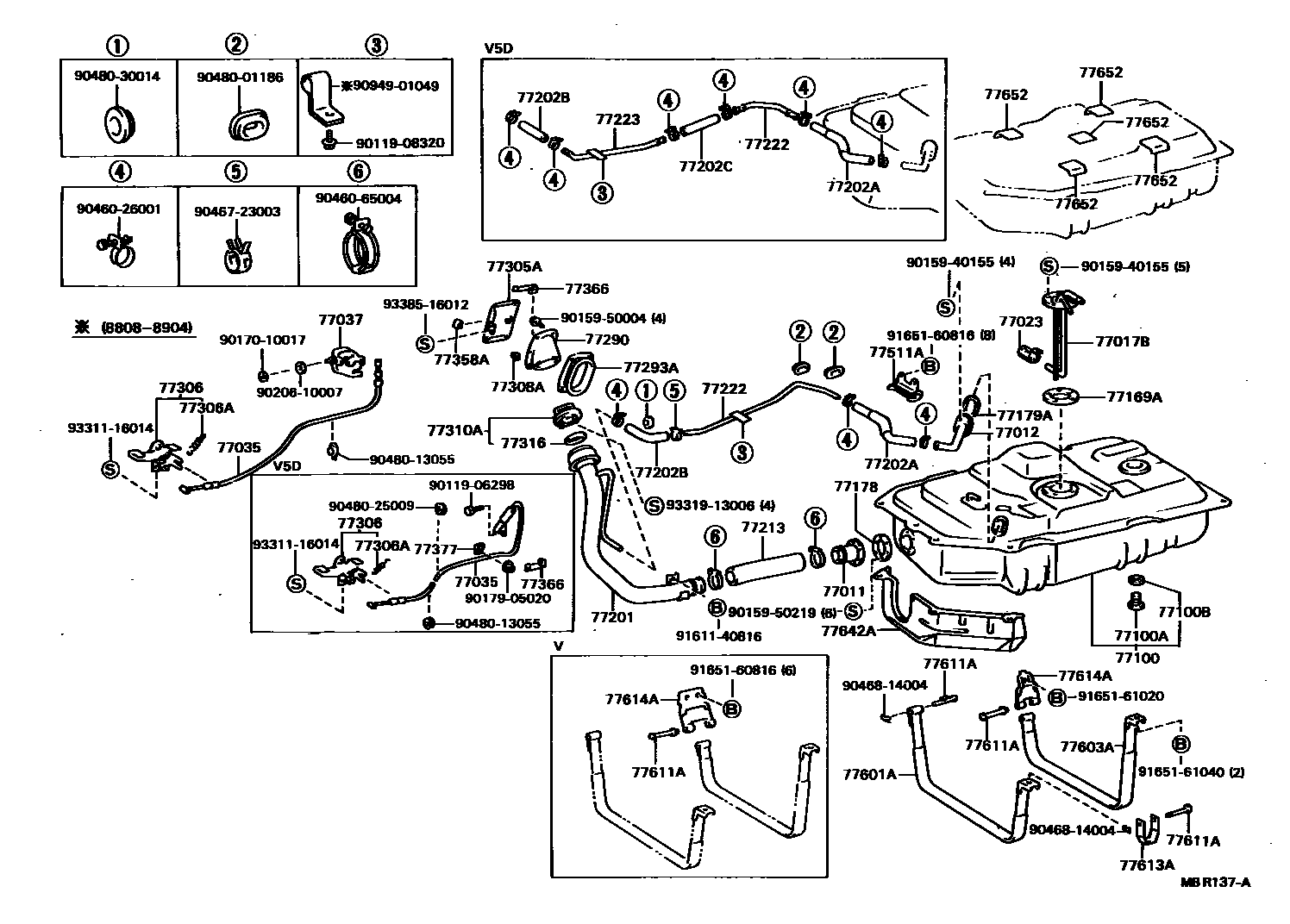

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-26020iCR2#,3#,KR2#,YR2#,3#198909-199201

main77011-27010iCR2#,3#,KR26,YR2#,3#198808-198909

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-28020iCR21,28,3#,YR20,21,28,3#198808-199201

main77012-28040iCR27,KR2#,YR25198808-199201

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-28010iKR2#,YR20,25,28198808-199201

main77017-28020iCR21,27..D,G,N198808-199201

main77017-28030iCR21,28..HRF,SRF198808-199201

main77017-28050iCR3#198808-199201

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iKR2#,YR20,25,28198808-199201

main77023-22040iCR2#,3#198808-199201

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28010iCR27,36,KR2#,YR25..V5D198808-199201

main77035-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

77100TANK ASSY, FUEL

main77001-28190iYR20;CR21,YR28..B,D,G198808-199201

main77001-28200iYR21198808-199201

main77001-28210iCR21,28..HRF,SRF198808-199201

main77001-28220iCR27,KR2#,YR25198808-199201

main77001-28230iYR3#198808-199201

main77001-28240iCR36,37198808-199201

main77001-28250iCR30198808-199201

77100APLUG(FOR FUEL TANK)

main90105-12116iCR2#,3#,KR2#,YR2#,3#198808-199201

77100BGASKET(FOR FUEL TANK)

main90430-12245iCR2#,3#,KR2#,YR2#,3#198808-199201

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iCR2#,3#,KR2#,YR20,25,28198808-199201

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020×2iCR2#,3#,KR26,YR2#,3#198808-198909

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iCR2#,3#,KR2#,YR2#,3#198808-199201

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28080iCR2#,3#,KR2#,YR2#,3#198808-199201

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-28030iCR21,28,3#,YR20,21,28,3#198808-199201

main77259-28040iCR27,KR2#,YR25198808-199201

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77279-28010iCR21,30,YR20,21,30; CR27,36..02S; CR28,37;CR27..4FC..D;CR27..V4D..N;CR36..V4D..05S;CR27..V4D..5F..05S..D; YR28,36;YR25..V4D..N198904-199201

main90445-24029iCR27,36..V4D..SRF..5F..05S..D198908-198910

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-24010iCR27,KR26,YR25..V5D198808-198904

77213HOSE, FUEL TANK SUB INLET

main77217-28030iCR2#,3#,KR2#,YR2#,3#198808-199201

77222TUBE, FUEL TANK BREATHER, NO.2

main77013-28020iCR21,30,YR20,21,30; CR27,36..02S; CR28,37;CR27..4FC..D;CR27..V4D..N;CR36..V4D..05S;CR27..V4D..5F..05S..D; YR28,36;YR25..V4D..N198904-199201

main77222-28020iCR27,KR26,YR25..V4D;CR21,28,3#,YR20,21,28,3#198808-198904

main77222-28030iCR27,KR26,YR25..V5D198808-198904

77223TUBE, FUEL TANK BREATHER, NO.3

main77014-28010iCR27,28,36,37,KR2#,YR25,28,36198904-199201

main77223-28030iCR27,KR26,YR25..V5D198808-198904

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-28010iCR2#,3#,KR2#,YR2#,3#198808-199201

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-28010iCR2#,3#,KR2#,YR2#,3#198808-199201

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-87005iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

main77305-87006iCR27,36,KR2#,YR25..V5D198808-199201

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iCR2#,3#,KR2#,YR2#,3#198808-199201

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001×2iCR2#,3#,KR2#,YR2#,3#198808-199201

77310ACAP ASSY, FUEL TANK

main77310-12100iKR2#,YR2#,3#198808-199201

main77310-35061iCR2#,3#198808-199201

77316GASKET, FUEL TANK CAP

main77316-12050iCR2#,3#,KR2#,YR2#,3#198808-199201

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iCR2#,3#,KR26,YR2#,3#198808-198811

main77358-87002iCR2#,3#,KR2#,YR2#,3#198811-199009

main77358-87003iCR2#,3#,KR27,YR2#,3#199009-199201

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-28010iCR27,36,KR2#,YR25..V5D198808-199201

77511ABRACKET, FUEL TANK

main77511-28050iCR2#,KR2#,YR2#198808-199201

main77511-28060iCR3#,YR3#198808-199201

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28031iYR20;CR21,27,KR2#,YR25,28..B,D,G,N198808-199201

main77601-28040iCR21,28,YR21..HRF,SRF198808-199201

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28021iYR20;CR21,27,KR2#,YR25,28..B,D,G,N198808-199201

main77603-28050iCR21,28,YR21..HRF,SRF198808-199201

main77603-28060iCR30,YR30198808-199201

main77603-28070iCR36,37,YR36198808-199201

77611APIN (FOR FUEL TANK BAND)

main77653-28010iCR2#,KR2#,YR2#; CR30,YR30198808-199201

REAR-RH

main90240-08020iCR2#,KR2#,YR2#; CR36,37,YR36198808-199201

FRONT-RH

main90240-08047iCR2#,KR2#,YR2#198808-199201

FRONT-LH

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-28030iYR20;CR21,27,KR2#,YR25,28..B,D,G,N198808-199201

main77613-28040iCR21,28,YR21..HRF,SRF198808-199201

77614ABAND, FUEL TANK, NO.2 RH

main77614-28010iCR21,30,YR20,21,30198808-199201

main77614-28020iCR27,28,36,37,KR2#,YR25,28,36198808-199201

77642APROTECTOR, FUEL TANK, NO.2

main77606-28010iYR20;CR21,27,KR2#,YR25,28..B,D,G,N198808-199201

main77606-28020iCR21,28,YR21..HRF,SRF198808-199201

77652CUSHION, FUEL TANK, NO.1

main77651-28010×2iCR27,36,37,KR26,YR25; YR36..5F;CR21,28,30,YR20,21,28,30198808-198904

70 X 70

main77651-28020×2iCR36,YR36..4FC; CR36,YR36..5F;CR2#,30,37,KR2#,YR2#,30198808-199201

70 X 110

9011906298

main90119-06298

9011908320

main90119-08320

9015940155

main90159-40155

9015950004

main90159-50004

9015950219

main90159-50219

9017010017

main90170-10017

9017905020

main90179-05020

9020610007

main90206-10007

9046026001

main90460-26001

9046065004

main90460-65004

9046723003

main90467-23003

9046814004

main90468-14004

9048001186

main90480-01186

9048013055

main90480-13055

9048025009

main90480-25009

9048030014

main90480-30014

9094901049

main90949-01049

9161140816

main91611-40816

9165160816

main91651-60816

9165161020

main91651-61020

9165161040

main91651-61040

9331116014

main93311-16014

9331913006

main93319-13006

9338516012

main93385-16012

62 parts on this diagram · 6 diagrams in section
