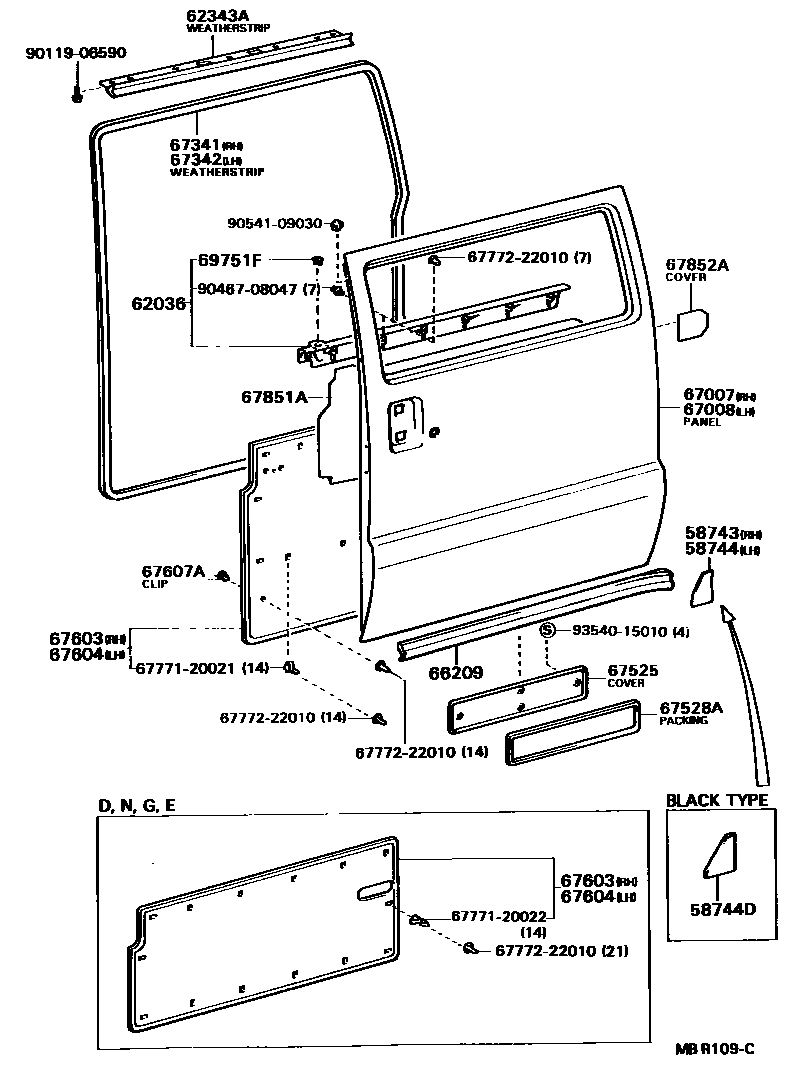

REAR DOOR PANEL & GLASS

58743PROTECTER, SLIDE DOOR PANEL, RH

main58743-87001iCR27,36,KR2#,YR25..V5D198808-199201

58744PROTECTER, SLIDE DOOR PANEL, LH

main58744-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

58744DPROTECTOR, SLIDE DOOR PANEL, LH

main58744-87002iCR2#,3#,KR2#,YR2#,3#198903-199201

main58744-87003iCR21,30,YR20,21,30..E,Q198904-199201

62036TRIM SUB-ASSY, REAR DOOR TRIM, UPPER LH

main62036-87002-03iCR21,30,YR21,30..Q198808-199201

GRAY,TRIM1#

main62036-87002-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main67618-87001-06iCR21,30,YR20,21,30..E,G198808-199201

LIGHT SABLE,TRIM4#

main67618-87001-13iCR21,30,YR20,21,30..E,G198808-199201

GRAY,TRIM1#

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#; CR27,36,KR2#,YR25..V5D198808-199201

66209PROTECTOR SUB-ASSY, REAR

main66209-87001iCR2#,3#,KR2#,YR2#,3#198904-199201

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-87004iCR27,36,KR2#,YR25..V5D..D198808-199201

main67003-87005iCR27,YR25..V5D..N198808-199201

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-87020iCR21,30,YR20,21,30..E,Q198808-199201

main67004-87021iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main67004-87022iCR21,30,YR20..G198808-199201

main67004-87023iCR21,30,YR20,21,30..E,Q198808-199201

main67004-87024iCR27,28,36,YR25..F,N198808-199201

67341WEATHERSTRIP, SLIDE DOOR, RH

main67871-87001iCR27,36,KR2#,YR25..V5D198808-199201

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-28010iCR21,30,YR20,21,30..E,G,Q198808-199201

main67525-87001iCR27,36,KR2#,YR25..V4D;CR21,28,37,YR20,28,36..B,D,F; CR27,36,KR2#,YR25..V5D198808-199201

67528APACKING, SLIDE DOOR LOWER COVER

main67528-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#; CR27,36,KR2#,YR25..V5D198808-199201

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-87005-03iCR27,36,KR2#,YR25..V5D198808-199201

main67630-87006-03iCR27,36,KR2#,YR25..V5D198808-199201

GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-87031-03iCR21,30,YR20,21,30..E198901-199201

SHADOW GRAY,TRIM1#

main67640-87031-06iCR21,30,YR20,21,30..E198901-199201

SABLE,TRIM4#

main67640-87032-03iCR21,30,YR20,21,30..E198808-198901

SHADOW GRAY,TRIM1#

main67640-87032-06iCR21,30,YR20,21,30..E198808-198901

SABLE,TRIM4#

main67640-87033-03iCR21,30,YR20..G198808-198901

SHADOW GRAY,TRIM1#

main67640-87033-06iCR21,30,YR20..G198808-198901

SABLE,TRIM4#

main67640-87034-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

main67640-87035-03iCR21,30,YR20..G198808-198901

main67640-87035-06iCR21,30,YR20..G198808-198901

main67640-87036-03iCR21,30,YR20,21,30..E198808-198901

main67640-87036-06iCR21,30,YR20,21,30..E198808-198901

main67640-87038-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

GRAY,TRIM1#

main67640-87039-03iCR21,30,YR21,30..Q198808-198901

SHADOW GRAY,TRIM1#

main67640-87039-06iCR21,30,YR21,30..Q198808-198901

SABLE,TRIM4#

main67640-87043-03iCR21,30,YR21,30..Q198808-198901

main67640-87043-06iCR21,30,YR21,30..Q198808-198901

main67640-87044-03iCR21,30,YR20..G198901-199201

GRAY,TRIM1#

main67640-87044-06iCR21,30,YR20..G198901-199201

SABLE,TRIM4#

main67640-87045-03iCR21,30,YR20..G198901-199201

main67640-87045-06iCR21,30,YR20..G198901-199201

main67640-87046-03iCR21,30,YR20,21,30..E198901-199201

main67640-87046-06iCR21,30,YR20,21,30..E198901-199201

main67640-87047-03iCR21,30,YR21,30..Q198901-199201

SHADOW GRAY,TRIM1#

main67640-87047-06iCR21,30,YR21,30..Q198901-199201

SABLE,TRIM4#

main67640-87048-03iCR21,30,YR21,30..Q198901-199201

main67640-87048-06iCR21,30,YR21,30..Q198901-199201

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-10016-23×7iCR21,30,YR20,21,30..E,G,Q198809-198901

SHADOW GRAY,TRIM1#

main90467-10016-26×9iCR21,30,YR20,21,30..E,G,Q198901-199201

SABLE,TRIM4#

main90467-12078-13×7iCR21,30,YR20,21,30..E,G,Q198808-198809

SHADOW GRAY,TRIM1#

main90467-12078-56×7iCR21,30,YR20,21,30..E,G,Q198808-198809

SABLE,TRIM4#

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-87002iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#; CR27,36,KR2#,YR25..V5D198808-199201

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#; CR27,36,KR2#,YR25..V5D198808-199201

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-87001iCR21,30,YR20,21,30..E,G; CR21,30,YR21,30..Q198808-199201

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906590

main90119-06590

9046708047

main90467-08047

9054109030

main90541-09030

9354015010

main93540-15010

25 parts on this diagram · 1 diagram in section
