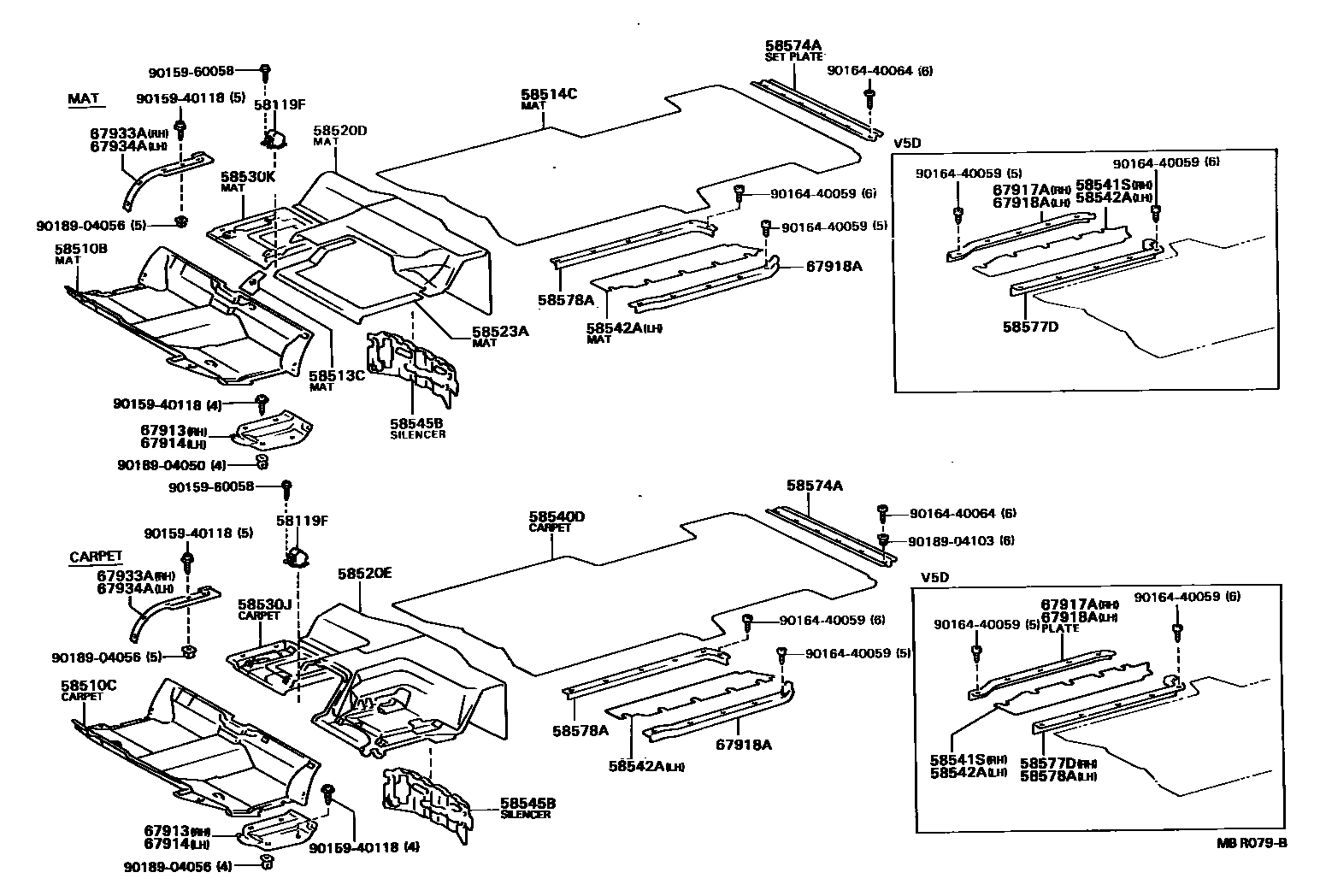

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58119FCOVER, FRONT FLOOR SIDE, FRONT

main58119-87002-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

58510BMAT, FRONT FLOOR, FRONT

main58510-87030-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

main58510-87G18-03iCR2#,36,37,YR25,28,36..(4FC,5F)..(B,D)198808-199201

SHADOW GRAY,TRIM1#

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-87069-03iCR2#,30,36,YR20,25..F,G,N198808-199201

SHADOW GRAY,TRIM1#

main58510-87069-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main58510-87070-03iCR21,30,YR20,21,30..E198808-198905

SHADOW GRAY,TRIM1#

main58510-87070-06iCR21,30,YR20,21,30..E198808-198905

SABLE,TRIM4#

main58510-87071-03iCR21,30,YR21,30..Q198808-198905

SHADOW GRAY,TRIM1#

main58510-87071-06iCR21,30,YR21,30..Q198808-198905

SABLE,TRIM4#

main58510-87G19-03iCR21,30,YR21,30..Q198905-199201

SHADOW GRAY,TRIM1#

main58510-87G19-06iCR21,30,YR21,30..Q198905-199201

SABLE,TRIM4#

main58510-87G20-03iCR21,30,YR20,21,30..E198905-199201

SHADOW GRAY,TRIM1#

main58510-87G20-06iCR21,30,YR20,21,30..E198905-199201

SABLE,TRIM4#

58513CMAT, FLOOR, FRONT CENTER

main58513-87041-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

58514CMAT, FROOR, REAR

main58514-87035-03iKR2#..V4D..03S198808-199201

SHADOW GRAY,TRIM1#

main58514-87036-03iKR2#..V4D..06S198808-199201

SHADOW GRAY,TRIM1#

main58514-87037-03iKR2#..V5D..03S198808-199201

SHADOW GRAY,TRIM1#

main58514-87038-03iKR2#..V5D..06S198808-199201

SHADOW GRAY,TRIM1#

main58514-87039-03iCR27,36,YR25..02S,03S198808-199201

SHADOW GRAY,TRIM1#

main58514-87040-03iCR27,36,YR25..V4D..(05S,06S)..D198808-199201

SHADOW GRAY,TRIM1#

main58514-87042-03iCR27,36,YR25..V5D..D198808-199201

SHADOW GRAY,TRIM1#

main58514-87074-03iCR28,37..B; YR28,36198808-199201

main58514-87077-03iCR28,37,YR28,36..B198808-199201

SHADOW GRAY,TRIM1#

main58514-87G01-03iCR36..4FC..D;CR27..V4D..HRF..4FC..D198908-199201

main58514-87G02-03iCR27,36..02S198808-199201

main58540-87G29-03iCR21,YR20..D198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

58520DMAT ASSY, FRONT FLOOR, FRONT NO.2

main58520-87G61-03iYR25..V5D..06S198808-199201

SHADOW GRAY,TRIM1#

main58520-87G62-03iKR2#..V4D198808-199201

SHADOW GRAY,TRIM1#

main58520-87G63-03iKR2#..V5D198808-199201

SHADOW GRAY,TRIM1#

main58520-87G64-03iYR28..06S;YR25..V4D..MTM..D198808-199201

SHADOW GRAY,TRIM1#

main58520-87G65-03iYR20..D198808-199201

main58520-87G66-03iYR20..D198808-199201

SHADOW GRAY,TRIM1#

main58520-87G69-03iCR28,37,YR28,36..05S..B;CR27,36,YR25..V4D..(02S,05S)..D198808-199201

SHADOW GRAY,TRIM1#

main58520-87G73-03iCR27,36,YR25..V4D..N198808-199201

main58520-87G75-03iYR28..06S198808-199201

58520ECARPET ASSY, FRONT FLOOR, FRONT NO.2

main58060-87001-03iCR28..F198908-199201

SHADOW GRAY,TRIM1#

main58060-87002-03iCR28..F198908-199201

main58520-87G57-03iCR27,36..V4D..05S..D; CR28,37,YR36..B; YR28..05S198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

main58520-87G58-03iCR27,36..V5D..D; YR25..V5D..05S..D198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

main58520-87G67-03iCR27,36,YR25..V4D..N198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

main58520-87G68-03iCR27,YR25..V5D..N198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

main58520-87G70-03iCR21,30,YR20..G198808-199201

SHADOW GRAY,TRIM1#

main58520-87G70-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main58520-87G71-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main58520-87G71-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main58520-87G72-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main58520-87G72-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main58520-87G74-03iCR21..D198808-199201

main58520-87G76-03iCR21..D198808-199201

SHADOW GRAY,SHADOW GRAY,TRIM1#

main58520-87K21-03iCR21,30,YR21,30..E198903-199201

SUPER EXTRA LIMITED,SHADOW GRAY,TRIM1#

main58520-87K21-06iCR21,30,YR21,30..E198909-199201

58523AMAT, SEAT FLOOR

main58523-87008-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

58530JCARPET ASSY, FLOOR, CENTER

main58530-87073-03iCR21..D198808-199201

SHADOW GRAY,TRIM1#

main58530-87G08-03iCR2#,30,36,YR20,25..F,G,N198808-199201

SHADOW GRAY,TRIM1#

main58530-87G08-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main58530-87G09-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main58530-87G09-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main58530-87G10-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main58530-87G10-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

58530KMAT ASSY, FLOOR, CENTER

main58530-87065-03iKR2#,YR20,25,28..MTM..(B,D)198808-199201

SHADOW GRAY,TRIM1#

main58530-87073-03iCR27,28,36,37,YR25,28,36..(02S,05S)..(B,D)198808-199201

SHADOW GRAY,TRIM1#

58540DCARPET ASSY, FLOOR, REAR

main58540-87069-03iCR21,30,YR20..G198808-199201

SHADOW GRAY,TRIM1#

main58540-87069-06iCR21,30,YR20..G198808-199201

SABLE,TRIM4#

main58540-87G39-03iCR21,30,YR20,21,30..E198808-199201

main58540-87G39-06iCR21,30,YR20,21,30..E198808-199201

main58540-87G40-03iCR27,YR25..V5D..N198808-199201

SHADOW GRAY,TRIM1#

main58540-87G42-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

main58540-87G42-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

main58540-87G43-03iCR21,30,YR20,21,30..E198808-199201

SHADOW GRAY,TRIM1#

main58540-87G43-06iCR21,30,YR20,21,30..E198808-199201

SABLE,TRIM4#

main58540-87G44-03iYR20..HRF..E198808-199201

main58540-87G44-06iYR20..HRF..E198808-199201

main58540-87G45-03iYR20..HRF..E198808-199201

main58540-87G45-06iYR20..HRF..E198808-199201

main58540-87G46-03iCR28,36..F,N;CR27,YR25..V4D..N198808-199201

SHADOW GRAY,TRIM1#

main58540-87G47-03iCR36..5F..N;CR27..V4D..N; YR25..V4D..N198808-199201

58541SSILENCER, MAT STEP, RH

main58541-87002-03iCR27,36,KR2#,YR25..V5D..D198808-199201

SHADOW GRAY,TRIM1#

main58541-87004-03iCR27,YR25..V5D..N198808-199201

SHADOW GRAY,TRIM1#

58542ASILENCER, MAT STEP, LH

main58542-87002-03iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

SHADOW GRAY,TRIM1#

main58542-87014-03iCR27,28,36,YR25..F,N198808-199201

SHADOW GRAY,TRIM1#

58545BSILENCER, HEADER PANEL

main58545-87001iCR2#,3#,YR2#,3#198808-199201

main58545-87002iKR2#198808-199201

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-87002-03iCR21,30,YR20,21,30..E,G,Q198808-199201

SHADOW GRAY,TRIM1#

main58574-87002-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

main58574-87004iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH

main58577-87001iCR27,36,KR2#,YR25..V5D198808-199201

58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH

main58578-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

67913PLATE, FRONT DOOR SCUFF, RH

main67913-87004-13iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main67913-87004-16iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-87001-13iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main67914-87001-16iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-87001iCR27,36,KR2#,YR25..V5D198808-199201

67918APLATE, REAR DOOR SCUFF, LH

main67918-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D,F,N198808-199201

main67920-87001-03iCR21,YR20,21..E,Q198808-198908

SHADOW GRAY,TRIM1#

main67920-87001-16iCR21,YR20,21..E,Q198808-198908

SABLE,TRIM4#

main67920-87004-03iCR21,YR20..G198808-199201

SHADOW GRAY,TRIM1#

main67920-87004-16iCR21,YR20..G198808-199201

SABLE,TRIM4#

main67920-87007-03iCR30,YR30..E,Q198808-198908

SHADOW GRAY,TRIM1#

main67920-87007-06iCR30,YR30..E,Q198808-198908

SABLE,TRIM4#

main67920-87008-03iCR30..G198808-199201

SHADOW GRAY,TRIM1#

main67920-87008-06iCR30..G198808-199201

SABLE,TRIM4#

67933APLATE, FRONT DOOR SCUFF, REAR RH

main67933-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main67933-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

67934APLATE, FRONT DOOR SCUFF, REAR LH

main67934-87001-03iCR2#,3#,KR2#,YR2#,3#198808-199201

SHADOW GRAY,TRIM1#

main67934-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

SABLE,TRIM4#

9015940118

main90159-40118

9015960058

main90159-60058

9016440059

main90164-40059

9016440064

main90164-40064

9018904050

main90189-04050

9018904056

main90189-04056

9018904103

main90189-04103

30 parts on this diagram · 3 diagrams in section
