INDICATOR

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

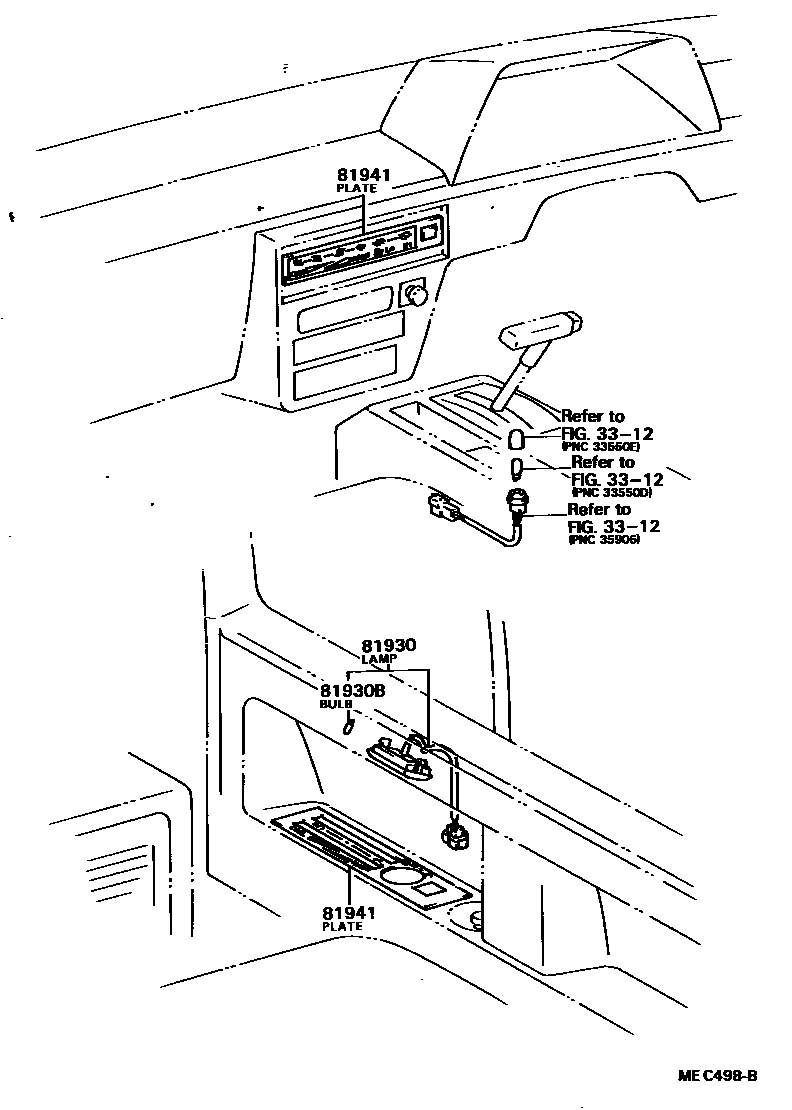

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-87004iCR26,27,36..V4D..05S198408-198808

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iCR21,28,30,37,YR20,21,28,3#; YR26..V4D..N198211-198808

81941PLATE, HEATER CONTROL NAME

main55519-28050iCR26,27,YR26..V4D..05S198408-198508

RR HEATER

main55519-28051iCR26,27,36..V4D..05S; YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,YR21,28,3#..05S,06S,08S; YR26..V4D..N198508-198808

RR HEATER

main55519-28140iYR21,30;YR20..MRF..08S;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

RR HEATER,W/*ODAC

main55519-28151iCR30,YR30..Q198510-198808

RR HEATER,W/*AAC

main55519-87003iCR2#,KR26,YR2#198211-198408

FR HEATER

main55519-87004iCR21;CR26..V4D..05S; YR20,21; YR26..V4D..N198211-198408

RR HEATER

main55519-87006iCR2#,KR26,YR2#198408-198508

FR HEATER

main55519-87010iYR20,21..Q198408-198508

W/FR & RR HEATER

main55519-87011iCR21,YR20,21198408-198508

RR HEATER

main55519-87013iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

FR HEATER

main55519-87014iYR20,21,30..Q198508-198708

FR HEATER

main55519-87015iCR30,YR30..Q198508-198808

FR HEATER,W/*AAC

main55519-87017iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

RR HEATER,W/*SNR & *SKR

4 parts on this diagram · 1 diagram in section
