CORNERING LAMP

81360ELAMP ASSY, CORNERING, RH

main81360-87003iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81360-87004iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81360FBULB, CORNERING LAMP

main90981-13037×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

main99132-12050×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

81361BLENS & BODY, CORNERING LAMP, RH

main81361-87003iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81361-87004iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81365SOCKET & WIRE, CORNERING LAMP

main81365-87003×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81365-87004×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81390ELAMP ASSY, CORNERING, LH

main81390-87001iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81390-87002iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

81391BLENS & BODY, CORNERING LAMP, LH

main81391-87001iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

TOWN ACE

main81391-87002iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#198508-198808

MASTER ACE

8136987003COVER, SPOT LAMP

main81369-87003

8155995J00MOULDING, REAR COMBINATION LAMP, RH

main81559-95J00

9004468008

main90044-68008

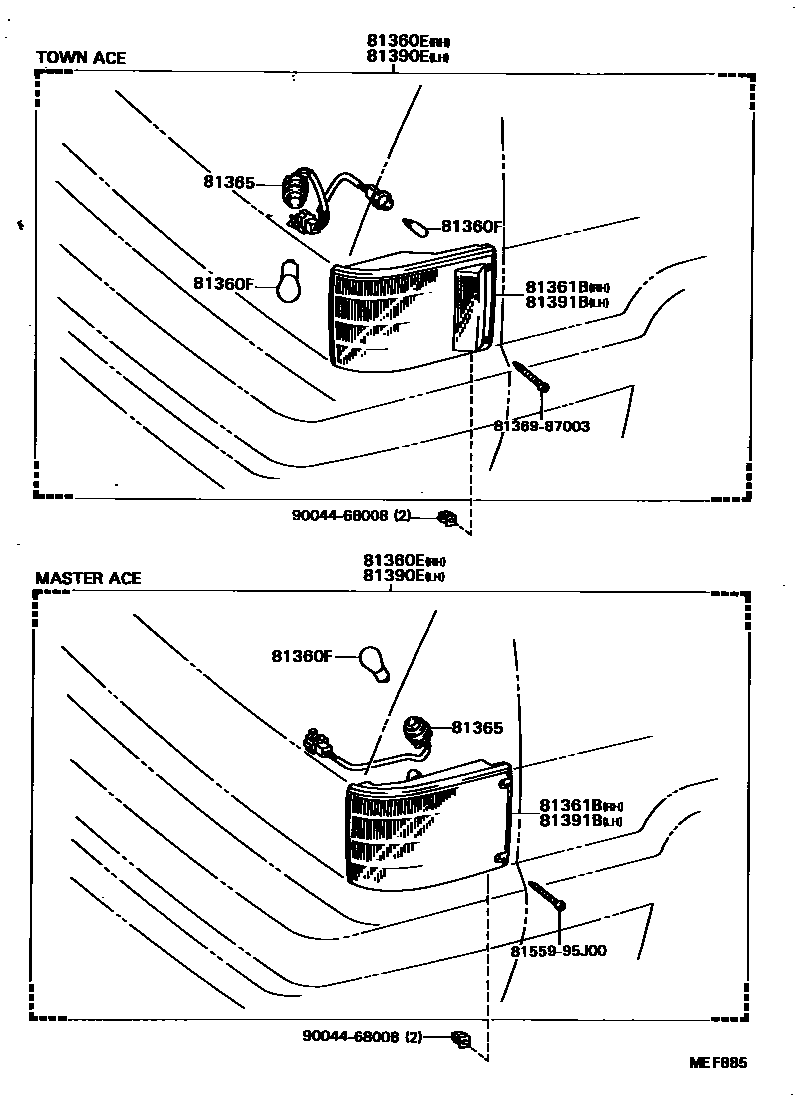

9 parts on this diagram · 1 diagram in section
