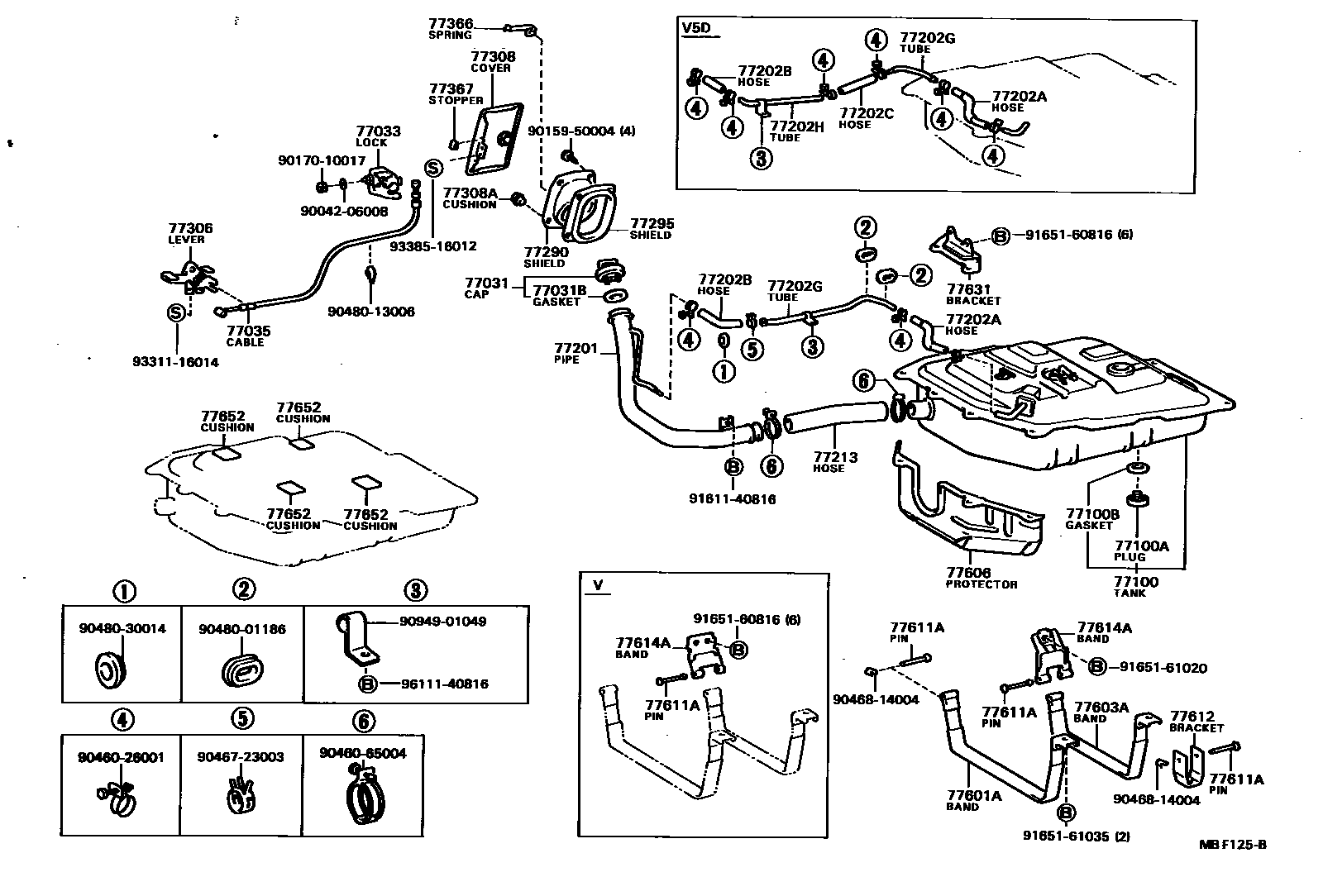

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

77031CAP ASSY, FUEL TANK

main77310-12100iKR26,YR2#,3#198211-198808

main77310-35061iCR2#,3#198211-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCR2#,30,36,KR26,YR2#,3#198211-198808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-87001iCR21,30,YR20,21,30..E,Q,X198211-198608

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28010iCR26,27,36,KR26,YR26..V5D198608-198808

main77035-87001iCR21,30,YR20,21,30..E,Q,X198211-198608

77100TANK ASSY, FUEL

main77001-28060iYR20..HRF..5F..G;YR20..MRF..(08S,09S);YR20,28..(HRF,SRF)..(B,E)198708-198803

main77001-28080iYR21198508-198803

main77001-28120iCR28198708-198808

main77001-28130iYR3#198510-198803

main77001-28140iCR3#198510-198608

main77001-28170iCR26,27,KR26,YR26198608-198803

main77001-28180iCR36,37198608-198803

main77001-28190iCR21..MRF; YR20..HRF..5F..G;YR20..MRF..(08S,09S);YR20,28..(HRF,SRF)..(B,E)198803-198808

main77001-28200iYR21198803-198808

main77001-28220iCR26,27,KR26,YR26198803-198808

main77001-28230iYR3#198803-198808

main77001-28240iCR36,37198803-198808

main77100-28010iKR26,YR20,26198211-198312

main77100-28900iYR21198305-198508

77100APLUG(FOR FUEL TANK)

main90105-12116iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198803-198808

main90341-20003iCR2#,KR26,YR2#198211-198503

main90341-20004iYR20..HRF..5F..G;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198503-198803

77100BGASKET(FOR FUEL TANK)

main90430-12245iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198803-198808

main90430-20006iCR2#,KR26,YR2#198211-198503

main90430-20007iYR20..HRF..5F..G;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198503-198803

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28050iCR2#,3#,KR26,YR2#,3#198211-198808

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-28030iCR2#,3#,KR26,YR2#,3#198211-198711

main77259-28040iCR26,27,KR26,YR26198711-198808

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77279-28010iCR21,28,YR20,21,28;CR26,27,KR26,YR26..V4D198211-198808

main90445-24029iCR26,27,KR26,YR26..V5D198211-198808

L=90

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-24010iCR26,27,KR26,YR26..V5D198211-198808

77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)

main77222-28020iCR37198708-198808

main77222-28030iCR26,27,KR26,YR26..V5D198211-198808

77202HTUBE, FUEL, NO.3 (FOR BREATHER TUBE)

main77223-28030iCR26,27,KR26,YR26..V5D198211-198808

77213HOSE, FUEL TANK SUB INLET

main77217-28010iCR2#,3#,KR26,YR2#,3#198211-198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-28010iCR2#,3#,KR26,YR2#,3#198211-198808

77295SHIELD, FUEL FILLER PIPE

main77293-28010iCR2#,3#,KR26,YR2#,3#198211-198808

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-87001iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198608-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-87002iCR2#,KR26,YR2#198211-198408

main77305-87003iCR21,30,YR20,21,30..E,Q,X198408-198608

main77305-87004iCR26,27,36,KR26,YR26..V5D198608-198808

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001×2iCR2#,3#,KR26,YR2#,30198211-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-87001iCR21,30,YR20,21,30..E,Q,X198211-198608

77367STOPPER, FUEL FILLER OPENING LID

main77358-87001iCR2#,3#,KR26,YR2#,3#198211-198808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28030iCR26,KR26,YR2#198211-198301

main77601-28031iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N)198708-198808

main77601-28040iCR21,YR21..HRF198508-198808

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28020iCR26,KR26,YR2#198211-198301

main77603-28021iCR2#,KR26,YR2#198301-198508

main77603-28050iCR21,YR21..HRF198508-198808

main77603-28060iCR30,YR30198510-198808

main77603-28070iCR36,37,YR36198510-198808

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77161-28010iCR3#,YR3#198510-198808

main77606-28010iCR2#,KR26,YR2#198211-198508

main77606-28020iCR21,YR21..HRF198508-198808

77611APIN (FOR FUEL TANK BAND)

main77653-28010iCR2#,30,KR26,YR2#,30198211-198808

L=73

main90240-08020iCR2#,3#,KR26,YR2#,36198211-198808

L=69.5

main90240-08047iCR2#,KR26,YR2#198211-198808

L=81

77612BRACKET SUB-ASSY, FUEL TANK

main77613-28030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N)198708-198808

main77613-28040iCR28198708-198808

77614ABAND, FUEL TANK, NO.2 RH

main77614-28010iCR21,36,YR20,21,30198211-198808

main77614-28020iCR26,27,28,36,37,KR26,YR26,28,36198211-198808

77631BRACKET, FUEL TANK, NO.1

main77501-28030iCR2#,KR26,YR2#198211-198308

main77511-28050iCR2#,KR26,YR2#198308-198808

main77511-28060iCR3#,YR3#198510-198808

77652CUSHION, FUEL TANK, NO.1

main77651-27120×2iYR36..4FC198608-198808

45 X 270

main77651-28010×2iCR26,27,36,37,KR26,YR26; YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,YR21,28,30; YR36..4FC; YR36..5F198608-198808

70 X 70

main77651-28020×2iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,30198511-198808

70 X 110

9004206008

main90042-06008

9015950004

main90159-50004

9017010017

main90170-10017

9046026001

main90460-26001

9046065004

main90460-65004

9046723003

main90467-23003

9046814004

main90468-14004

9048001186

main90480-01186

9048013006

main90480-13006

9048030014

main90480-30014

9094901049

main90949-01049

9161140816

main91611-40816

9165160816

main91651-60816

9165161020

main91651-61020

9165161035

main91651-61035

9331116014

main93311-16014

9338516012

main93385-16012

9611140816

main96111-40816

47 parts on this diagram · 8 diagrams in section
