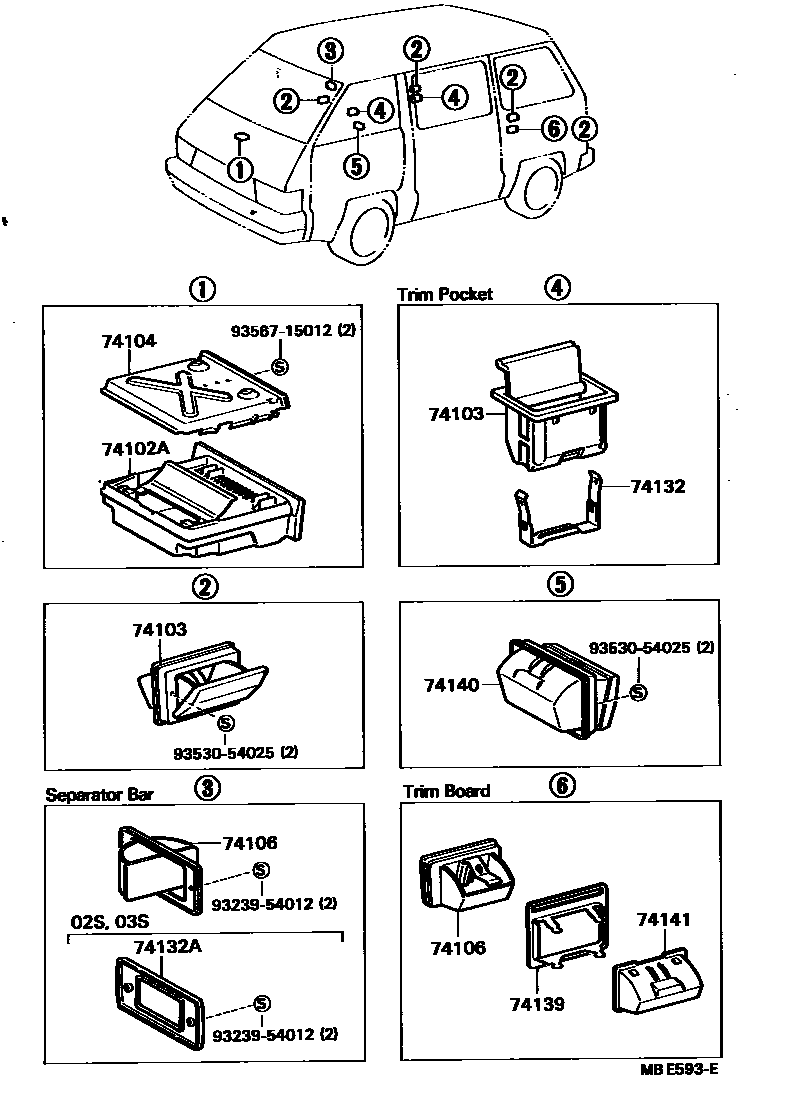

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-87001-01iCR2#,KR26,YR2#..D,E,G,N,R198211-198408

BLACK,BLACK,TRIM1#,4#

main74102-87001-02iYR20,21..07S198211-198408

WINE,RED/MAROON,TRIM4#

main74102-87001-04iYR20,21..07S198211-198408

BLUE,BLUE,TRIM1#

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-14020-05×3iYR20,21..D,G198211-198408

TRIM BOARD,BEIGE,BEIGE,TRIM4#

main74130-14020-20×3iCR21,YR20,21..D,G198408-198508

TRIM BOARD,BEIGE,BEIGE,TRIM4#

main74130-14020-30×3iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

TRIM BOARD,BEIGE,BROWN,TRIM4#

main74130-16020-04×2iCR21,YR20,21..E,Q,X198408-198508

TRIM POCKET,BLUE,BLUE,TRIM1#

main74130-16020-12×2iCR21,YR20,21..E,Q,X198408-198508

TRIM POCKET,WINE,DARK WINE,TRIM4#

main74130-16020-24×2iCR21,30,YR20,21,30..E,Q198508-198808

TRIM POCKET,BLUE,BLUE,TRIM8#

main74130-16020-26×2iCR21,30,YR20,21,30..E,Q198508-198808

TRIM POCKET,BROWN,BROWN,TRIM4#

main74130-22040-02×2iCR21,YR20,21..E,Q,X198211-198408

TRIM POCKET,WINE,RED/MAROON,TRIM4#

main74130-22040-04×2iCR21,YR20,21..E,Q,X198211-198408

TRIM POCKET,BLUE,BLUE,TRIM1#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-87008iCR2#,3#,KR26,YR2#,3#..B,D,G,N,R198211-198808

main74104-87009iCR21,30,YR20,21,30..E,Q,X198211-198808

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-02iCR21,YR20,21..E,Q,X198211-198508

WINE,RED/MAROON,TRIM4#

main74105-10010-20iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

main74105-10010-24iCR21,YR20,21..E,Q,X198211-198508

BLUE,BLUE,TRIM1#

main74105-10010-34iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main74106-87201-05iKR26,YR26..06S198211-198808

BEIGE,BEIGE,TRIM4#

74132HOLDER, REAR ASH RECEPTACLE

main74239-22020×2iCR21,30,YR20,21,30..E,Q,X198211-198808

74132ACOVER, ASH RECEPTACLE HOLE

main74132-87501iKR26,YR26..03S198211-198808

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iCR21,30,YR20,21,30..E,Q,X198211-198808

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74130-14020-02iCR21,YR20,21; CR26,YR26..05S198211-198408

WINE,DARK WINE,TRIM4#

main74130-14020-34iCR21,YR20,21..E,Q,X198211-198408

BLUE,BLUE,TRIM1#

main74130-22020-02iCR21,YR20,21; CR26,27,YR26..05S198408-198508

WINE,RED/MAROON,TRIM4#

main74130-22020-14iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main74130-22020-24iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main74130-22020-26iCR26,27,36,YR26..05S; YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,YR21,28,3#198508-198808

BROWN,BROWN,TRIM4#

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iCR21,30,YR20,21,30..E,Q,X198211-198808

9323954012

main93239-54012

9353054025

main93530-54025

9356715012

main93567-15012

12 parts on this diagram · 1 diagram in section
