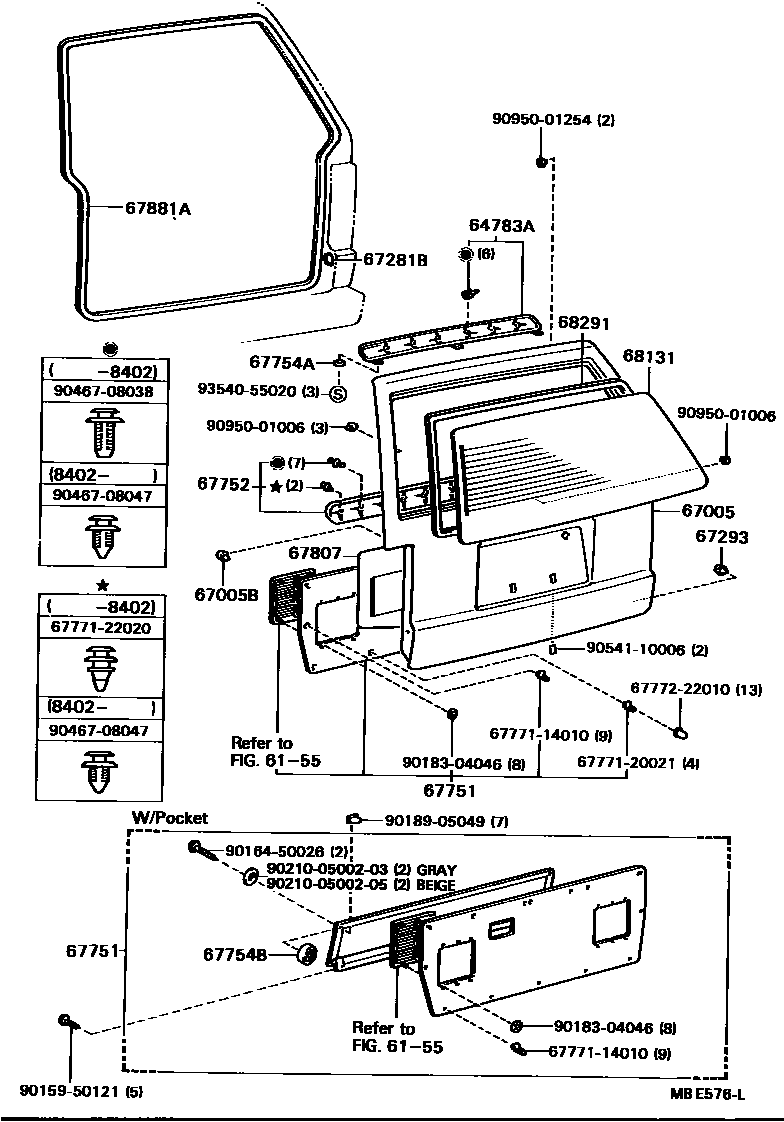

BACK DOOR PANEL & GLASS

6155REAR VENTILATOR & ROOF VENTILATOR

→ Go to FIG 61-55

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-87001-03iCR21,YR20,21..HRF..(E,X)198211-198408

GRAY,GRAY,TRIM1#

main64783-87001-05iCR21,YR20,21..HRF..(E,X)198211-198408

BEIGE,BEIGE,TRIM4#

main64783-87001-15iCR21,YR20,21..HRF..(E,Q,X)198408-198508

BEIGE,BEIGE,TRIM4#

main64783-87001-25iCR21,30,YR20,21,30..HRF..(E,Q)198508-198608

BEIGE,BEIGE,TRIM4#

main64783-87002-03iYR20,21..Q198211-198408

GRAY,GRAY,TRIM1#

main64783-87002-05iYR20,21..Q198211-198408

BEIGE,BEIGE,TRIM4#

main64783-87005-03iCR21,30,YR20,21,30..HRF..(E,Q)198608-198808

GRAY,GRAY,TRIM8#

main64783-87005-05iCR21,30,YR20,21,30..HRF..(E,Q)198608-198808

BEIGE,BEIGE,TRIM4#

67005PANEL SUB-ASSY, BACK DOOR

main67005-87044iCR21,YR20..D198306-198808

main67005-87045iCR21,YR20..MRF..G198211-198508

W/RR UNDER MIRROR

main67005-87046iYR20,21..MRF..G198211-198306

W/*RW

main67005-87047iCR21,YR20,21..MRF..G198211-198508

W/*RW,RR UNDER MIRROR

main67005-87048iCR21,YR20..MRF..E198211-198306

W/*RW

main67005-87049iCR21,YR20,21..MRF..(E,X)198211-198408

W/*RW,RR UNDER MIRROR

main67005-87050iYR20..HRF..G198211-198306

main67005-87051iYR20..HRF..G198211-198508

W/RR UNDER MIRROR

main67005-87052iYR20..HRF..G198211-198306

W/*RW

main67005-87053iYR20..HRF..G198211-198508

W/*RW,RR UNDER MIRROR

main67005-87054iCR21,YR20..HRF..E198211-198306

W/*RW

main67005-87055iYR20,21..Q198408-198508

W/*RW,RR UNDER MIRROR

main67005-87066iYR20,21..Q198211-198508

W/*RW,RR UNDER MIRROR,*PC

main67005-87074iYR20..HRF..G198211-198408

CAMPER,W/RR UNDER MIRROR

main67005-87075iYR20..HRF..G198211-198408

CAMPER,W/*RW,RR UNDER MIRROR

main67005-87G01iCR21,YR20..MRF..G198508-198608

W/RR UNDER MIRROR

main67005-87G02iCR21,YR20..MRF..G198608-198808

W/*RW,RR UNDER MIRROR

main67005-87G03iYR20..HRF..5F..G198508-198608

main67005-87G04iCR30,YR20,30..HRF..5F..G198508-198608

W/*RW

main67005-87G05iYR20..MRF..E198508-198808

main67005-87G06iCR21,30,YR20,21,30..HRF..E198508-198608

main67005-87G07iCR21,30,YR20,21..Q198508-198608

main67005-87G08iCR21,30,YR20,21..Q198508-198608

W/*PC

main67005-87G20iCR21,YR20..MRF..(D,G)198508-198808

W/*RW

main67005-87G21iCR21,30,YR20,21,30..HRF..E198608-198808

main67005-87G22iCR21,30,YR21,30..Q198608-198808

main67005-87G23iCR21,30,YR21,30..Q198608-198808

W/*PC

main67008-87003iCR26,28,36,KR26,YR26,28..SRF..(B,D,R)198508-198808

main67008-87004iCR28,YR28..SRF198508-198808

W/RR UNDER MIRROR

main67008-87005iCR26,27,28,36,KR26,YR26,28..SRF..(B,D,N)198508-198808

W/*RW

main67008-87006iCR26,27,KR26,YR26..SRF..(D,N)198211-198508

W/*RW,RR UNDER MIRROR

main67008-87007iCR26,28,36,37,KR26,YR26,28,36..HRF..(B,D)198508-198808

main67008-87008iCR26,KR26,YR26..HRF..D198211-198508

W/RR UNDER MIRROR

main67008-87009iCR26,27,28,36,37,KR26,YR26,28,36..HRF198508-198808

W/*RW

main67008-87010iCR28,37,YR28,36..HRF198508-198808

W/*RW,RR UNDER MIRROR

main67008-87018iCR21,YR20..MRF..E198408-198508

W/*RW,RR UNDER MIRROR

main67008-87019iCR21,YR20,21..HRF..(E,X)198408-198508

W/*RW,RR UNDER MIRROR

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09029×2iCR2#,3#,KR26,YR2#,3#198211-198808

67281BSTOPPER, BACK DOOR, LOWER

main67281-87002×2iCR2#,3#,KR26,YR2#,3#198211-198808

67293CUSHION, BACK DOOR LOWER STOPPER

main90541-09031×2iCR2#,3#,KR26,YR2#,3#198211-198808

67751BOARD, BACK DOOR TRIM

main64780-87001iYR20,21..D,G198211-198408

BEIGE

main64780-87001-15iCR21,YR20,21..D,G198408-198508

BEIGE,BEIGE,TRIM4#

main64780-87001-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

BEIGE,BEIGE,TRIM4#

main64780-87002-03iCR21,YR20,21..E,Q,X198211-198408

W/*EL,GRAY,GRAY,TRIM1#

main64780-87002-05iCR21,YR20,21..07S,08S198211-198408

W/*EL,BEIGE,BEIGE,TRIM4#

main64780-87002-15iCR21,YR20,21..E,Q,X198408-198508

BEIGE,BEIGE,TRIM4#

main64780-87003iCR26,KR26,YR26..D,R198211-198408

main64780-87003-15iCR26,KR26,YR26..D,R198408-198508

BEIGE,BEIGE,TRIM4#

main64780-87003-25iCR26,28,36,37,KR26,YR26,28,36..B,D,R198508-198808

BEIGE,BEIGE,TRIM4#

main64780-87004iYR26..N198211-198408

main64780-87004-15iCR26,27,YR26..N198408-198508

BEIGE,BEIGE,TRIM4#

main64780-87004-25iCR26,27,36,YR26..N198508-198808

BEIGE,BEIGE,TRIM4#

main64780-87006iYR20..MRF..5F..G198310-198311

WHITE WAGON

main64780-87008-03iCR21,30,YR20,21,30..E,Q198508-198601

GRAY,GRAY,TRIM8#

main64780-87008-05iCR21,30,YR20,21,30..E,Q198508-198601

BEIGE,BEIGE,TRIM4#

main64780-87009-05iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

COLD SPEC,BEIGE,BEIGE,TRIM4#

main64780-87011-05iCR28,37,YR28,36198508-198808

COLD SPEC,BEIGE,BEIGE,TRIM4#

main64780-87014-03iCR21,30,YR20,21,30..E,Q198508-198601

COLD SPEC,GRAY,GRAY,TRIM8#

main64780-87014-05iCR21,30,YR20,21,30..E,Q198508-198601

COLD SPEC,BEIGE,BEIGE,TRIM4#

main64780-87016-03iCR21,30,YR20,21,30..E,Q198601-198808

GRAY,GRAY,TRIM8#

main64780-87016-05iCR21,30,YR20,21,30..E,Q198601-198808

BEIGE,BEIGE,TRIM4#

main64780-87017-03iCR21,30,YR20,21,30..E,Q198601-198808

COLD SPEC,GRAY,GRAY,TRIM8#

main64780-87017-05iCR21,30,YR20,21,30..E,Q198601-198808

COLD SPEC,BEIGE,BEIGE,TRIM4#

67752TRIM, BACK DOOR, UPPER

main64785-87001-03iCR21,30,YR20,21,30..Q198408-198808

GRAY,GRAY,TRIM1#,8#

main64785-87001-05iCR21,YR20,21..E,Q,X198211-198408

BEIGE,BEIGE,TRIM4#

main64785-87001-15iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main64785-87001-25iCR21,30,YR20,21,30..Q198508-198808

BEIGE,BEIGE,TRIM4#

main64785-87002-03iCR21,30,YR20,21..Q198211-198608

W/*PC,GRAY,GRAY,TRIM1#,8#

main64785-87002-05iYR20,21..Q198211-198408

W/*PC,BEIGE,BEIGE,TRIM4#

main64785-87002-15iYR20,21..Q198408-198508

W/*PC,BEIGE,BEIGE,TRIM4#

main64785-87002-25iCR21,30,YR20,21..Q198508-198608

W/*PC,BEIGE,BEIGE,TRIM4#

main64785-87004-03iCR21,30,YR21,30..Q198608-198808

W/*PC,GRAY,GRAY,TRIM8#

main64785-87004-05iCR21,30,YR21,30..Q198608-198808

W/*PC,BEIGE,BEIGE,TRIM4#

67754ACOVER, BACK DOOR HOLE

main67754-87001-03×3iCR21,30,YR20,21,30..HRF..(E,Q,X)198302-198608

GRAY,GRAY,TRIM1#,8#

main67754-87001-05×3iCR21,YR20,21..HRF..(E,Q,X)198302-198408

BEIGE,BEIGE,TRIM4#

main67754-87001-15×3iCR21,YR20,21..HRF..(E,Q,X)198408-198508

BEIGE,BEIGE,TRIM4#

main67754-87001-25×3iCR21,30,YR20,21,30..HRF..(E,Q)198508-198608

BEIGE,BEIGE,TRIM4#

main67754-87003-03×3iCR21,30,YR20,21,30..HRF..(E,Q)198608-198808

GRAY,GRAY,TRIM8#

main67754-87003-05×3iCR21,30,YR20,21,30..HRF..(E,Q)198608-198808

BEIGE,BEIGE,TRIM4#

67754BSPACER, BACK DOOR TRIM

main67754-87002-03iCR21,30,YR20,21,30..E,Q198508-198808

GRAY,GRAY,TRIM8#

main67754-87002-05iCR21,30,YR20,21,30..E,Q198508-198808

BEIGE,BEIGE,TRIM4#

67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE

main67807-87003iCR21,30,37,YR20,21,3#198211-198808

main67807-87004iCR26,27,28,36,KR26,YR26,28198211-198808

67881AWEATHERSTRIP, BACK DOOR

main67881-87002iCR2#,36,KR26,YR2#..MRF,SRF198211-198708

main67881-87004iCR2#,3#,KR26,YR2#,3#..HRF198211-198708

main67881-87006iCR2#,36,KR26,YR20,26,28..MRF,SRF198708-198808

main67881-87008iYR20..HRF..E;YR20..HRF..5F..G;CR2#,3#,KR26,YR21,26,28,3#..HRF198708-198808

main67881-87009iYR20..HRF..E;YR20..HRF..5F..G;CR2#,3#,KR26,YR21,26,28,3#..HRF198708-198803

COLD SPEC

68131GLASS, BACK DOOR

main68105-87004iCR21,YR20,21..MRF198211-198508

main68105-87005iCR21,YR20,21..HRF198211-198508

*EHTT,T=4.0

main68105-87006iCR26,27,KR26,YR26..SRF..(D,N)198211-198508

main68105-87008iCR26,27,KR26,YR26..HRF198211-198508

*EHT,T=4.0

main68105-87010iCR21,YR20,21..MRF..(E,G,X)198211-198508

main68105-87011iCR21,YR20,21..HRF198211-198508

BRONZE,*EHT,T=4.0

main68105-87012iCR26,36,KR26,YR26..SRF..(D,N); CR28,YR28..SRF198508-198808

main68105-87013iCR21,YR20..MRF..(08S,09S)198508-198808

main68105-87014iCR21,YR20..MRF..(E,G)198508-198808

main68105-87015iCR26,27,36,37,KR26,YR26..HRF; CR28,YR28,36..HRF198508-198808

main68105-87016iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..HRF198508-198808

main68105-87017iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR21,30,YR21,30..HRF198508-198808

main68131-87006iCR26,36,KR26,YR26..SRF..(D,R)198211-198808

main68131-87007iCR21,YR20..D198211-198808

main68131-87014iCR26,36,KR26,YR26..HRF..D198211-198808

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-87004iCR2#,36,KR26,YR2#..MRF,SRF198211-198808

main68291-87006iCR2#,3#,KR26,YR2#,3#..HRF198211-198808

6777114010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14010

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777122020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22020

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9015950121

main90159-50121

9016450026

main90164-50026

9018304046

main90183-04046

9018905049

main90189-05049

902100500203

main90210-0500203

902100500205

main90210-0500205

9046708038

main90467-08038

9046708047

main90467-08047

9054110006

main90541-10006

9095001006

main90950-01006

9095001254

main90950-01254

9354055020

main93540-55020

30 parts on this diagram · 1 diagram in section
