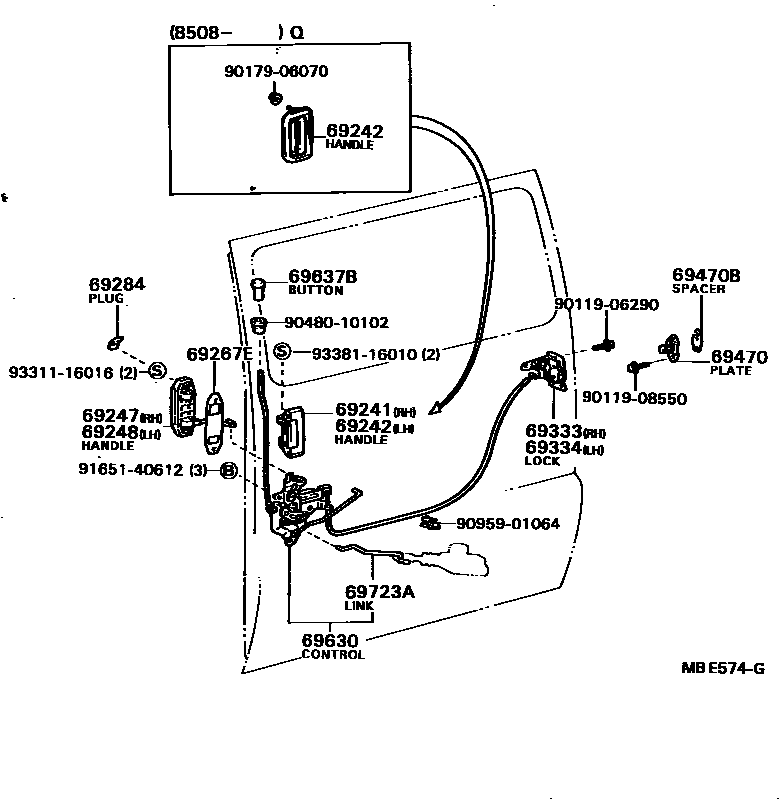

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-87001iCR26,KR26,YR26..V5D198211-198304

main69230-87003iCR26,27,36,KR26,YR26..V5D198304-198808

69242HANDLE ASSY, SLIDE DOOR OUTSIDE, LH

main69230-28010iCR21,30,YR20,21,30..Q198508-198808

main69240-87001iCR26,KR26,YR2#198211-198304

main69240-87002iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#..02S,03S,05S,06S,08S198508-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69270-87001-05iCR26,KR26,YR26..V5D198211-198408

BEIGE,BEIGE,TRIM4#

main69270-87001-15iCR26,KR26,YR26..V5D198408-198508

BEIGE,BEIGE,TRIM4#

main69270-87001-25iCR26,27,36,KR26,YR26..V5D198508-198808

BEIGE,BEIGE,TRIM4#

69248HANDLE, SLIDE DOOR INSIDE, LH

main69280-87001-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main69280-87001-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main69280-87001-15iCR2#,KR26,YR2#198408-198508

BEIGE,BEIGE,TRIM4#

main69280-87001-25iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BEIGE,BEIGE,TRIM4#

69267ESEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-87001×2iCR2#,3#,KR26,YR2#,3#198801-198808

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03×2iCR21,30,YR20,21,30..E,Q,X198211-198808

GRAY,GRAY,TRIM1#,8#

main69284-87001-05×2iCR21,YR20,21;CR26,KR26,YR26..V4D; CR26,KR26,YR26..V5D198211-198408

BEIGE,BEIGE,TRIM4#

main69284-87001-15×2iCR21,27,YR20,21;CR26,KR26,YR26..V4D; CR26,KR26,YR26..V5D198408-198508

BEIGE,BEIGE,TRIM4#

main69284-87001-25×4iCR26,27,36,KR26,YR26..V5D; YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,30,37,YR21,28,3#;CR26,27,36,KR26,YR26..V4D198508-198808

BEIGE,BEIGE,TRIM4#

69333LOCK ASSY, SLIDE DOOR, RH

main69330-87001iCR26,27,36,KR26,YR26..V5D198211-198808

69334LOCK ASSY, SLIDE DOOR, LH

main69340-87001iCR2#,3#,KR26,YR2#,3#198211-198808

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001×2iCR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#; CR26,27,36,KR26,YR26..V5D198311-198808

main69470-95J00iCR21,YR20,21;CR26,KR26,YR26..V4D; CR26,KR26,YR26..V5D198211-198311

69470BSPACER, SLIDE DOOR LOCK STRIKER

main69413-87002iCR2#,3#,KR26,YR2#,3#; CR26,27,36,KR26,YR26..V5D198311-198808

LH; RH

main69473-95700iCR26,KR26,YR26..V5D198211-198311

RH

main69474-95700iCR2#,KR26,YR2#198211-198311

LH

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-87001iCR26,KR26,YR26..V5D..D198211-198408

RH

main69630-87002iYR26..V5D..N198211-198408

RH

main69630-87003iCR26,36,KR26,YR26..V5D..D198408-198808

RH

main69630-87004iCR26,27,YR26..V5D..N198408-198808

RH

main69640-87001iCR26,KR26,YR2#..D,G,R198211-198408

LH

main69640-87002iCR21,YR2#..E,N,Q,X198211-198408

LH

main69640-87003iCR26,28,3#,KR26,YR2#,3#..B,D,G,R198408-198808

LH

main69640-87004iCR2#,YR2#..E,N,Q,X198408-198508

LH

main69640-87005iCR21,30,YR20,21,30..Q198508-198808

69637BBUTTON, DOOR LOCKING(FOR SLIDE DOOR)

main69747-87701iCR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#; CR26,27,36,KR26,YR26..V5D198211-198808

69723ALINK, SLIDE DOOR LOCK ACTUATOR

main69723-87001iYR26..V5D..N198211-198408

RH

main69723-87002iYR26..V5D..N198408-198411

RH

main69724-87001iCR21,YR2#..E,N,Q,X198211-198408

LH

main69724-87002iCR2#,YR2#..E,N,Q,X198408-198411

LH

9011906290

main90119-06290

9011908550

main90119-08550

9017906070

main90179-06070

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

9338116010

main93381-16010

21 parts on this diagram · 1 diagram in section
