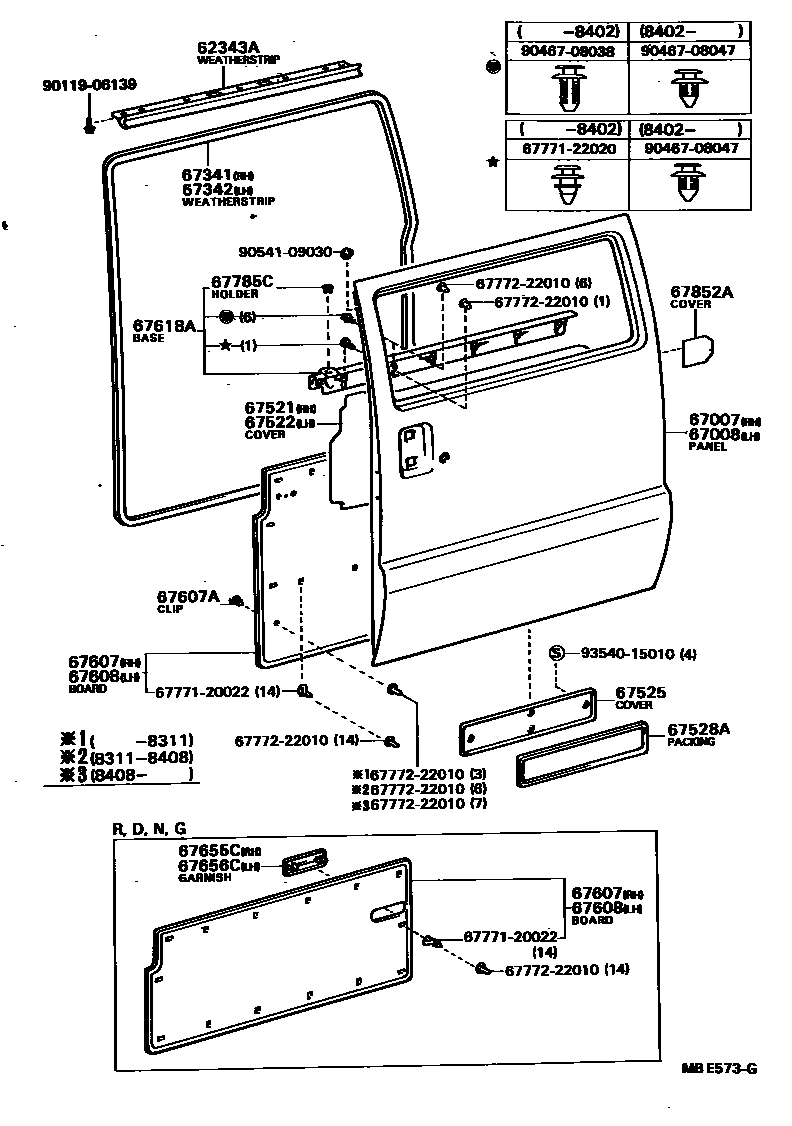

REAR DOOR PANEL & GLASS

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-87001×2iCR21,27,YR20,21;CR26,KR26,YR26..V4D; CR26,KR26,YR26..V5D198211-198508

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-87002iCR26,36,KR26,YR26..V5D..D198211-198808

main67003-87003iCR26,27,YR26..V5D..N198211-198808

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-87004iCR21,YR20,21..E,Q,X198211-198508

main67004-87005iCR26,27,36,YR26..N198211-198808

main67004-87006iYR20..MRF..5F..G198310-198311

WHITE WAGON

main67004-87007iCR21,26,28,3#,KR26,YR2#,3#..B,D,G,R198211-198808

main67004-87015iCR21,30,YR20,21,30..E,Q198508-198808

W/LARGE SIDE MOULDING

main67004-87017iCR21,30,YR20,21,30..E198508-198808

67341WEATHERSTRIP, SLIDE DOOR, RH

main67871-87001iCR26,27,36,KR26,YR26..V5D198211-198808

67342WEATHERSTRIP, SLIDE DOOR, LH

main67872-87001iCR2#,3#,KR26,YR2#,3#198211-198808

67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH

main67851-87002iCR26,27,36,KR26,YR26..V5D198211-198808

67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH

main67851-87002iCR2#,3#,KR26,YR2#,3#198211-198808

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-28010iCR21,30,YR20,21,30..E,Q,X198311-198808

main67525-87001iCR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#..B,D,G198311-198808

67528APACKING, SLIDE DOOR LOWER COVER

main67528-87001iCR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#; CR26,27,36,KR26,YR26..V5D198211-198808

67607BOARD SUB-ASSY, SLIDE DOOR TRIM, RH

main67630-87002iCR26,KR26,YR26..V5D198211-198408

main67630-87002-15iCR26,KR26,YR26..V5D198408-198508

BEIGE

main67630-87002-25iCR26,27,36,KR26,YR26..V5D198508-198808

BEIGE,BEIGE,TRIM4#

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-09033-03×3iYR20..E,Q,X198211-198212

GRAY,GRAY,TRIM1#

main90467-09033-05×3iYR20..E,Q,X198211-198212

BEIGE,BEIGE,TRIM4#

main90467-12078-03×6iCR21,YR20,21..E,Q,X198311-198408

GRAY,GRAY,TRIM1#

main90467-12078-05×3iCR21,YR20,21..E,Q,X198212-198311

BEIGE,BEIGE,TRIM4#

main90467-12078-22×7iCR21,YR20,21..E,Q,X198408-198508

WINE,WINE,TRIM4#

main90467-12078-24×7iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main90467-12078-34×7iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main90467-12078-46×7iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

67608BOARD SUB-ASSY, SLIDE DOOR TRIM, LH

main67640-87005iCR26,KR26,YR2#..D,G,N,R198211-198408

BEIGE

main67640-87005-15iCR2#,KR26,YR2#..D,G,N,R198408-198508

BEIGE,BEIGE,TRIM4#

main67640-87005-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,30,36,KR26,YR26,28,3#..B,D,G,N,R198508-198712

BEIGE,BEIGE,TRIM4#

main67640-87007-03iCR21,YR20,21..E,X198211-198308

GRAY,GRAY,TRIM1#

main67640-87007-05iCR21,YR20,21..E,X198211-198308

BEIGE,BEIGE,TRIM4#

main67640-87007-13iCR21,YR20,21..E,X198308-198312

GRAY,GRAY,TRIM1#

main67640-87007-15iCR21,YR20,21..E,X198308-198312

BEIGE,BEIGE,TRIM4#

main67640-87008-03iYR20,21..Q198211-198312

GRAY,GRAY,TRIM1#

main67640-87008-05iYR20,21..Q198211-198308

BEIGE,BEIGE,TRIM4#

main67640-87008-15iYR20,21..Q198308-198312

BEIGE,BEIGE,TRIM4#

main67640-87011iYR20..MRF..5F..G198310-198311

WHITE WAGON

main67640-87013-03iCR21,YR20,21..E,X198312-198408

GRAY,GRAY,TRIM1#

main67640-87013-05iCR21,YR20,21..E,X198312-198408

BEIGE,BEIGE,TRIM4#

main67640-87014-03iYR20,21..Q198312-198408

GRAY,GRAY,TRIM1#

main67640-87014-05iYR20,21..Q198312-198408

BEIGE,BEIGE,TRIM4#

main67640-87015-03iYR20..HRF..E198404-198405

SURF SPECIAL,GRAY,GRAY,TRIM1#

main67640-87018-03iCR21,YR20,21..E,X198408-198508

GRAY,GRAY,TRIM1#

main67640-87018-05iCR21,YR20,21..E,X198408-198508

BEIGE,BEIGE,TRIM4#

main67640-87019-03iYR20,21..Q198408-198508

GRAY,GRAY,TRIM1#

main67640-87019-05iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main67640-87024-03iCR21,30,YR20,21,30..E198508-198602

GRAY,GRAY,TRIM8#

main67640-87024-05iCR21,30,YR20,21,30..E198508-198602

BEIGE,BEIGE,TRIM4#

main67640-87025-03iCR21,30,YR20,21..Q198508-198602

GRAY,GRAY,TRIM8#

main67640-87025-05iCR21,30,YR20,21..Q198508-198602

BEIGE,BEIGE,TRIM4#

main67640-87026-03iCR21,30,YR20,21,30..E198602-198712

GRAY,GRAY,TRIM8#

main67640-87026-05iCR21,30,YR20,21,30..E198602-198712

BEIGE,BEIGE,TRIM4#

main67640-87027-03iCR21,30,YR20,21,30..Q198602-198712

GRAY,GRAY,TRIM8#

main67640-87027-05iCR21,30,YR20,21,30..Q198602-198712

BEIGE,BEIGE,TRIM4#

main67640-87029-03iCR21,30,YR20,21,30..E198712-198808

GRAY,GRAY,TRIM8#

main67640-87029-05iCR21,30,YR20,21,30..E198712-198808

BEIGE,BEIGE,TRIM4#

main67640-87040-05iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N198712-198808

BEIGE,BEIGE,TRIM4#

main67640-87041-03iCR21,30,YR21,30..Q198712-198808

GRAY,GRAY,TRIM8#

main67640-87041-05iCR21,30,YR21,30..Q198712-198808

BEIGE,BEIGE,TRIM4#

67618ABASE, REAR DOOR TRIM, LH

main62036-87001-03iYR20,21..Q198211-198508

GRAY,GRAY,TRIM1#

main62036-87001-05iYR20,21..Q198211-198408

BEIGE,BEIGE,TRIM4#

main62036-87001-13iCR21,30,YR20,21,30..Q198508-198808

GRAY,GRAY,TRIM8#

main62036-87001-15iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main62036-87001-25iCR21,30,YR20,21,30..Q198508-198808

BEIGE,BEIGE,TRIM4#

main67618-87001-03iCR21,30,YR20,21,30..E,X198211-198808

GRAY,GRAY,TRIM1#,8#

main67618-87001-05iCR21,YR20,21..E,X198211-198408

BEIGE,BEIGE,TRIM4#

main67618-87001-15iCR21,YR20,21..E,X198408-198508

BEIGE,BEIGE,TRIM4#

main67618-87001-25iCR21,30,YR20,21,30..E198508-198808

BEIGE,BEIGE,TRIM4#

67655CGARNISH, SLIDE DOOR TRIM, RH

main67656-87001iCR26,KR26,YR26..V5D198211-198408

main67656-87001-15iCR26,KR26,YR26..V5D198408-198508

BEIGE,BEIGE,TRIM4#

main67656-87001-25iCR26,27,36,KR26,YR26..V5D198508-198808

BEIGE,BEIGE,TRIM4#

67656CGARNISH, SLIDE DOOR TRIM, LH

main67656-87001iCR26,KR26,YR2#..D,G,N,R198211-198408

main67656-87001-15iCR2#,KR26,YR2#..D,G,N,R198408-198508

BEIGE,BEIGE,TRIM4#

main67656-87001-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,30,36,KR26,YR26,28,3#..B,D,G,N,R198508-198808

BEIGE,BEIGE,TRIM4#

67785CHOLDER, DOOR LOCKING BUTTON COLLAR(FOR SLIDE DOOR)

main69751-87001iYR20..MRF..5F..G198310-198311

WHITE WAGON

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-87001iCR21,28,30,YR20,21,28,3#;CR26,27,36,KR26,YR26..V4D; CR26,27,36,KR26,YR26..V4D;CR21,28,30,37,YR20,21,28,3#198211-198808

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777122020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-22020

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906139

main90119-06139

9046708038

main90467-08038

9046708047

main90467-08047

9054109030

main90541-09030

9354015010

main93540-15010

25 parts on this diagram · 1 diagram in section
