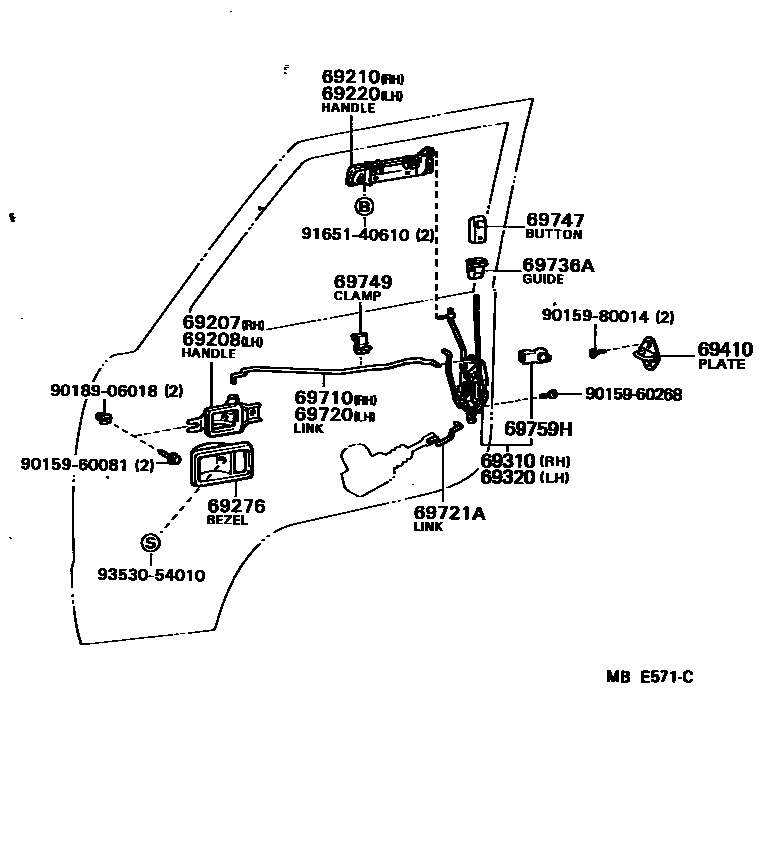

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12070-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main69205-12070-12iCR21,YR20,21..E,Q,X198408-198508

WINE,WINE,TRIM4#

main69205-12070-15iCR2#,KR26,YR2#..D,G,N,R198408-198508

BEIGE,BEIGE,TRIM4#

main69205-12070-26iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

main69205-12070-36iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

BROWN,BROWN,TRIM4#

main69205-12070-44iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main69205-32010-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main69205-32010-23iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12070-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main69206-12070-12iCR21,YR20,21..E,Q,X198408-198508

WINE,WINE,TRIM4#

main69206-12070-15iCR2#,KR26,YR2#..D,G,N,R198408-198508

BEIGE,BEIGE,TRIM4#

main69206-12070-26iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

main69206-12070-36iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

BROWN,BROWN,TRIM4#

main69206-12070-44iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main69206-32010-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main69206-32010-23iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-87001iCR26,KR26,YR2#198211-198304

main69210-87002iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#..02S,03S,05S,06S,08S198508-198808

main69210-90K00iCR21,30,YR20,21,30..Q198508-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-87001iCR26,KR26,YR2#198211-198304

main69220-87002iCR2#,KR26,YR2#198304-198508

main69220-90K00iCR21,30,YR20,21,30..Q198508-198808

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-32020-05×2iCR2#,KR26,YR2#198211-198311

BEIGE,BEIGE,TRIM4#

main69277-32020-23×2iCR21,YR20,21..E,Q,X198211-198311

GRAY,GRAY,TRIM1#

main69277-89104-02×2iCR21,YR20,21..E,Q,X198408-198508

WINE,WINE,TRIM4#

main69277-89104-05×2iCR2#,KR26,YR2#198311-198408

BEIGE,BEIGE,TRIM4#

main69277-89104-13×2iCR21,YR20,21..E,Q,X198311-198408

GRAY,GRAY,TRIM1#

main69277-89104-14×2iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main69277-89104-15×2iCR2#,KR26,YR2#..D,G,N,R198408-198508

BEIGE,BEIGE,TRIM4#

main69277-89104-24×2iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main69277-89104-26×2iCR2#,3#,KR26,YR20,26,28,36..B,D,G,N,R198508-198808

BEIGE,BROWN,TRIM4#

main69277-89104-46×2iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

69310LOCK ASSY, FRONT DOOR, RH

main69310-87001iCR2#,KR26,YR2#..D,E,G,N,R198211-198408

main69310-87002iYR20,21..07S198211-198408

main69310-87003iCR2#,3#,KR26,YR2#,3#..B,D,E,G,N,R198408-198808

main69310-87004iYR20,21..07S198408-198508

main69310-87005iCR21,30,YR20,21,30..HRF..E198612-198808

SURF SPECIAL

69320LOCK ASSY, FRONT DOOR, LH

main69320-87001iCR2#,KR26,YR2#..D,E,G,N,R198211-198408

main69320-87002iYR20,21..07S198211-198408

main69320-87003iCR2#,3#,KR26,YR2#,3#..B,D,E,G,N,R198408-198808

main69320-87004iCR21,30,YR20,21,30..HRF..E198612-198808

SURF SPECIAL

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iCR2#,3#,KR26,YR2#,3#198211-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-87001iCR2#,KR26,YR2#198211-198408

main69711-87002iCR2#,3#,KR26,YR2#,3#198408-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-87001iCR2#,KR26,YR2#198211-198408

main69712-87002iCR2#,3#,KR26,YR2#,3#198408-198808

69721ALINK, FRONT DOOR LOCK ACTUATOR

main69721-87001iYR20,21..07S198211-198408

RH

main69721-87002iCR21,30,YR20,21,30..HRF..E198610-198611

RH,LIMITED EDITION;RH,SURF SPECIAL

main69722-87001iYR20,21..07S198211-198408

LH

main69722-87002iCR21,YR20,21..HRF..E198604-198608

LH,WHITE EXTRA

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030×2iCR21,YR20,21; CR26,27,36,YR26..N198408-198808

main69736-22021×2iCR21,YR20,21; YR26..N198211-198408

69747BUTTON, DOOR LOCKING

main69741-32010-01×2iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

BLACK,BLACK,TRIM1#,4#

main69741-87003-04×2iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

main69741-87003-06×2iCR21,30,YR20,21,30..E,Q198508-198808

BROWN,BROWN,TRIM4#

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010×2iCR2#,3#,KR26,YR2#,3#198408-198808

main69749-30020×2iCR2#,KR26,YR2#198211-198408

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20100iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,YR21,26,28,3#198508-198808

RH

main69759-20110iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,YR21,26,28,3#198508-198808

LH

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9165140610

main91651-40610

9353054010

main93530-54010

21 parts on this diagram · 1 diagram in section
