EPC Data

FLOOR MAT & SILENCER PAD

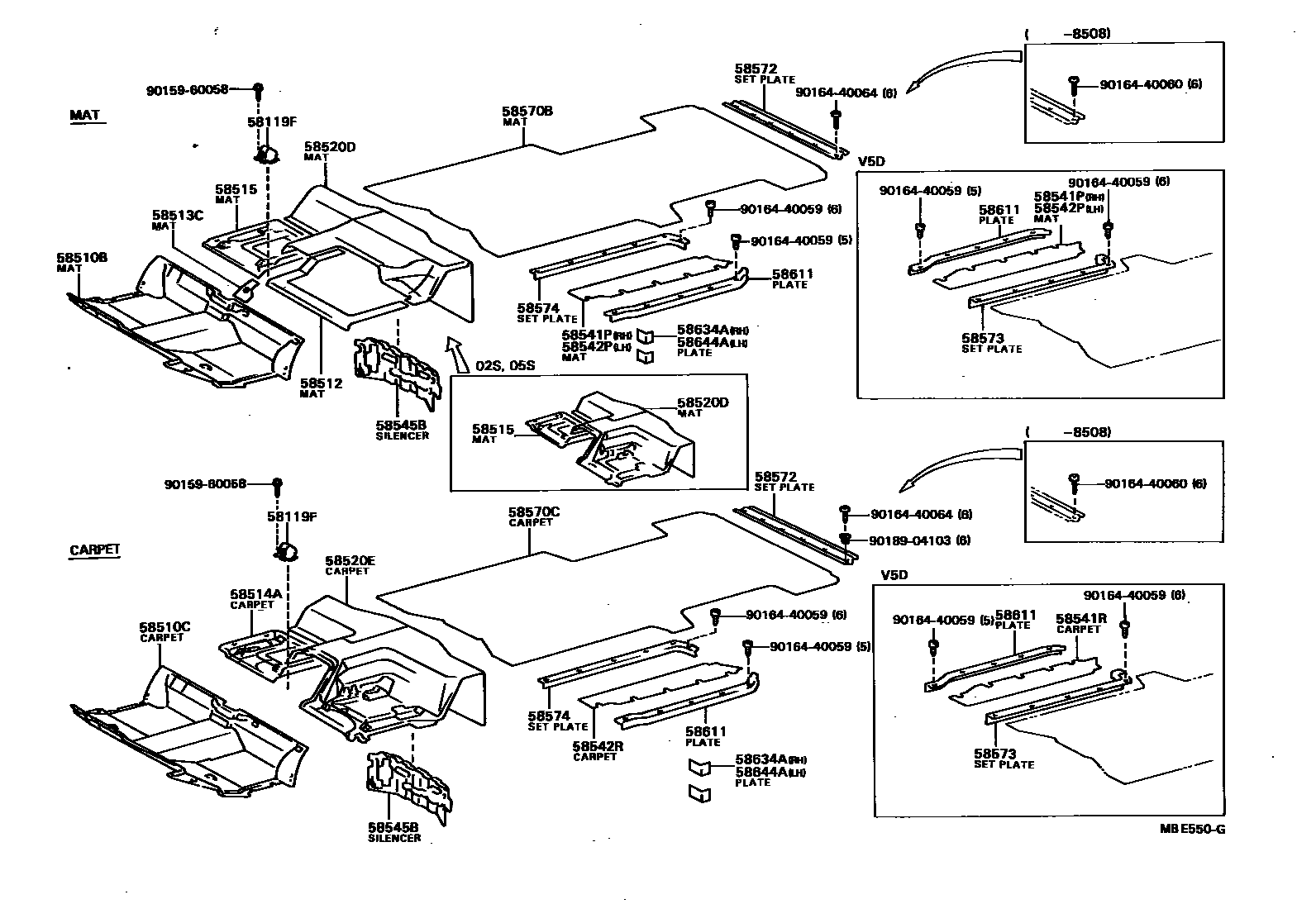

Parts diagram
58119FCOVER, FRONT FLOOR SIDE, FRONT
main58119-87002-06i198608-198808
BROWN,BROWN,TRIM4#
58510BMAT, FRONT FLOOR, FRONT
main58510-87030-06i198608-198808
BROWN,BROWN,TRIM4#
main58510-87035i198211-198408
main58510-87036i198211-198408
main58510-87051-02i198408-198508
WINE,WINE,TRIM4#
main58510-87052-02i198408-198508
WINE,WINE,TRIM4#
main58510-87G04-06i198508-198608
BROWN,BROWN,TRIM4#
main58510-87G05-06i198708-198808
BROWN,BROWN,TRIM4#
main58510-87G17-06i198708-198808
BROWN,BROWN,TRIM4#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-87034i198211-198408
main58510-87037-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58510-87037-03i198211-198308
GRAY,GRAY,TRIM1#
main58510-87037-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58510-87037-13i198308-198408
GRAY,GRAY,TRIM1#
main58510-87037-23i198404-198405
SURF SPECIAL,GRAY,GRAY,TRIM1#
main58510-87038-03i198211-198310
GRAY,GRAY,TRIM1#
main58510-87038-05i198211-198310
BEIGE,BEIGE,TRIM4#
main58510-87039i198305-198408
main58510-87049i198310-198311
WHITE WAGON,BLUE
main58510-87050-03i198310-198408
GRAY,GRAY,TRIM1#
main58510-87050-05i198310-198408
BEIGE,BEIGE,TRIM4#
main58510-87053-02i198408-198508
WINE,WINE,TRIM4#
main58510-87054-02i198408-198508
WINE,WINE,TRIM4#
main58510-87054-04i198408-198508
BLUE,BLUE,TRIM1#
main58510-87055-02i198408-198508
WINE,WINE,TRIM4#
main58510-87055-04i198408-198508
BLUE,BLUE,TRIM1#
main58510-87056-02i198408-198508
WINE,WINE,TRIM4#
main58510-87057-02i198408-198508
WINE,WINE,TRIM4#
main58510-87057-04i198408-198508
BLUE,BLUE,TRIM1#
main58510-87058-02i198408-198508
W/*PAF,WINE,WINE,TRIM4#
main58510-87058-04i198408-198508
W/*PAF,BLUE,BLUE,TRIM1#
main58510-87059-02i198408-198508
W/*PAF,WINE,WINE,TRIM4#
main58510-87059-04i198408-198508
W/*PAF,BLUE,BLUE,TRIM1#
main58510-87067-04i198508-198603
BLUE,BLUE,TRIM8#
main58510-87067-06i198508-198603
BROWN,BROWN,TRIM4#
main58510-87068-04i198508-198603
W/*DF,BLUE,BLUE,TRIM8#
main58510-87068-06i198508-198603
W/*DF,BROWN,BROWN,TRIM4#
main58510-87077-04i198508-198603
W/*DF,BLUE,BLUE,TRIM8#
main58510-87077-06i198508-198603
W/*DF,BROWN,BROWN,TRIM4#
main58510-87079-06i198508-198603
BROWN,BROWN,TRIM4#
main58510-87G06-06i198603-198808
BROWN,BROWN,TRIM4#
main58510-87G07-04i198603-198808
BLUE,BLUE,TRIM8#
main58510-87G07-06i198603-198808
BROWN,BROWN,TRIM4#
main58510-87G08-04i198603-198808
W/*DF,BLUE,BLUE,TRIM8#
main58510-87G08-06i198603-198808
W/*DF,BROWN,BROWN,TRIM4#
main58510-87G15-04i198603-198808
W/*DF,BLUE,BLUE,TRIM8#
main58510-87G15-06i198603-198808
W/*DF,BROWN,BROWN,TRIM4#
58512MAT, SEAT FLOOR
main58523-87005i198211-198408
main58523-87005-02i198408-198508
WINE,WINE,TRIM4#
main58523-87005-06i198508-198608
BROWN,BROWN,TRIM4#
main58523-87006-06i198608-198808
BROWN,BROWN,TRIM4#
main58523-87007-06i198608-198808
BROWN,BROWN,TRIM4#
58513CMAT, FLOOR, FRONT CENTER
main58513-87041-06i198608-198808
BROWN,BROWN,TRIM4#
58514ACARPET, FLOOR, CENTER
main58530-87035-02i198211-198305
WINE,RED/MAROON,TRIM4#
main58530-87035-03i198211-198305
GRAY,GRAY,TRIM1#
main58530-87039-03i198211-198305
GRAY,GRAY,TRIM1#
main58530-87039-05i198211-198305
BEIGE,BEIGE,TRIM4#
main58530-87068i198211-198305
main58530-87070-02i198305-198308
WINE,RED/MAROON,TRIM4#
main58530-87070-03i198305-198308
GRAY,GRAY,TRIM1#
main58530-87070-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58530-87070-13i198308-198408
GRAY,GRAY,TRIM1#
main58530-87070-23i198404-198405
SURF SPECIAL,GRAY,GRAY,TRIM1#
main58530-87071-03i198305-198310
GRAY,GRAY,TRIM1#
main58530-87071-05i198305-198310
BEIGE,BEIGE,TRIM4#
main58530-87072i198305-198408
main58530-87076-04i198408-198508
BLUE,BLUE,TRIM1#
main58530-87076-12i198408-198508
WINE,WINE,TRIM4#
main58530-87077i198310-198311
WHITE WAGON,BLUE
main58530-87078-02i198408-198508
WINE,WINE,TRIM4#
main58530-87078-03i198310-198408
GRAY,GRAY,TRIM1#
main58530-87078-04i198408-198508
BLUE,BLUE,TRIM1#
main58530-87078-05i198310-198408
BEIGE,BEIGE,TRIM4#
main58530-87079-02i198408-198508
WINE,WINE,TRIM4#
main58530-87079-06i198508-198603
BROWN,BROWN,TRIM4#
main58530-87G02-04i198508-198603
BLUE,BLUE,TRIM1#
main58530-87G02-06i198508-198603
BROWN,BROWN,TRIM4#
main58530-87G03-04i198508-198603
BLUE,BLUE,TRIM8#
main58530-87G03-06i198508-198603
BROWN,BROWN,TRIM4#
main58530-87G04-06i198603-198808
BROWN,BROWN,TRIM4#
main58530-87G05-04i198603-198808
BLUE,BLUE,TRIM8#
main58530-87G05-06i198603-198808
BROWN,BROWN,TRIM4#
main58530-87G06-04i198603-198808
BLUE,BLUE,TRIM8#
main58530-87G06-06i198603-198808
BROWN,BROWN,TRIM4#
58515MAT, FLOOR, CENTER
main58530-87045i198211-198305
main58530-87065-06i198608-198808
BROWN,BROWN,TRIM4#
main58530-87069i198211-198305
main58530-87073i198305-198408
main58530-87073-02i198408-198508
WINE,WINE,TRIM4#
main58530-87073-06i198708-198808
BROWN,BROWN,TRIM4#
main58530-87075i198305-198408
main58530-87075-02i198408-198508
WINE,WINE,TRIM4#
main58530-87075-06i198508-198608
BROWN,BROWN,TRIM4#
main58530-87G07-06i198708-198808
BROWN,BROWN,TRIM4#
58520DMAT ASSY, FRONT FLOOR, FRONT NO.2
main58520-87005i198211-198408
main58520-87005-02i198408-198501
WINE,WINE,TRIM4#
main58520-87007i198211-198408
main58520-87009i198211-198408
main58520-87009-02i198408-198508
WINE,WINE,TRIM4#
main58520-87009-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87011i198211-198408
main58520-87011-02i198408-198508
WINE,WINE,TRIM4#
main58520-87011-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87013i198211-198408
main58520-87013-02i198408-198501
WINE,WINE,TRIM4#
main58520-87014i198211-198408
W/RR HEATER
main58520-87014-02i198408-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87014-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87015i198211-198408
W/RR HEATER
main58520-87016i198211-198408
main58520-87016-02i198408-198501
WINE,WINE,TRIM4#
main58520-87017i198211-198408
main58520-87051-02i198408-198501
WINE,WINE,TRIM4#
main58520-87056-02i198408-198501
WINE,WINE,TRIM4#
main58520-87057-02i198408-198501
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87058-02i198408-198501
WINE,WINE,TRIM4#
main58520-87059-02i198408-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87062-06i198708-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87068-06i198508-198708
BROWN,BROWN,TRIM4#
main58520-87075-06i198508-198808
BROWN,BROWN,TRIM4#
main58520-87076-06i198508-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87078-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87G02-06i198508-198808
BROWN,BROWN,TRIM4#
main58520-87G09-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G09-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87G10-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G10-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87G11-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G11-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87G19-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G22-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G23-02i198501-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87G24-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G26-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-87G48-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G49-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87G50-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G51-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87G52-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G53-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G54-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G55-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G59-06i198708-198808
BROWN,BROWN,TRIM4#
main58520-87G60-06i198708-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
58520ECARPET ASSY, FRONT FLOOR, FRONT NO.2
main58520-87018i198211-198408
main58520-87019i198211-198408
W/RR HEATER
main58520-87020i198211-198408
main58520-87021i198211-198408
W/*SS
main58520-87022i198211-198408
W/O *SS
main58520-87023-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58520-87023-03i198211-198308
GRAY,GRAY,TRIM1#
main58520-87023-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58520-87023-13i198308-198408
GRAY,GRAY,TRIM1#
main58520-87023-23i198404-198405
SURF SPECIAL,GRAY,GRAY,TRIM1#
main58520-87024-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58520-87024-03i198211-198308
GRAY,GRAY,TRIM1#
main58520-87024-12i198308-198508
WINE,RED/MAROON,TRIM4#
main58520-87024-13i198308-198508
GRAY,GRAY,TRIM1#
main58520-87025-03i198211-198310
GRAY,GRAY,TRIM1#
main58520-87025-05i198211-198310
BEIGE,BEIGE,TRIM4#
main58520-87037i198310-198311
WHITE WAGON,BLUE
main58520-87038-03i198310-198408
GRAY,GRAY,TRIM1#
main58520-87038-05i198310-198408
BEIGE,BEIGE,TRIM4#
main58520-87039-02i198408-198508
WINE,WINE,TRIM4#
main58520-87040-02i198408-198508
WINE,WINE,TRIM4#
main58520-87040-04i198408-198508
BLUE,BLUE,TRIM1#
main58520-87041-02i198408-198508
W/*PAF,WINE,WINE,TRIM4#
main58520-87041-04i198408-198508
W/*PAF,BLUE,BLUE,TRIM1#
main58520-87042-02i198408-198501
WINE,WINE,TRIM4#
main58520-87043-02i198408-198501
WINE,WINE,TRIM4#
main58520-87044-02i198408-198501
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87052-02i198408-198508
WINE,WINE,TRIM4#
main58520-87052-04i198408-198508
BLUE,BLUE,TRIM1#
main58520-87060-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87061-04i198508-198603
BLUE,BLUE,TRIM8#
main58520-87061-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87063-04i198508-198603
BLUE,BLUE,TRIM8#
main58520-87063-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87064-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87065-04i198608-198808
BLUE,BLUE,TRIM8#
main58520-87065-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87066-06i198508-198603
W/RP HEATER,BROWN,BROWN,TRIM4#
main58520-87067-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87069-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87070-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58520-87071-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-87G01-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87G12-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G13-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G14-02i198501-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58520-87G31-06i198603-198608
BROWN,BROWN,TRIM4#
main58520-87G32-04i198608-198808
W/BIG SEAT,BLUE,BLUE,TRIM8#
main58520-87G32-06i198603-198608
BROWN,BROWN,TRIM4#
main58520-87G33-04i198603-198808
BLUE,BLUE,TRIM8#
main58520-87G33-06i198603-198808
BROWN,BROWN,TRIM4#
main58520-87G34-06i198603-198608
BROWN,BROWN,TRIM4#
main58520-87G35-06i198603-198608
W/RP HEATER,BROWN,BROWN,TRIM4#
main58520-87G36-06i198603-198608
BROWN,BROWN,TRIM4#
main58520-87G56-04i198704-198808
WHITE EXTRA,BLUE,BLUE,TRIM8#
main58520-87G56-06i198612-198704
SURF SPECIAL,BROWN,BROWN,TRIM4#
main58520-87G56-16i198704-198808
SURF SPECIAL,BROWN,BROWN,TRIM4#
58541PMAT, STEP, RH
main58541-87002-02i198211-198508
WINE,WINE,TRIM4#
main58541-87002-06i198508-198808
BROWN,BROWN,TRIM4#
58541RCARPET, STEP, RH
main58541-87003i198211-198408
main58541-87004-02i198408-198508
WINE,WINE,TRIM4#
main58541-87004-06i198508-198808
BROWN,BROWN,TRIM4#
58542PMAT, STEP, LH
main58542-87002-02i198211-198508
WINE,WINE,TRIM4#
main58542-87002-06i198508-198708
BROWN,BROWN,TRIM4#
main58542-87012-06i198708-198808
BROWN,BROWN,TRIM4#
58542RCARPET, STEP, LH
main58509-87002i198211-198408
main58509-87004-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58509-87004-03i198211-198308
GRAY,GRAY,TRIM1#
main58509-87004-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58509-87004-13i198308-198408
GRAY,GRAY,TRIM1#
main58509-87004-23i198404-198405
SURF SPECIAL,GRAY,GRAY,TRIM1#
main58509-87005-03i198211-198310
GRAY,GRAY,TRIM1#
main58509-87005-05i198211-198310
BEIGE,BEIGE,TRIM4#
main58509-87009i198310-198311
WHITE WAGON,BLUE
main58509-87012-03i198310-198408
GRAY,GRAY,TRIM1#
main58509-87012-05i198310-198408
BEIGE,BEIGE,TRIM4#
main58542-87007i198211-198408
main58542-87014-02i198408-198508
WINE,WINE,TRIM4#
main58542-87014-06i198508-198808
BROWN,BROWN,TRIM4#
58545BSILENCER, HEADER PANEL
main58545-87001i198211-198808
main58545-87002i198211-198808
58570BMAT ASSY, REAR FLOOR
main58514-87035i198211-198408
main58514-87035-02i198408-198508
WINE,WINE,TRIM4#
main58514-87035-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87036i198211-198408
main58514-87036-02i198408-198508
WINE,WINE,TRIM4#
main58514-87036-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87037i198211-198408
main58514-87037-02i198408-198508
WINE,WINE,TRIM4#
main58514-87037-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87038i198211-198408
main58514-87038-02i198408-198508
WINE,WINE,TRIM4#
main58514-87038-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87039i198211-198408
main58514-87039-02i198408-198508
WINE,WINE,TRIM4#
main58514-87039-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87040i198211-198408
main58514-87040-02i198408-198508
WINE,WINE,TRIM4#
main58514-87040-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87042i198211-198408
main58514-87042-02i198408-198508
WINE,WINE,TRIM4#
main58514-87042-06i198508-198808
BROWN,BROWN,TRIM4#
main58514-87049i198211-198408
W/RR HEATER
main58514-87049-02i198408-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58514-87049-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87050i198211-198408
W/RR HEATER
main58514-87050-02i198408-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58514-87050-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87074-06i198708-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87075-06i198508-198608
BROWN,BROWN,TRIM4#
main58514-87076-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87077-06i198708-198808
BROWN,BROWN,TRIM4#
main58514-87G01-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87G02-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58514-87G14-06i198708-198808
BROWN,BROWN,TRIM4#
main58514-87G15-06i198708-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
main58540-87038i198211-198408
main58540-87038-02i198408-198508
WINE,WINE,TRIM4#
main58540-87G02-06i198508-198603
BROWN,BROWN,TRIM4#
main58540-87G29-06i198603-198808
BROWN,BROWN,TRIM4#
58570CCARPET ASSY, REAR FLOOR
main58540-87037i198211-198408
W/O *SS
main58540-87039i198211-198408
W/*SS
main58540-87041-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-87041-03i198211-198308
GRAY,GRAY,TRIM1#
main58540-87041-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-87041-13i198308-198408
GRAY,GRAY,TRIM1#
main58540-87041-23i198404-198405
SURF SPECIAL,GRAY,GRAY,TRIM1#
main58540-87043-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-87043-03i198211-198408
GRAY,GRAY,TRIM1#
main58540-87043-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-87044-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-87044-03i198211-198308
GRAY,GRAY,TRIM1#
main58540-87044-12i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-87044-13i198308-198408
GRAY,GRAY,TRIM1#
main58540-87045i198211-198408
main58540-87046i198211-198408
main58540-87051i198211-198408
W/RR HEATER
main58540-87063i198310-198311
WHITE WAGON,BLUE
main58540-87064-02i198408-198501
WINE,WINE,TRIM4#
main58540-87065-02i198408-198501
WINE,WINE,TRIM4#
main58540-87065-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-87066-02i198408-198501
WINE,WINE,TRIM4#
main58540-87066-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-87067-02i198408-198501
WINE,WINE,TRIM4#
main58540-87067-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-87070-02i198408-198508
WINE,WINE,TRIM4#
main58540-87070-06i198508-198808
BROWN,BROWN,TRIM4#
main58540-87071-02i198408-198508
WINE,WINE,TRIM4#
main58540-87071-06i198508-198808
BROWN,BROWN,TRIM4#
main58540-87072-02i198408-198508
W/RR HEATER,WINE,WINE,TRIM4#
main58540-87072-06i198508-198608
W/RR HEATER,BROWN,BROWN,TRIM4#
main58540-87G03-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G04-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-87G04-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G05-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-87G05-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G11-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G12-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G12-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-87G13-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G13-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-87G14-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G14-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-87G26-04i198608-198808
W/BIG SEAT,BLUE,BLUE,TRIM8#
main58540-87G26-06i198608-198808
W/BIG SEAT,BROWN,BROWN,TRIM4#
main58540-87G34-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G35-04i198608-198808
BLUE,BLUE,TRIM8#
main58540-87G35-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G37-04i198608-198808
BLUE,BLUE,TRIM8#
main58540-87G37-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G38-06i198608-198808
W/RR HEATER,BROWN,BROWN,TRIM4#
58572SET PLATE, REAR FLOOR MAT, REAR
main58574-87001i198211-198808
main58574-87004i198211-198808
58573SET PLATE, REAR FLOOR MAT SIDE, FRONT RH
main58577-87001i198211-198808
58574SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
main58578-87001i198211-198408
main58578-87003i198211-198408
main58578-87004i198211-198408
58611PLATE, REAR FLOOR MAT SET, SIDE
main67917-87001i198211-198808
RH
main67918-87001i198408-198808
LH
main67918-87003i198211-198408
58634APLATE, ENGINE SERVICE HOLE MAT, RH
main58634-87001×2i198211-198808
58644APLATE, ENGINE SERVICE HOLE MAT, LH
main58634-87001×2i198211-198808
9015960058
main90159-60058
9016440059
main90164-40059
9016440060
main90164-40060
9016440064
main90164-40064
9018904103
main90189-04103

27 parts on this diagram · 3 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
