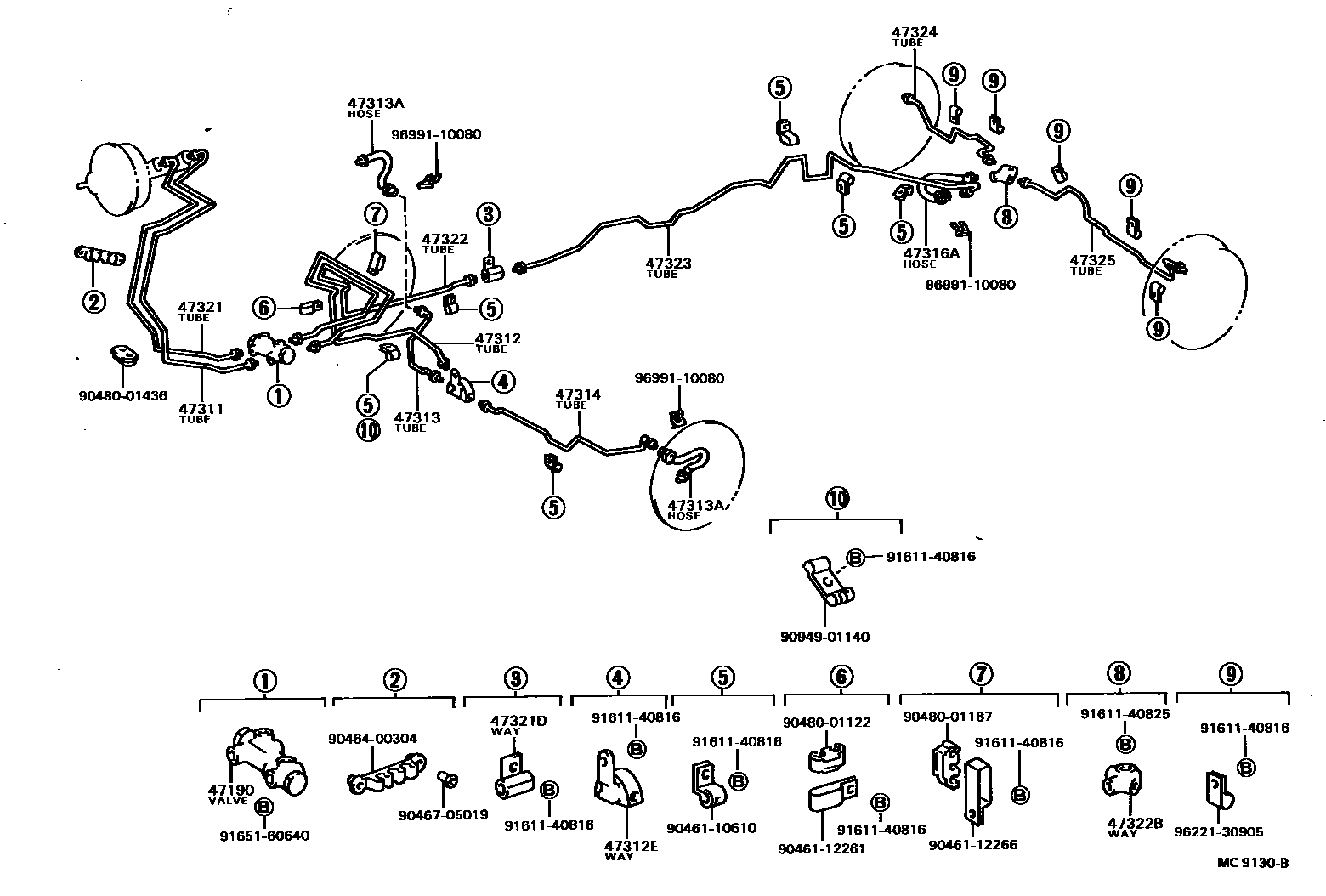

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28020iCR21,YR20,21198211-198508

main47190-28040iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

47311TUBE, FRONT BRAKE, NO.1

main47311-28050iCR21,YR20,21..MTM198211-198508

main47311-28060iCR26,KR26,YR26..MTM198211-198508

main47311-28090iCR21,YR20,21..4FC198211-198508

main47311-28110iCR27,YR26..4FC198211-198508

main47311-28120iCR21,YR20,21..MTM..(D,E,G,Q)198508-198808

main47311-28130iCR21,YR21..4FC;YR20..MRF..4FC;YR20..HRF..4FC..(E,Q)198508-198808

main47311-28160iCR26,28,KR26,YR26,28..MTM198508-198808

main47311-28170iCR27,28,YR26,28..4FC198508-198808

main47311-28180iCR3#,YR3#..5F198510-198808

main47311-28190iCR30,YR3#..4FC198510-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-28050iCR2#,KR26,YR2#198211-198508

main47312-28070iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10129iCR2#,KR26,YR2#198211-198508

main90413-10183iCR21,YR21;YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198608-198808

main90414-10014iCR3#,YR30198510-198608

47313TUBE, FRONT BRAKE, NO.3

main47313-28030iCR2#,KR26,YR2#198211-198508

main47313-28050iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198608

main47313-28070iCR3#,YR3#198510-198808

main47313-28090iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198608-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02505×2iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198608-198808

FR DISC BRAKE

main96940-32805×2iCR2#,KR26,YR2#198211-198310

FR DISC BRAKE

main96940-32855×2iCR2#,KR26,YR2#198310-198608

FR DISC BRAKE

main96940-33055×2iCR3#,YR3#198510-198808

main96950-32905×2iCR26,KR26,YR26..D,R198211-198508

FR DRUM BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47314-28030iCR2#,KR26,YR2#198211-198508

main47314-28050iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198608

main47314-28070iCR3#,YR3#198510-198808

main47314-28100iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198608-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02442iCR26,27,28,36,37,KR26,YR26,28,36198211-198808

main96940-33105iCR21,YR20,21198211-198808

main96940-33605iCR30,YR30198510-198808

47321TUBE, REAR BRAKE, NO.1

main47321-28050iCR21,YR20,21..MTM198211-198508

main47321-28060iCR26,KR26,YR26..MTM198211-198508

main47321-28090iCR21,YR20,21..4FC198211-198508

main47321-28110iCR27,YR26..4FC198211-198508

main47321-28120iCR21,YR20,21..MTM..(D,E,G,Q)198508-198808

main47321-28130iCR21,YR21..4FC;YR20..MRF..4FC;YR20..HRF..4FC..(E,Q)198508-198808

main47321-28160iCR26,28,KR26,YR26,28..MTM198508-198808

main47321-28170iCR27,28,YR26,28..4FC198508-198808

main47321-28180iCR3#,YR3#..5F198510-198808

main47321-28190iCR30,YR3#..4FC198510-198808

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iCR2#,KR26,YR2#198211-198808

main90412-10133iCR3#,YR3#198510-198808

47322TUBE, REAR BRAKE, NO.2

main47322-28050iCR2#,KR26,YR2#198211-198508

main47322-28070iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198608

main47322-28090iCR3#,YR3#198510-198808

main47322-28110iKR26,YR26,28198608-198808

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iCR26,27,28,36,37,KR26,YR26,28,36198211-198808

main90413-10130iCR21,30,YR20,21,30198211-198808

47323TUBE, REAR BRAKE, NO.3

main47323-28070iCR21,YR20,21198211-198508

main47323-28080iCR26,KR26,YR26198211-198508

main47323-28090iCR26,27,KR26,YR26198211-198508

W/LSPV

main47323-28120iCR26,27,28,KR26,YR26,28198608-198808

main47323-28140iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

main47323-28150iCR26,27,28,KR26,YR26,28198508-198608

W/LSPV

main47323-28170iCR30,YR30198510-198808

main47323-28180iCR36,37,YR36198510-198808

47324TUBE, REAR BRAKE, NO.4

main47324-28030iCR21,YR20,21198211-198608

main47324-28031iCR21,YR21;YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198608-198808

main47324-28050iCR26,27,28,KR26,YR26,28198211-198808

main47324-28080iCR36,37,YR36198510-198808

main47324-28090iCR30,YR30198510-198808

47325TUBE, REAR BRAKE, NO.5

main47325-28050iCR21,YR20,21198211-198808

main47325-28070iCR26,27,28,KR26,YR26,28198211-198808

main47325-28100iCR36,37,YR36198510-198808

main47325-28110iCR30,YR30198510-198808

9046110610

main90461-10610

9046112261

main90461-12261

9046112266

main90461-12266

9046400304

main90464-00304

9046705019

main90467-05019

9048001122

main90480-01122

9048001187

main90480-01187

9048001436

main90480-01436

9094901140

main90949-01140

9161140816

main91611-40816

9161140825

main91611-40825

9165160640

main91651-60640

9622130905

main96221-30905

9699110080

main96991-10080

29 parts on this diagram · 8 diagrams in section
