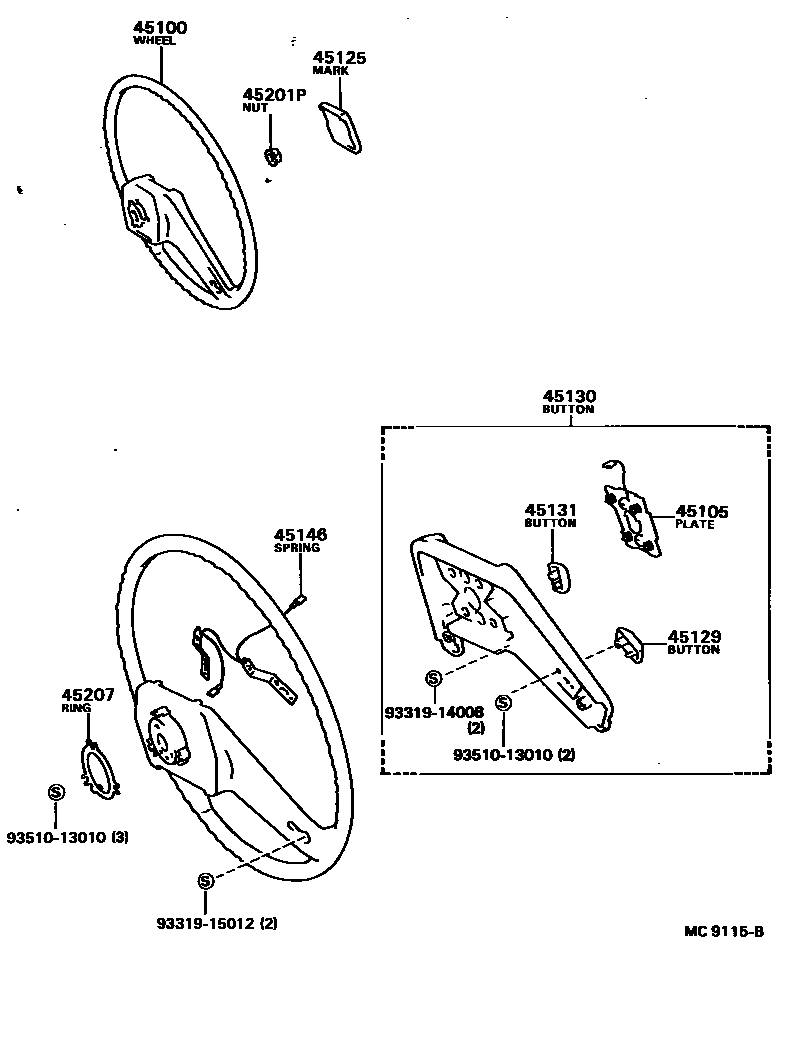

STEERING WHEEL

0001 1 0002 1 0003 1 0005 1

45100WHEEL ASSY, STEERING

main45100-32010-02iCR2#,KR26,YR20,26..D,G,N,R198211-198508

WINE,RED/MAROON,TRIM4#

main45100-32020-02iCR21,YR20,21..07S,08S198211-198508

URETHAN TYPE,WINE,RED/MAROON,TRIM4#

main45100-32020-03iYR20,21..07S198211-198408

URETHAN TYPE,GRAY,GRAY,TRIM1#

main45100-32020-04iCR21,YR20,21..E,Q,X198211-198508

URETHAN TYPE,BLUE,BLUE,TRIM1#

main45100-32020-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE

main45100-32020-05iYR20,21..07S198211-198408

URETHAN TYPE,BEIGE,BEIGE,TRIM4#

main45100-32040-05iCR21,30,YR20,21,30..E,Q198508-198808

URETHAN TYPE,BEIGE,BEIGE,TRIM4#

main45100-32040-14iCR21,30,YR20,21,30..E,Q198508-198808

URETHAN TYPE,BLUE,BLUE,TRIM8#

main45100-32060-05iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

BEIGE,BEIGE,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32010iCR2#,KR26,YR20,26..D,G,N,R198211-198508

main45105-32020iCR21,YR20,21..07S,08S198211-198508

URETHAN TYPE

main45105-32030iCR21,30,YR20,21,30..E,Q198508-198808

URETHAN TYPE

main45105-32040iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

45125MARK, STEERING WHEEL PAD

main45125-28030-02iCR2#,KR26,YR2#..D,E,G,N,R198211-198508

TOWN ACE,WINE,RED/MAROON,TRIM4#

main45125-28030-03iYR20,21..07S198211-198408

TOWN ACE,GRAY,GRAY,TRIM1#

main45125-28030-04iCR21,YR20..E198211-198508

TOWN ACE,BLUE,BLUE,TRIM1#

main45125-28030-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE

main45125-28030-05iYR20,21..07S198211-198408

TOWN ACE,BEIGE,BEIGE,TRIM4#

main45125-28050-02iCR21,YR20,21..D,E,G,X198211-198508

MASTER ACE,WINE,RED/MAROON,TRIM4#

main45125-28050-03iYR20,21..07S198211-198408

MASTER ACE,GRAY,GRAY,TRIM1#

main45125-28050-04iCR21,YR20..E198211-198508

MASTER ACE,BLUE,BLUE,TRIM1#

main45125-28050-05iYR20,21..07S198211-198408

MASTER ACE,BEIGE,BEIGE,TRIM4#

main45125-28070iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE

main45125-28080iCR21,30,YR20,21,30..E,Q198508-198808

MASTER ACE

main45125-28090iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

TOWN ACE

main45125-28100iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

MASTER ACE

45129BUTTON, HORN, NO.2

main45129-32010-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main45129-32010-04iCR21,YR20..E198211-198508

BLUE,BLUE,TRIM1#

main45129-32010-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE

main45129-32010-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

main45129-32010-12iCR2#,KR26,YR2#198211-198508

WINE,RED/MAROON,TRIM4#

45130BUTTON ASSY, HORN

main45130-28020-04iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE,BLUE,BLUE,TRIM8#

main45130-28020-05iCR21,30,YR20,21,30..E,Q198508-198808

TOWN ACE,BEIGE,BEIGE,TRIM4#

main45130-28030-04iCR21,30,YR20,21,30..E,Q198508-198808

MASTER ACE,BLUE,BLUE,TRIM8#

main45130-28030-05iCR21,30,YR20,21,30..E,Q198508-198808

MASTER ACE,BEIGE,BEIGE,TRIM4#

main45130-28040-05iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,3#,KR26,YR26,28,3#..B,D,G,N,R198508-198808

TOWN ACE,BEIGE,BEIGE,TRIM4#

main45130-28050-05iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,28,30,37,YR28,3#..B,D,G198508-198808

MASTER ACE,BEIGE,BEIGE,TRIM4#

main45130-32010-02iCR2#,KR26,YR20,26..D,G,N,R198211-198508

WINE,RED/MAROON,TRIM4#

45131BUTTON, HORN, NO.1

main45131-32010-02iCR2#,KR26,YR2#198211-198508

WINE,RED/MAROON,TRIM4#

main45131-32010-03iYR20,21..07S198211-198408

GRAY,GRAY,TRIM1#

main45131-32010-04iCR21,YR20,21..E,Q,X198211-198508

BLUE,BLUE,TRIM1#

main45131-32010-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE

main45131-32010-05iYR20,21..07S198211-198408

BEIGE,BEIGE,TRIM4#

45146SPRING, HORN BUTTON CONTACT

main45146-32010iCR2#,KR26,YR20,26..D,G,N,R198211-198508

main45146-32020iCR21,YR20,21..07S,08S198211-198508

URETHAN TYPE

45201PNUT, STEERING WHEEL SET

main90179-12086iCR2#,3#,KR26,YR2#,3#198211-198808

45207RING, HORN CONTACT

main45176-20030iCR2#,3#,KR26,YR20,26,28,3#..B,D,G,N,R198211-198808

main45176-32010iCR21,YR20,21..07S,08S198211-198408

URETHAN TYPE

main45176-32010iYR21;CR21,YR20..E,Q,X198408-198508

9331914008

main93319-14008

9331915012

main93319-15012

9351013010

main93510-13010

12 parts on this diagram · 4 diagrams in section
