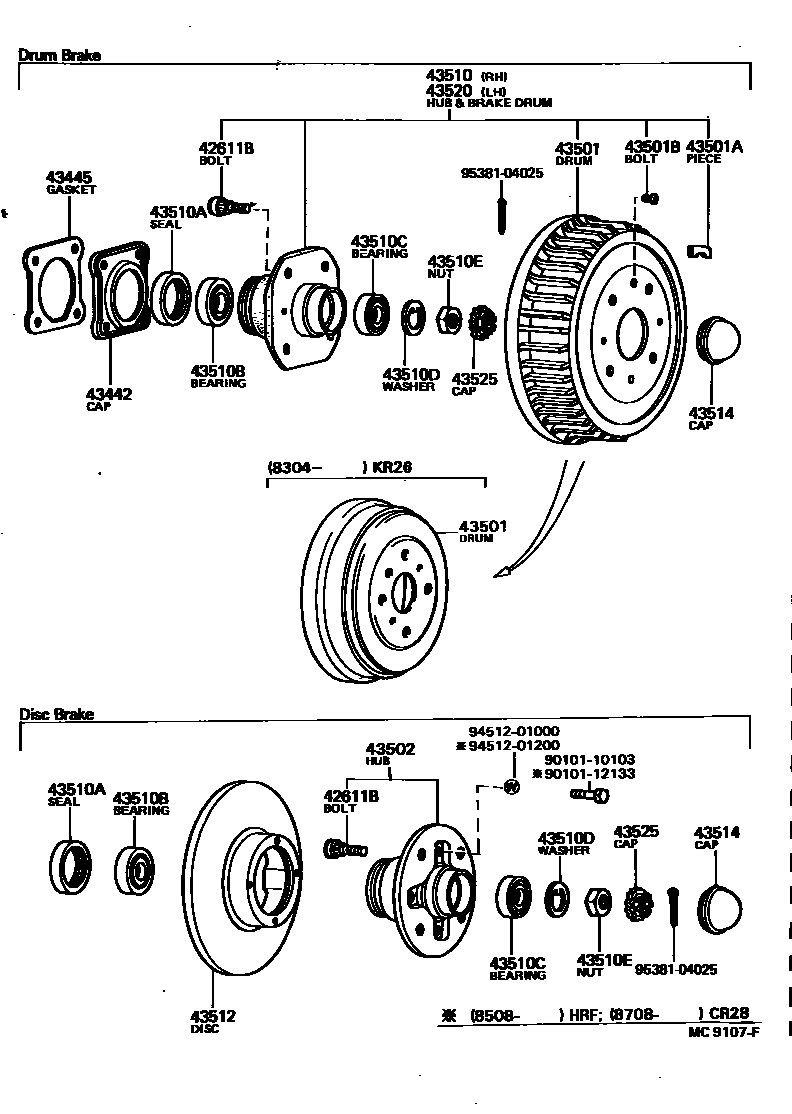

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×8iCR26,KR26,YR26..D,R198211-198309

FR DRUM BRAKE

main90942-02036×8iCR2#,KR26,YR2#198211-198309

FR DISC BRAKE

main90942-02047×10iCR3#,YR3#198510-198808

main90942-02048×8iCR2#,KR26,YR2#198309-198808

FR DISC BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20030×2iCR26,KR26,YR26..D,R198211-198508

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20030×2iCR26,KR26,YR26..D,R198211-198508

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-20031×2iCR26,KR26,YR26..D,R198211-198304

main43512-27010×2iKR26198304-198508

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01045×4iCR26,YR26..D198304-198508

main90937-01046×4iCR26,YR26..D198304-198508

main90937-01047×4iCR26,YR26..D198304-198508

main90937-01117×4iKR26198304-198508

main90937-01118×4iKR26198304-198508

main90937-01119×4iKR26198304-198508

main90937-01146×4iKR26198304-198508

main90937-01215×4iKR26198304-198508

main90937-01217×4iCR26,KR26,YR26..D,R198211-198304

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2iCR26,KR26,YR26..D,R198211-198508

43502HUB SUB-ASSY, FRONT AXLE

main43502-20010×2iCR21..MRF198508-198808

main43502-28020×2iCR3#,YR3#198510-198808

main43502-28030×2iCR28198708-198808

14IN DISC

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-20080iCR26,KR26,YR26..D,R198212-198304

main43510-27020iKR26198304-198508

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iCR2#,KR26,YR2#198211-198808

main90311-66002×2iCR3#,YR3#198510-198808

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-50011×2iCR3#,YR3#198510-198808

main90368-31067×2iCR2#,KR26,YR2#198211-198808

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2iCR2#,KR26,YR2#198211-198808

main90368-45087×2iCR3#,YR3#198510-198808

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iCR2#,KR26,YR2#198211-198808

main90214-42030×2iCR3#,YR3#198510-198808

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iCR2#,KR26,YR2#198211-198808

43512DISC, FRONT

main43512-28020×2iCR2#,KR26,YR20,26..D,E,G,N,R,X198211-198508

13IN DISC

main43512-28030×2iYR20..Q;CR21,YR21198211-198408

14IN DISC

main43512-28040×2iCR3#,YR3#198510-198808

main43512-28050×2iYR20..HRF..5F..G;CR21,YR20,21..HRF..(E,Q)198508-198808

14IN DISC

43514CAP, FRONT HUB GREASE

main43514-27010×2iCR2#,KR26,YR2#198211-198808

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-20080iCR26,KR26,YR26..D,R198211-198304

main43510-27020iKR26198304-198508

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iCR2#,KR26,YR2#198211-198808

9010110103

main90101-10103

9010112133

main90101-12133

9451201000

main94512-01000

9451201200

main94512-01200

9538104025

main95381-04025

22 parts on this diagram · 2 diagrams in section
