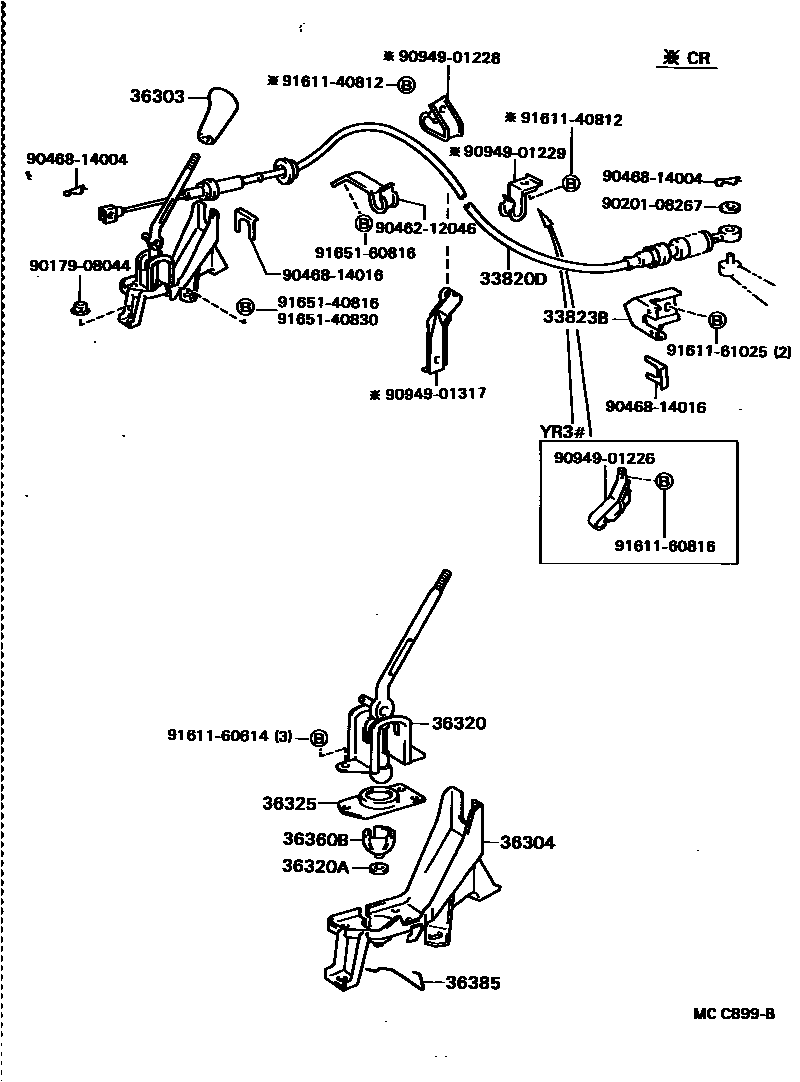

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33820DCABLE ASSY, TRANSFER CONTROL

main33820-28050iYR3#..5F198510-198808

main33820-28060iCR3#..5F198510-198808

main33820-28070iYR3#..4FC198510-198808

main33820-28080iCR30..4FC198510-198808

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iCR3#,YR3#198510-198808

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-04iCR30,YR30..E,Q198510-198808

BLUE,BLUE,TRIM8#

main36303-28010-06iCR3#,YR3#198510-198808

BROWN,BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-28070iCR3#,YR3#198510-198808

36320LEVER ASSY, TRANSFER SHIFT

main33503-28100iCR3#,YR3#198510-198808

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-04001iCR3#,YR3#198510-198808

36325CAP, TRANSFER FRONT DRIVE SHIFT LEVER

main33554-28040iCR3#,YR3#198510-198808

36360BSEAT, TRANSFER SHIFT LEVER BALL

main33556-28030iCR3#,YR3#198510-198609

main33556-28040iCR3#,YR3#198609-198808

36385SPRING, TRANSFER SHIFT LEVER TORSION

main36385-28010iCR3#,YR3#198510-198808

9017908044

main90179-08044

9020108267

main90201-08267

9046212046

main90462-12046

9046814004

main90468-14004

9046814016

main90468-14016

9094901226

main90949-01226

9094901228

main90949-01228

9094901229

main90949-01229

9094901317

main90949-01317

9161140812

main91611-40812

9161160614

main91611-60614

9161160816

main91611-60816

9161161025

main91611-61025

9165140816

main91651-40816

9165140830

main91651-40830

9165160816

main91651-60816

25 parts on this diagram · 2 diagrams in section
