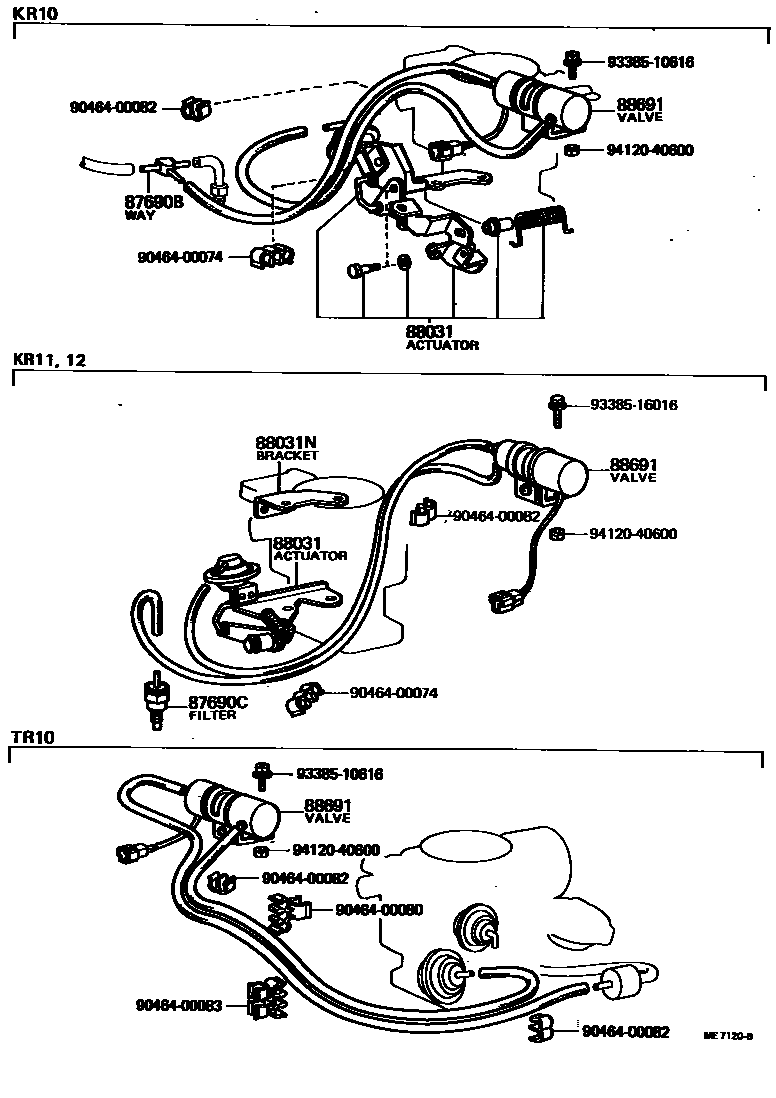

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

87690BWAY, 3

main90413-04001iTR15197808-198210

87690CFILTER ASSY, GAS

main90917-11022iKR1#197802-198210

88031ACTUATOR SET, IDLE-UP

main88031-12050iTR11,15197808-198101

main88031-12060iTR1#198101-198210

main88031-12081iKR12197910-198210

main88031-87001iKR10197610-197802

main88031-87002iKR11197802-197910

88031NBRACKET, IDLE-UP ACTUATOR

main88649-87002iKR11197802-197910

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-87001iKR10197610-197802

main88690-87002iTR11197610-197808

main88690-87003iTR10197610-197910

main88690-87004iKR1#197802-198101

main88690-87005iTR11,15197808-198210

main88690-87006iKR12198101-198210

main88690-95D00iRR1#,2#197808-198210

9046400074

main90464-00074

9046400080

main90464-00080

9046400082

main90464-00082

9046400083

main90464-00083

9338510616

main93385-10616

9338516016

main93385-16016

9412040600

main94120-40600

12 parts on this diagram · 2 diagrams in section
