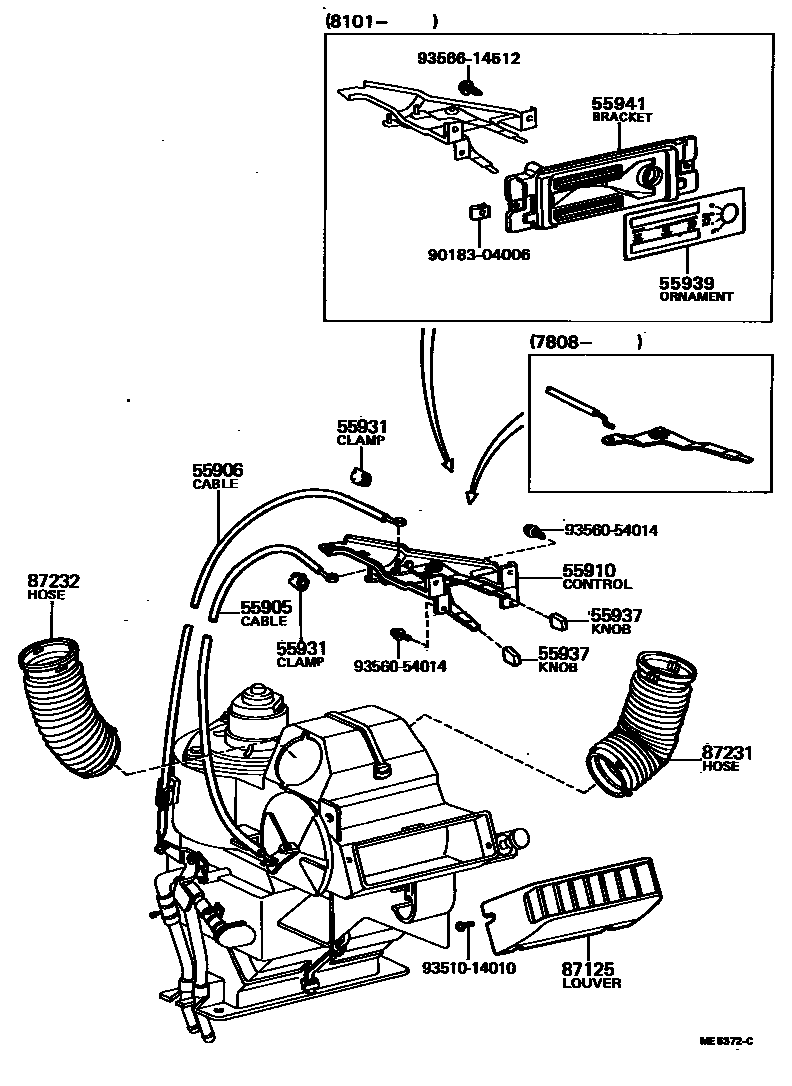

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0003 1 0004 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-87001iKR1#,TR1#197610-197808

L=585

main55906-87002iKR1#,RR1#,2#,TR1#197808-198101

L=585

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-87001iKR1#,TR1#197610-197808

L=437

main55907-87002iKR1#,RR1#,2#,TR1#197808-198101

L=437

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-87004iKR12,TR1#198101-198210

FR HEATER

main55910-87005iTR15198101-198210

RR HEATER

main55910-87901iKR1#,TR1#197610-197808

main55910-87902iKR11,RR10,20,TR1#197808-197910

main55910-87903iRR11,21198101-198210

55931CLAMP, HEATER CONTROL WIRE

main55933-14010×2iKR1#,RR1#,2#,TR1#197610-198101

main55933-24010×4iKR12,TR1#198101-198210

55937KNOB, HEATER CONTROL LEVER

main55905-20140×3iKR12,TR1#198101-198210

main55937-87205×2iKR12,RR11,21,TR1#198007-198101

main55937-87501×2iKR1#,RR1#,2#,TR1#197610-198007

55939ORNAMENT, HEATER CONTROL

main81943-87001iRR11,21198101-198210

55941BRACKET, HEATER CONTROL

main55912-95D00iRR11,21198101-198210

87125LOUVER, VENTILATION

main87125-87001iKR1#,RR1#,2#,TR1#197610-198101

87231HOSE, HEATER DEFROSTER, RH

main87231-87001iKR1#,RR1#,2#,TR1#197610-198101

87232HOSE, HEATER DEFROSTER, LH

main87231-87001iKR1#,RR1#,2#,TR1#197610-198101

9018304006

main90183-04006

9351014010

main93510-14010

9356054014

main93560-54014

9356614512

main93566-14512

14 parts on this diagram · 3 diagrams in section
