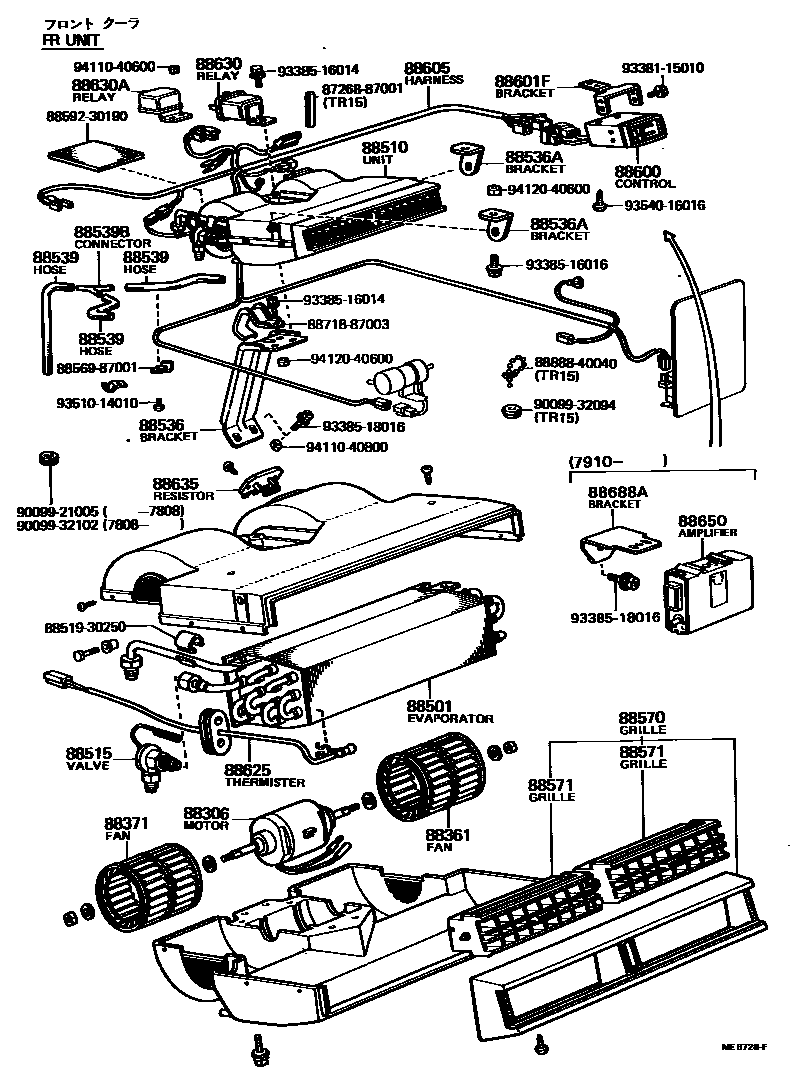

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

88306MOTOR SUB-ASSY, COOLER BLOWER, NO.1

main87104-87004iTR15198101-198210

main87104-95700iTR15197910-198101

RR

main88550-30300iKR1#,RR1#,2#,TR1#197610-198101

FR

88361FAN, COOLER BLOWER, NO.1

main87105-14030iTR15197910-198210

RR

main88541-10010iRR11,21198101-198210

88371FAN, COOLER BLOWER, NO.2

main88541-10020iKR1#,RR10,20,TR1#197610-197910

FR

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-87001iKR10,TR10,11197610-197910

main88501-87002iTR15197808-197910

RR

main88501-87003iKR12,TR1#198101-198210

FR

main88501-87004iTR15198101-198210

RR

main88501-95701iTR15197910-198101

RR

88510UNIT ASSY, COOLER

main88510-87001iKR10,TR10,11197610-197910

main88510-87002iKR11,RR1#,2#197802-198210

main88510-87003iTR15197808-198101

FR

main88510-87004iTR15197808-197910

RR

main88510-87008iKR12,TR1#198101-198210

FR

main88510-87009iTR15198101-198210

RR

main88510-95701iTR15197910-198101

RR

88515VALVE, COOLER EXPANSION

main88515-12050iKR10,TR10,11197610-197910

main88515-12051iRR11,21198101-198210

main88515-20040×2iKR12,TR1#198101-198210

88536BRACKET, COOLING UNIT, NO.1

main88536-87001iKR1#,RR10,20,TR1#197610-197910

main88536-87008iTR15197910-198101

RR

main88536-87009iKR12,RR11,21,TR1#197910-198101

FR

main88688-87005iKR12,TR1#198101-198210

88536ABRACKET, COOLING UNIT, NO.2

main88536-87002×2iKR1#,RR10,20,TR1#197610-197910

main88536-87006iKR12,RR11,21,TR1#197910-198101

RH

main88536-87007iKR12,RR11,21,TR1#197910-198101

LH

main88688-87004iKR12,TR1#198101-198210

88539HOSE, COOLER UNIT DRAIN, NO.1

main88530-87002iKR12,TR1#198101-198210

main88539-12010iRR11,21198101-198210

L=400

main88539-22011×2iKR1#,RR1#,2#,TR1#197610-198101

L=300

main90099-33015iTR15197808-197910

L=250

88539BCONNECTOR, COOLER DRAIN HOSE

main88894-22010iKR1#,RR1#,2#,TR1#197610-198101

88570GRILLE SUB-ASSY, COOLER AIR OUTLET

main88560-95A00iTR15197808-197910

RR

main88570-30600iKR1#,RR10,20,TR1#197610-197910

FR

main88893-95700iTR15197910-198101

RR

88571GRILLE, AIR OUTLET

main88571-12040×2iKR1#,RR1#,2#,TR1#197610-198101

88600CONTROL ASSY, AIR CONDITIONER

main88660-10010iKR1#,RR10,20,TR10,11197610-197910

main88660-87001iTR15197808-197910

88601FBRACKET, COOLER CONTROL SWITCH

main88649-87001iKR1#,RR10,20,TR1#197610-197910

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-87001iKR1#197610-197808

main88605-87002iTR1#197610-197808

main88605-87003iTR15197812-197910

main88605-87004iTR10197808-197910

main88605-87005iKR11197808-197910

main88605-87009iTR15197910-198101

N0.1

main88605-87010iTR15197910-198101

N0.2

main88605-87011iKR12197910-198101

main88605-87012iTR11197910-198101

main88605-87013iTR15198101-198210

W/*ODAC

main88605-87017iKR12,TR11198101-198210

main88605-87019iTR15198101-198210

main88605-95D00iRR10,20197808-197911

main88605-95D01iRR11,21197911-198210

88625THERMISTOR, COOLER, NO.1

main88625-12040iRR1#,2#197910-198210

main88625-12050iTR15198101-198210

RR

main88625-20040iKR12,TR1#198101-198210

FR

main88625-87001iKR12,TR11197910-198101

88630RELAY ASSY, COOLER

main88630-10010×2iTR15197910-198101

main88630-14010iKR12,RR11,21,TR11197910-198101

main90987-03001iTR15198101-198210

88630ARELAY ASSY, COOLER

main88630-12020iTR15197808-198101

main88630-60020iTR15198101-198210

88635RESISTOR, COOLER UNIT BLOWER

main87138-12090iTR15198101-198210

main88635-30370iRR11,21198101-198210

main88635-95700iTR15197910-198101

RR

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-12060iTR15198101-198210

main88650-14010iKR12,TR11197910-198210

main88650-14021iTR15197910-198101

main88650-22040iRR11,21197911-198210

main88650-95A03iTR15198101-198210

W/*ODAC

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-87002iKR12,TR1#197910-198101

main88688-87009iKR12,TR1#198101-198210

main88688-95D00iRR11,21197911-198210

8726887001COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-87001

8851930250HOLDER, REMOTE BULB

main88519-30250

8856987001CLAMP (FOR COOLER RELAY)

main88569-87001

8859230190RETAINER (FOR COOLER UNIT BRACKET)

main88592-30190

8871887003PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87003

8888840040BAND (FOR COOLER COMPRESSOR)

main88888-40040

9009921005

main90099-21005

9009932094

main90099-32094

9009932102

main90099-32102

9338115010

main93381-15010

9338516014

main93385-16014

9338516016

main93385-16016

9338518016

main93385-18016

9351014010

main93510-14010

9354016016

main93540-16016

9411040600

main94110-40600

9411040800

main94110-40800

9412040600

main94120-40600

39 parts on this diagram · 6 diagrams in section
