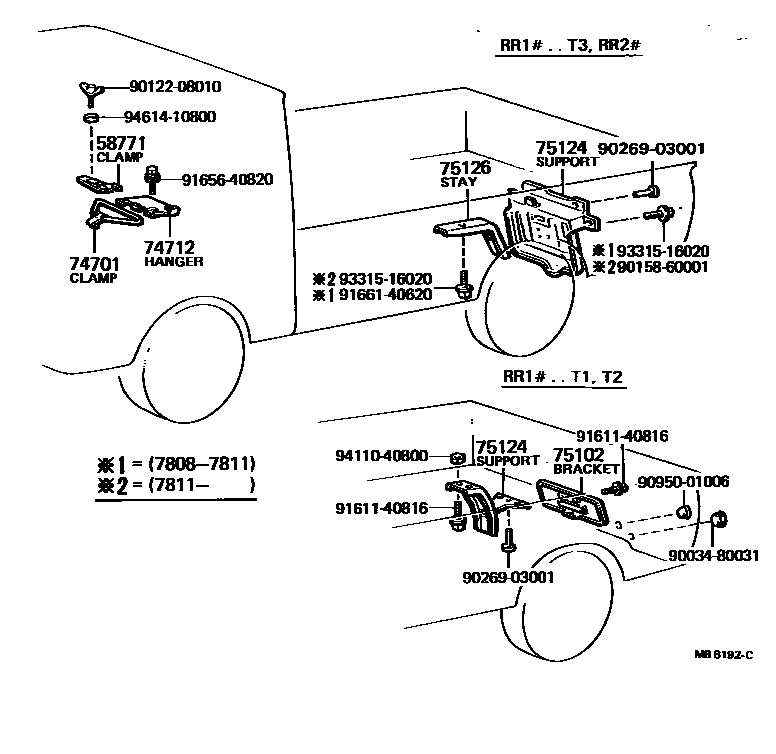

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1

58771CLAMP, JACK, NO.1

main74713-87001iKR12,TR11; TR15..GEX,SUE198101-198210

main74713-87002iTR15..CNP,CTM,DLX,STD198101-198210

main74713-95702iRR1#,2#197808-198210

74701CLAMP SUB-ASSY, TOOL BAG

main74701-95601iRR1#,2#,TR11,15..03S,07S,08S197610-198210

74712HANGER, JACK HOLDER

main74701-95D00iRR1#,2#197808-198210

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-25020iRR10..T1,T2197808-197911

75124SUPPORT, REAR LICENSE BRACKET

main66490-95016iRR21..T3197911-198210

main66490-95017iRR20..T1197808-197904

main66490-95018iRR11,21..T2..TS197911-198210

main66490-95D00iRR1#..T1197808-198210

main66490-95D01iRR10..T2197808-197911

main66490-95D02iRR21..TB198101-198210

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66407-95010iRR20..T2,T3197808-197911

main66407-95011iRR11..T3197911-198210

main66493-95D02iRR11,21..T2..TS197911-198210

main66493-95D03iRR21..TB198101-198210

9003480031

main90034-80031

9012208010

main90122-08010

9015860001

main90158-60001

9026903001

main90269-03001

9095001006

main90950-01006

9161140816

main91611-40816

9165640820

main91656-40820

9166140620

main91661-40620

9331516020

main93315-16020

9411040800

main94110-40800

9461410800

main94614-10800

17 parts on this diagram · 3 diagrams in section
