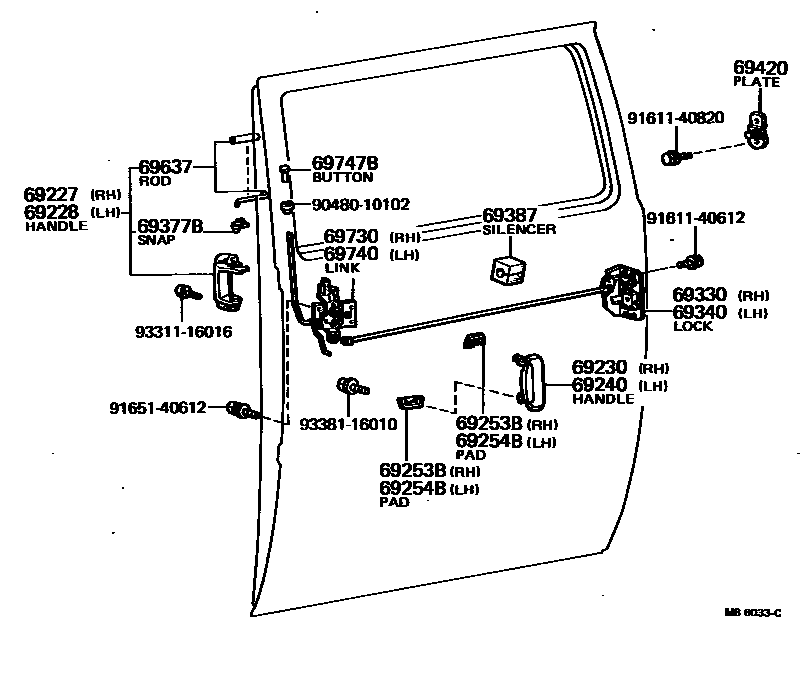

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69730-87001iKR12,TR11..V5D197910-198210

main69730-95700iKR1#,TR10..V5D197610-197910

69228HANDLE, REAR DOOR INSIDE, LH

main69740-87001iTR15197808-198210

main69740-87002iKR12,TR11197910-198210

main69740-95700iKR1#,TR10,11197610-197910

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95790iKR1#,TR10,11..V5D197610-198210

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95790iKR1#,TR1#197610-198210

69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH

main69243-95700iKR1#,TR10,11..V5D197610-198210

UPR

main69249-95700iKR1#,TR10,11..V5D197610-198210

LWR

69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH

main69246-95700iKR1#,TR1#197610-198210

UPR

main69247-95700iKR1#,TR1#197610-198210

LWR

69330LOCK ASSY, REAR DOOR, RH

main69330-95700iKR1#,TR10,11..V5D197610-198210

69340LOCK ASSY, REAR DOOR, LH

main69340-95700iKR1#,TR1#197610-198210

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020×2iKR1#,TR1#197610-197910

69387SILENCER, DOOR LOCK REMOTE CONTROL LINK

main69388-95660iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69430-95700iKR1#,TR10,11..V5D197610-198210

RH

main69440-95700iKR1#,TR1#197610-198210

LH

69637ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL

main69637-95700iKR1#,TR1#197610-198210

LH

main69638-95700iKR1#,TR10,11..V5D197610-198210

RH

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69620-95701iKR1#,TR10,11..V5D197610-198210

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69630-95701iKR1#,TR1#197610-198210

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-20020iKR1#,TR10,11..V5D; TR11,15..WG;KR1#,TR10,11..V4D197610-198210

9048010102

main90480-10102

9161140612

main91611-40612

9161140820

main91611-40820

9165140612

main91651-40612

9331116016

main93311-16016

9338116010

main93381-16010

21 parts on this diagram · 1 diagram in section
