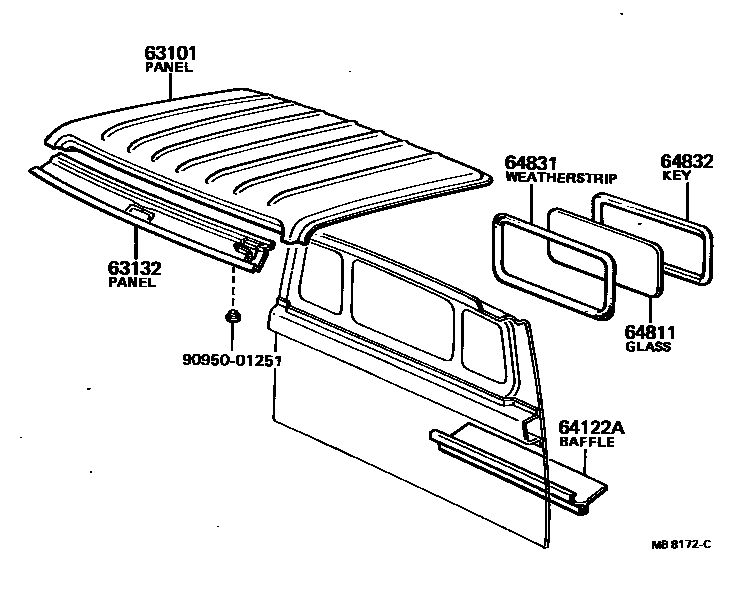

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

63101PANEL SUB-ASSY, ROOF

main63111-87001iKR1#,TR1#..SRF197610-198210

main63111-87002iKR1#,TR1#..HRF197808-198210

main63111-87003iTR15..SNR..08S197808-198210

main63111-87004iTR15..SNR..(CNP,GEX,SUE)198201-198210

W/SUN & MOON ROOF

main63111-95D00iRR1#,2#197808-198210

63132PANEL, WINDSHIELD HEADER, INNER

main63102-87001iKR10,RR1#,2#;KR11,12,TR1#..SRF197706-198210

main63102-87002iKR1#,TR1#..HRF,SNR197808-198210

main63132-87002iKR10,TR1#197610-197706

64122ABAFFLE, DUST REAR BODY

main64122-95D00iRR10,20197808-197911

main64122-95D01iRR11,21197911-198210

main64122-95D02iRR11,21..(T2,T3)..TS198005-198210

64811GLASS, BACK WINDOW

main64811-95D00iRR1#,2#197808-198210

*TEM,T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95D00iRR1#,2#197808-198210

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iRR1#,2#197808-198210

9095001251

main90950-01251

7 parts on this diagram · 7 diagrams in section
