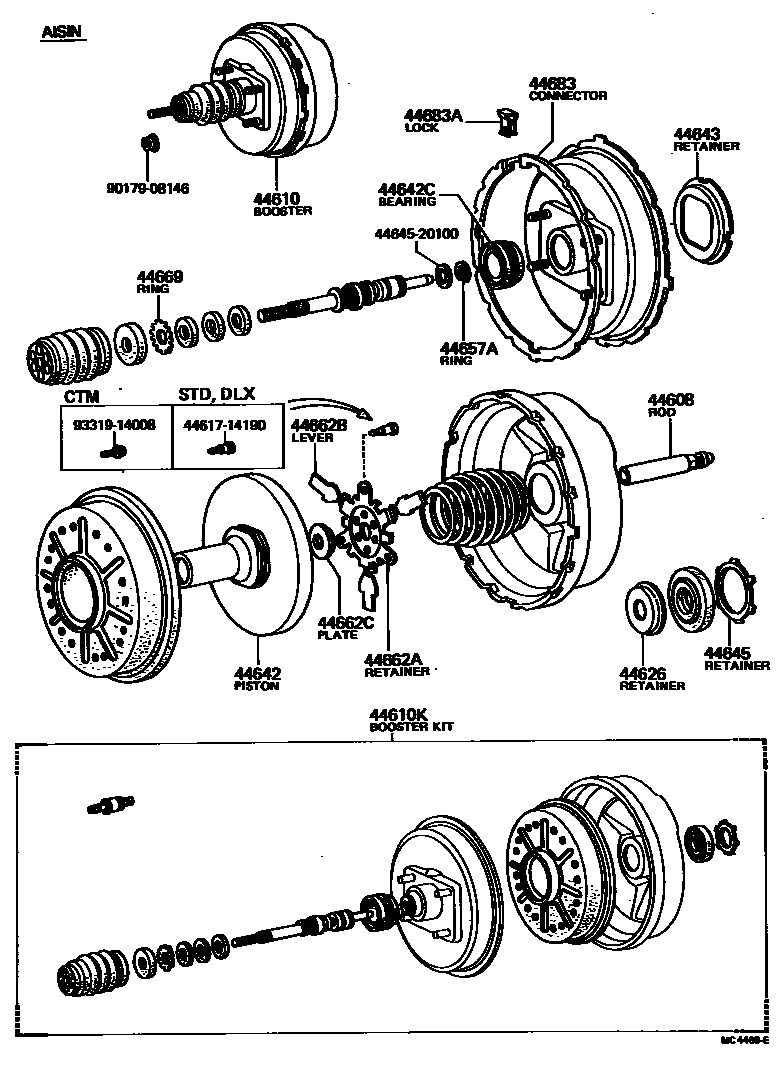

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iKR1#,RR10,20,TR1#197610-197910

AISIN

main44606-35100iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

AISIN

main44608-14040iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

JKC

main44608-28130iTR15..GEX198101-198210

JKC

44610BOOSTER ASSY, BRAKE

main44610-28010iKR10,TR1#..DLX,STD197610-197802

main44610-28020iTR11..CTM197610-197802

main44610-28050iKR11,RR10,20,TR1#..DLX,STD197802-197910

main44610-28060iTR11,15..CTM,SUE197802-197910

main44610-28080iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

FR DRUM BRAKE

main44610-28100iTR11;KR12,TR15..CNP,CTM,HDX,SUE198101-198210

FR DISC BRAKE

main44610-28130iTR15..GEX198101-198210

FR DISC BRAKE

44610KBOOSTER KIT, BRAKE

main04443-26010iKR10,TR1#197610-197802

AISIN

main04443-28010iKR10,TR1#..DLX,STD197610-197802

JKC

main04443-28020iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

JKC,FR DRUM BRAKE

main04443-28030iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197802-198210

AISIN

main04443-28040iTR11;KR12,TR15..CNP,CTM,HDX,SUE198101-198210

JKC,FR DISC BRAKE

main04443-28060iTR15..GEX198101-198210

JKC

44626RETAINER, BOOSTER ROD CUP

main44626-60010iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14040iTR11..CTM197610-197802

JKC

main44642-14170iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

main44642-20140iTR11,15..CTM,SUE197802-198101

JKC,FR DISC BRAKE

main44642-22110iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

JKC,FR DRUM BRAKE

main44642-28030iKR10,TR1#..DLX,STD197610-197802

JKC

44642CBEARING, BOOSTER PISTON

main44623-25010iKR10,TR1#197610-197802

44643RETAINER, DIAPHRAGM

main44643-60010iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

main44645-22020iKR1#,RR1#,2#,TR1#197610-198210

JKC

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iKR1#,RR10,20,TR1#197610-197910

44662ARETAINER, REACTION, NO.2

main44662-14190iKR1#,RR10,20,TR1#..DLX,STD197610-197910

main44662-20100iTR11,15..CTM,SUE197610-197910

main44662-35100iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

AISIN

44662BLEVER, REACTION

main44661-14190×3iKR1#,RR10,20,TR1#..DLX,STD197610-197910

main44661-35100×3iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

AISIN

main44661-60010×3iTR11,15..CTM,SUE197610-197910

44662CPLATE, REACTION, NO.1

main44607-22330iTR11;KR12,TR15..CNP,CTM,HDX,SUE198101-198210

FR DISC BRAKE,AISIN

main44607-27050iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE197910-198210

FR DRUM BRAKE,AISIN

main44653-12100iKR11,RR10,20,TR1#..DLX,STD197802-197910

main44653-20100iKR10,TR1#..DLX,STD197610-197802

main44653-20150iTR11,15..CTM,SUE197802-197910

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20150iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

44683ALOCK, CONNECTOR

main44683-20100iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

AISIN

4461714190JOINT, BOOSTER PIPE

main44617-14190

4464520100RETAINER, BOOSTER PUSH ROD SEAL

main44645-20100

9017908146

main90179-08146

9331914008

main93319-14008

19 parts on this diagram · 6 diagrams in section
