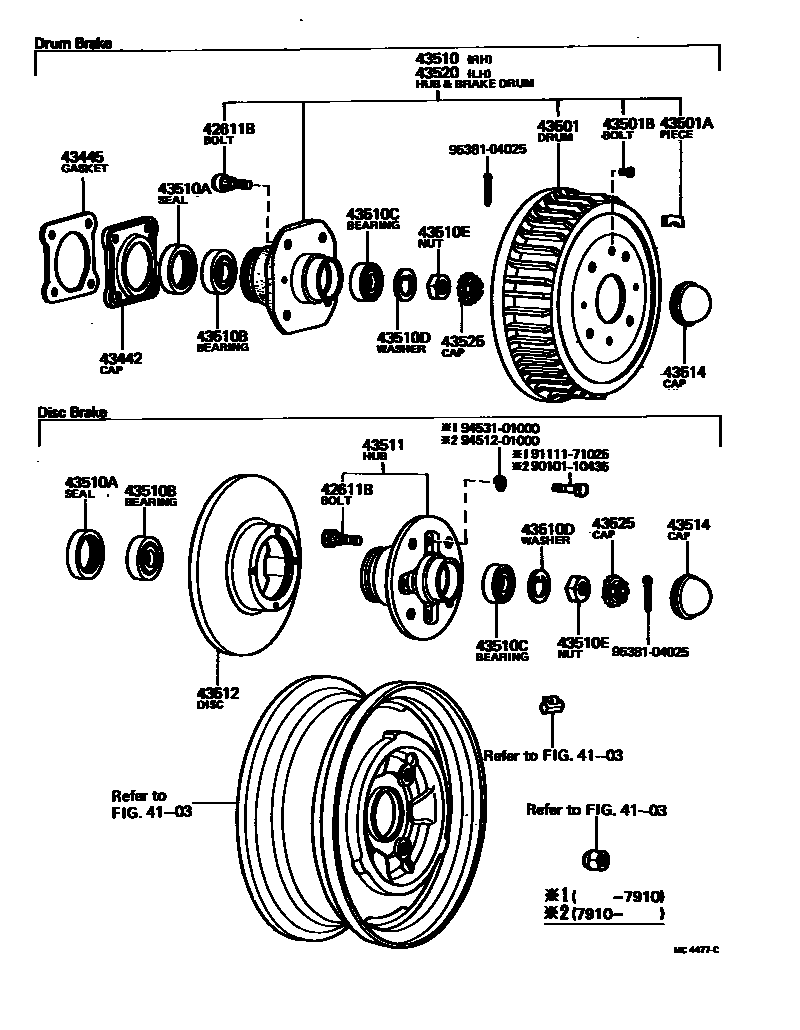

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02021×8iKR10,TR1#197610-197703

*12-1.5PX38-24

main90942-02035×8iKR1#,TR1#..DLX,STD197703-197910

*12-1.5PX36-23.5

main90942-02036×8iTR11,15..CTM,SUE197703-198101

*12-1.5PX33-20.5,DISC BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-20030×2iKR12,RR11,21,TR1#197910-198210

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-20030×2iKR1#,RR10,20,TR1#..DLX,STD197610-197910

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-20031×2iKR1#,TR1#..DLX,STD197610-197910

main43512-28010×2iRR1#,2#197808-198210

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01045×2iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main90937-01046×2iKR12,RR11,21,TR1#197910-198101

main90937-01047×2iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main90937-01065×2iRR10,20197902-197911

55G

main90937-01217×2iKR11,TR1#..DLX,STD197902-197910

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2iKR12,RR11,21,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-20080iKR1#,TR1#..DLX,STD197610-197910

main43510-28010iRR1#,2#197808-198210

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48122×2iKR1#,RR1#,2#,TR1#197610-198210

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31067×2iKR1#,RR1#,2#,TR1#197610-198210

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2iKR1#,RR1#,2#,TR1#197610-198210

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iKR1#,RR1#,2#,TR1#197610-198210

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iKR1#,RR1#,2#,TR1#197610-198210

43511HUB, FRONT AXLE

main43502-20010×2iTR11,15..CTM,SUE197610-198101

43512DISC, FRONT

main43512-20040×2iTR11,15..CTM,SUE197610-197910

main43512-27020×2iTR15..CTM,SUE197910-198101

43514CAP, FRONT HUB GREASE

main43514-22020×2iKR1#,RR10,20,TR1#197610-198210

main43514-27010×2iRR11,21197911-198210

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-20080iKR1#,TR1#..DLX,STD197610-197910

main43510-28010iRR1#,2#197808-198210

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iKR1#,RR1#,2#,TR1#197610-198210

9010110435

main90101-10435

9111171025

main91111-71025

9451201000

main94512-01000

9453101000

main94531-01000

9538104025

main95381-04025

23 parts on this diagram · 1 diagram in section
