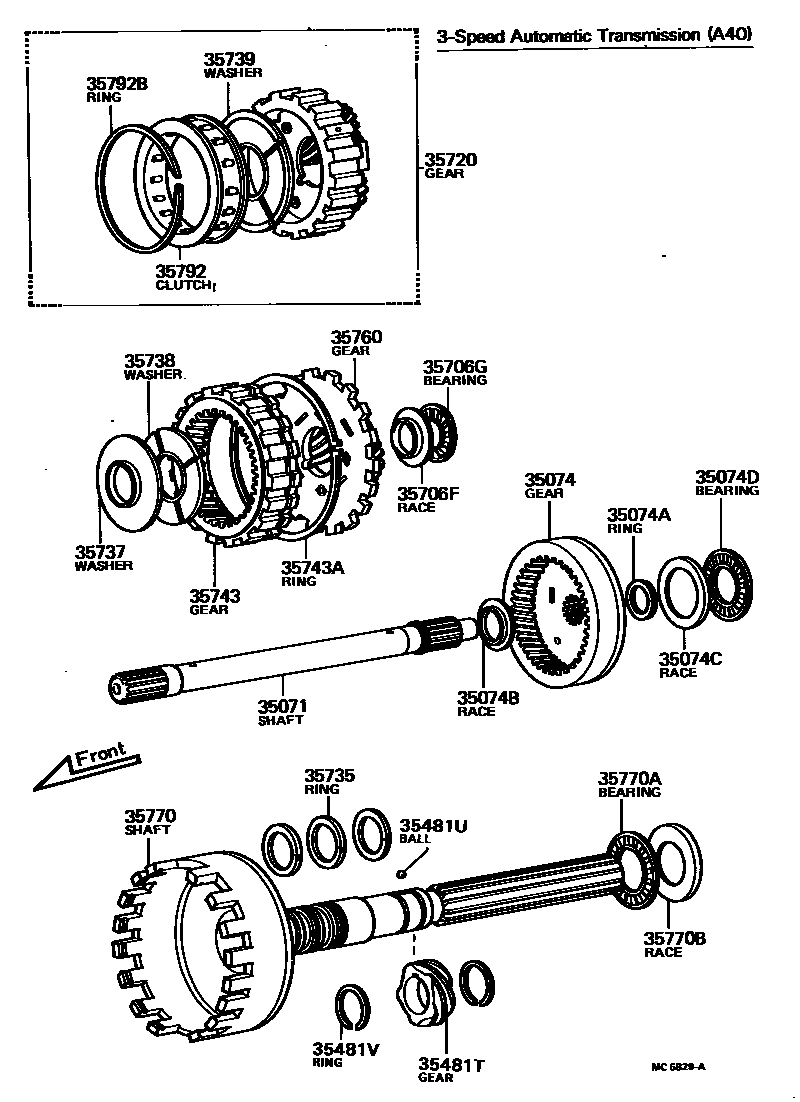

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-22011198101-198210

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-22010198101-198210

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037198101-198210

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050198101-198210

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020198101-198210

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014198101-198210

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-26010198101-198210

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004198101-198210

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009198101-198210

35706FRACE, THRUST BEARING (FOR SUN GEAR REAR)

main35789-22010198101-198210

35706GBEARING, THRUST (FOR SUN GEAR REAR)

main90374-23012198101-198210

35720GEAR ASSY, FRONT PLANETARY

main35720-22012198101-198210

35735RING, PLANETARY OUTPUT SNAP

main35735-22010198101-198210

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010198101-198210

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010198101-198210

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-22011198101-198210

35743GEAR, FRONT PLANETARY RING

main35743-22010198101-198210

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121198101-198210

35760GEAR ASSY, REAR PLANETARY

main35760-22020198101-198209

main35760-30010198209-198210

35770SHAFT ASSY, OUTPUT

main35770-14010198201-198210

main35770-22012198101-198201

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013198101-198210

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040198101-198210

35792CLUTCH, 1 WAY, NO.2

main35792-22020198101-198210

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148198101-198210

24 parts on this diagram · 1 diagram in section
