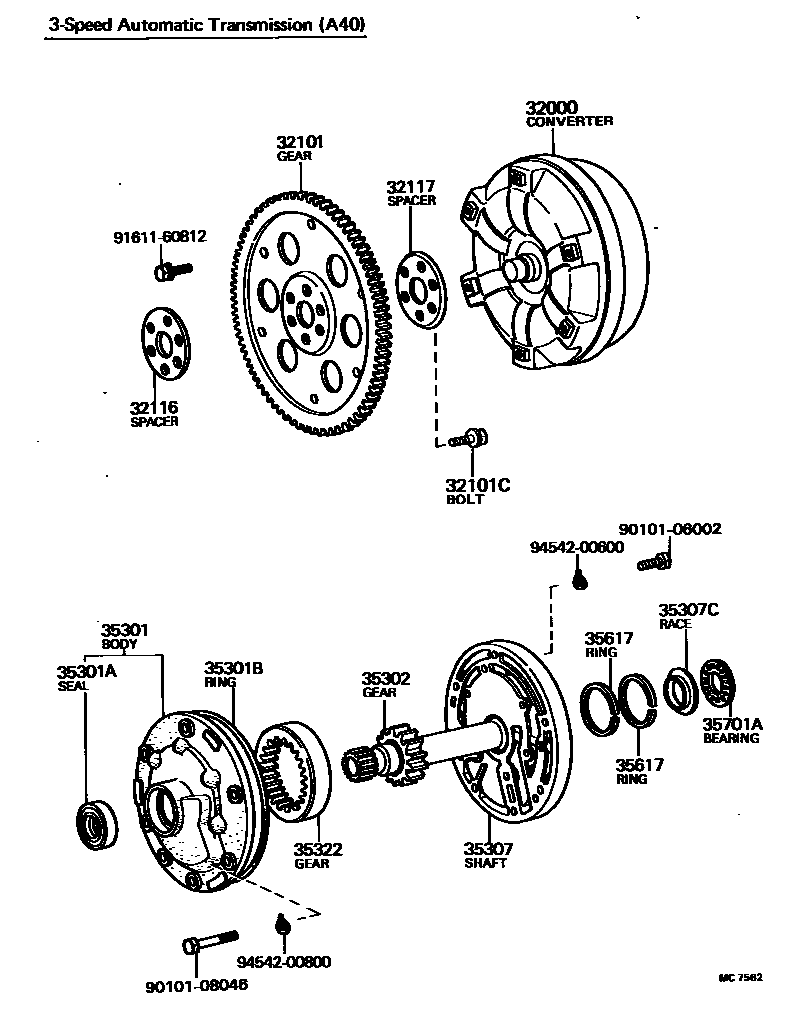

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-14040iTR15..3FC198101-198210

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iTR15..3FC198101-198210

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006×6iTR15..3FC198101-198108

main90105-10046×6iTR15..3FC198108-198210

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iTR15..3FC198101-198210

32117SPACER, DRIVE PLATE, REAR

main32117-14011iTR15..3FC198101-198210

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-30030iTR15..3FC198101-198210

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38129iTR15..3FC198101-198210

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iTR15..3FC198101-198210

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-22010iTR15..3FC198101-198210

35307SHAFT SUB-ASSY, STATOR

main35370-22010iTR15..3FC198101-198108

main35370-22011iTR15..3FC198108-198210

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iTR15..3FC198101-198210

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22010iTR15..3FC198101-198210

35617RING, CLUTCH DRUM OIL SEAL

main35617-22010×2iTR15..3FC198101-198108

main35617-22011×2iTR15..3FC198108-198210

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iTR15..3FC198101-198210

9010106002

main90101-06002

9010108046

main90101-08046

9161160812

main91611-60812

9454200600

main94542-00600

9454200800

main94542-00800

19 parts on this diagram · 1 diagram in section
