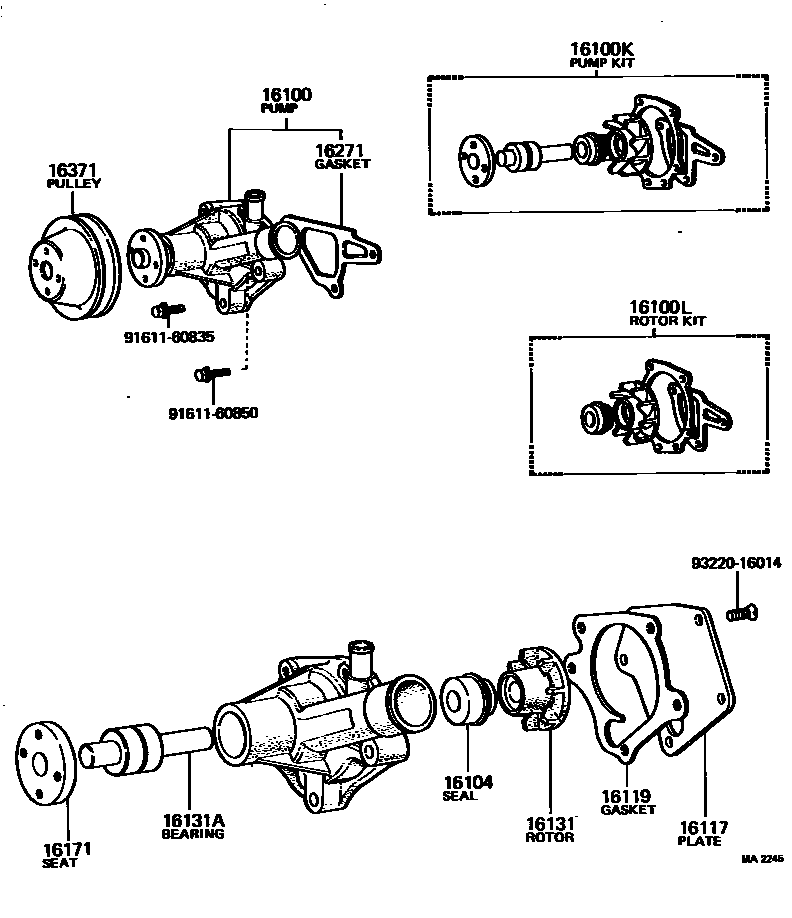

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-18010i2TJ..TR11197910-198210

main16100-19045i4KJ..KR12197910-198210

main16100-25012i12T,2TJ..TR10,11197610-197910

main16100-28020i13TU..TR15197808-198210

main16100-29027i3KJ..KR10197610-197707

main16100-29028i3KJ,4KJ..KR1#197707-197910

main16100-39116i12RJ..RR10,20197808-197911

main16100-39285i12RJ..RR11,21197911-198210

16100KPUMP KIT, WATER

main04161-13010i3KJ,4KJ..KR1#197707-198106

main04161-13011i4KJ..KR12198106-198210

main04161-24011i3KJ..KR10197610-197707

main04161-28010i13TU..TR15197808-198201

main04161-28012i13TU..TR15198201-198210

main04161-31023i12RJ..RR10,20197808-197911

16100LROTOR KIT, WATER PUMP

main04162-13010i3KJ,4KJ..KR1#197707-197910

main04162-13011i4KJ..KR12197910-198106

main04162-13012i4KJ..KR12198106-198210

main04162-22012i3KJ..KR10197610-197707

main04162-25012i12T,2TJ..TR1#197610-197706

main04162-28010i13TU..TR15197706-198201

main04162-28020i2TJ..TR11197910-198210

main04162-28021i13TU..TR15198201-198210

16104SEAL SET, WATER PUMP

main16104-22010i12T,2TJ..TR10,11197610-197910

main16104-41110i13TU..TR15197610-198210

main16104-41111i4KJ..KR12197910-198210

16117PLATE, WATER PUMP

main16117-13010i3KJ,4KJ..KR1#197707-198210

main16117-22011i3KJ..KR10197610-197707

main16117-31031i12RJ..RR1#,2#197808-198210

16119GASKET, WATER PUMP BODY

main16124-22010i3KJ,4KJ..KR1#197610-198106

main16124-22011i4KJ..KR12198106-198210

main16124-31031i12RJ..RR1#,2#197808-198210

16131ROTOR, WATER PUMP

main16131-13010i3KJ,4KJ..KR1#197707-198210

main16131-24030i3KJ..KR10197610-197707

main16131-25011i12T,2TJ..TR1#197610-197706

main16131-26010i12T,13TU,2TJ..TR1#197706-198210

main16131-31031i12RJ..RR10,20197808-197911

16131ABEARING, WATER PUMP

main16140-38011i13TU,2TJ..TR1#197910-198210

WPB16105BRS

main16140-38011i13TU..TR15197808-198210

WPB1610BBR

main90369-30003i12RJ..RR10,20197808-197911

WPB16124BR-1-R

main90369-30035i12T,2TJ..TR10,11197610-198210

WPB16124 RS

main90369-30063i3KJ,4KJ..KR1#197610-197910

WPB16105BRS

16171SEAT, WATER PUMP PULLEY

main16171-13020i4KJ..KR12197910-198210

main16171-24031i12RJ..RR10,20197610-197910

main16171-26021i13TU..TR15197808-198210

main16171-31030i12T,2TJ..TR10,11197610-197910

16271GASKET, WATER PUMP

main16129-25010i12T,13TU,2TJ..TR1#197610-197904

main16129-25012i13TU,2TJ..TR1#197904-198210

main16271-13020i4KJ..KR1#197812-198106

main16271-13021i4KJ..KR12198106-198210

main16271-22010i3KJ,4KJ..KR1#197610-197812

main16271-31010i12RJ..RR1#,2#197808-198210

16371PULLEY, FAN

main16173-28010i13TU..TR15197808-198210

main16371-13010i4KJ..KR12197910-198210

main16371-13020i4KJ..KR12197910-198210

W/COOLER

main16371-24040i3KJ,4KJ..KR1#197610-197910

W/COOLER

main16371-24050i3KJ,4KJ..KR1#197610-197910

main16371-25010i12T,2TJ..TR1#197610-197708

main16371-25020i12T,2TJ..TR1#197610-197708

W/COOLER

main16371-26010i12T,2TJ..TR10,11197708-197910

main16371-26020i12T,2TJ..TR10,11197708-197910

W/COOLER

main16371-31022i12RJ..RR10,20197808-197911

main16371-31030i12RJ..RR11,21197911-198210

9161160835

main91611-60835

9161160850

main91611-60850

9322016014

main93220-16014

14 parts on this diagram · 6 diagrams in section
