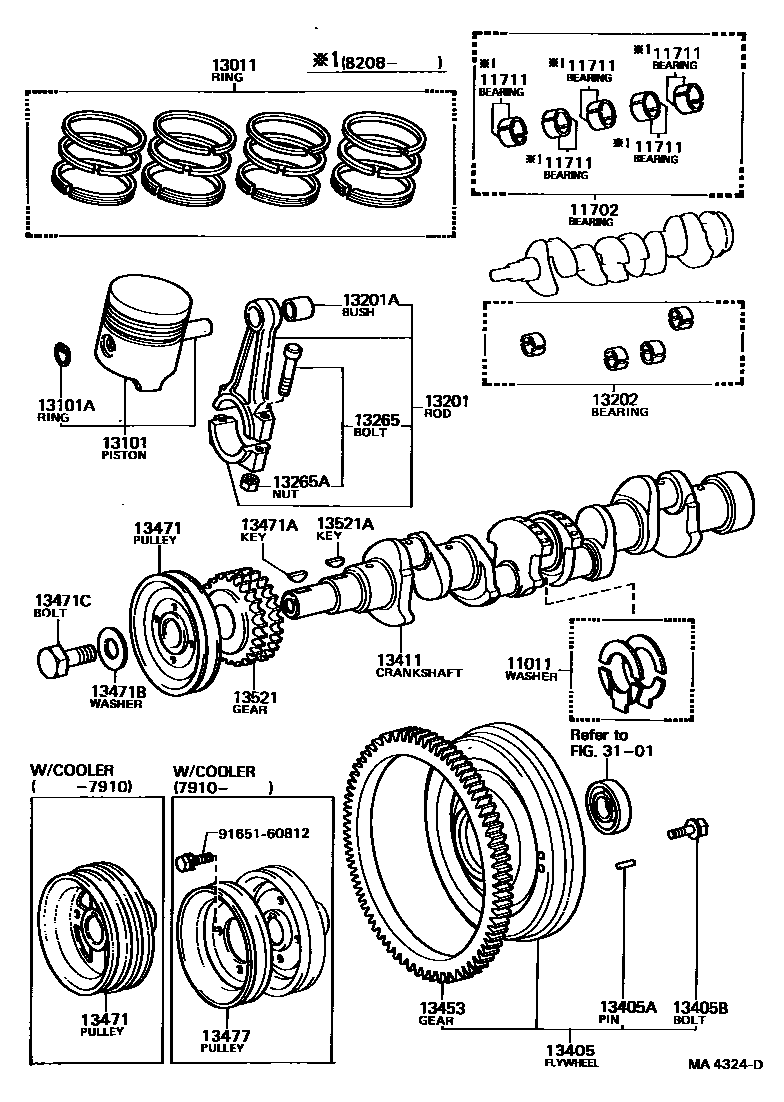

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
STD
STD
STD
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
11711BEARING, CRANKSHAFT
STD,MARK"3",MARK 3
STD,MARK"4",MARK 4
STD,MARK"5",MARK 5
STD,MARK"6",MARK 6
STD,MARK"7",MARK 7
13011RING SET, PISTON
STD
STD
STD
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD
STD
STD
O/S 0.25
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
STD
STD
STD
U/S 0.05
U/S 0.05
U/S 0.05
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.50
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
N=106
N=115
N=106
N=125
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13453GEAR, FLYWHEEL RING
N=106
N=115
N=125
13471PULLEY, CRANKSHAFT
W/COOLER
W/COOLER
W/COOLER
W/COOLER
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
W/COOLER
13477PULLEY, CRANKSHAFT, NO.2
W/COOLER
W/COOLER
W/COOLER
W/COOLER
W/COOLER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=25
N=25
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
3101CLUTCH & RELEASE FORK
9165160812
main91651-60812
25 parts on this diagram · 3 diagrams in section
